XC6217B18AGR-G
lmages are for reference only.XC6217B18AGR-G
IC REG LINEAR 1.85V 200MA USP-4D
Datasheet4-UDFN Exposed Pad
25,352 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA USP-4D
XC6217B18AGR-G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Torex Semiconductor Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.85V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.21V @ 100mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 8 µA |
| PSRR | 70dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | USP-4D |
| Base Product Number | XC6217 |
| Current - Supply (Max) | 50 µA |
| Product Attribute |  |
 |
 |
 |

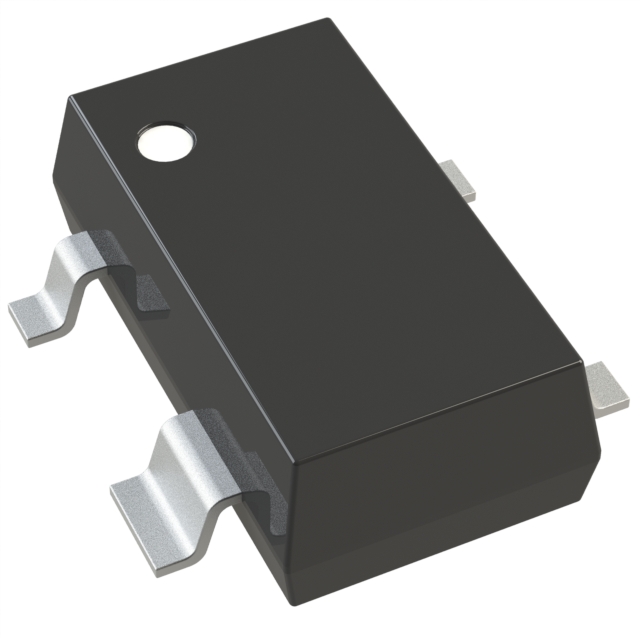

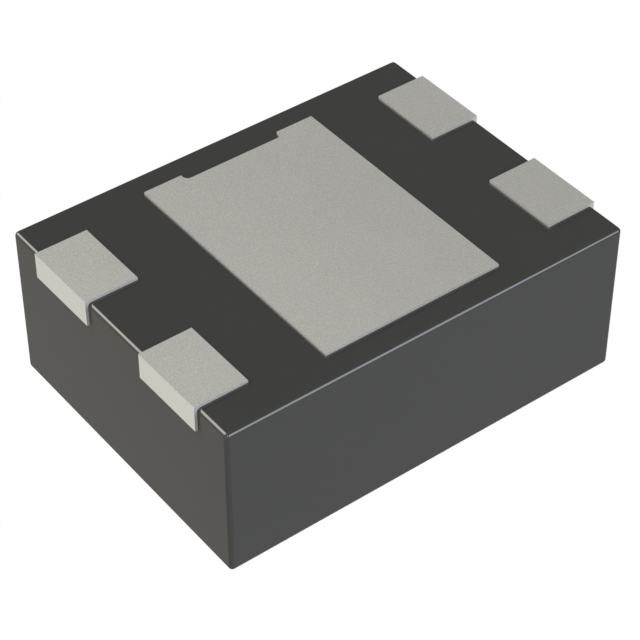

| Part Number | XC6217B1027R-G | XC6217B102GR-G | XC6217B102MR-G | XC6217B102NR-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 1V 200MA 4USPN | IC REG LINEAR 1V 200MA USP-4D | IC REG LINEAR 1V 200MA SOT25 | IC REG LINEAR 1V 200MA SSOT24 |
| Series | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
