XC6223N33BPR-G
lmages are for reference only.XC6223N33BPR-G
IC REG LIN 3.35V 300MA SOT89-5
DatasheetSOT-89-5/6
99,519 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-89-5
XC6223N33BPR-G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Torex Semiconductor Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.35V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.305V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 220 µA |
| PSRR | 80dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 |
| Base Product Number | XC6223 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

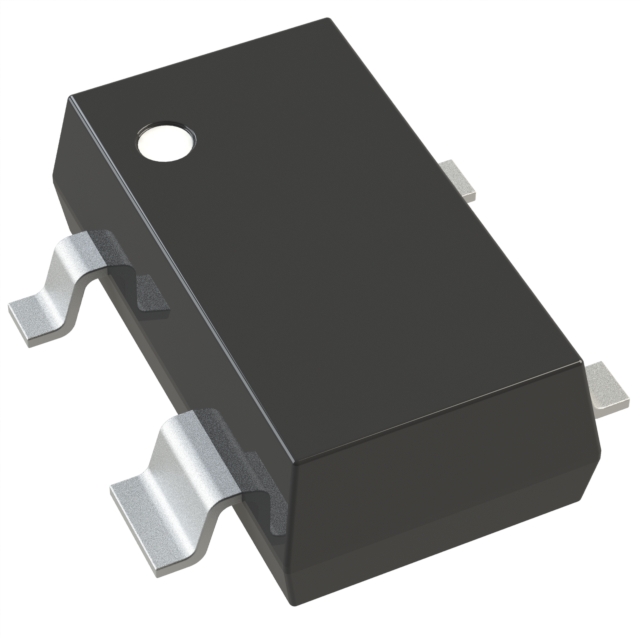

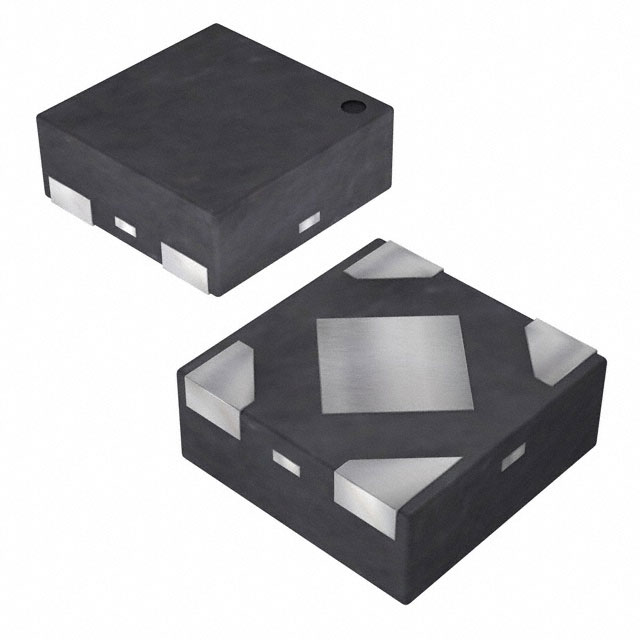

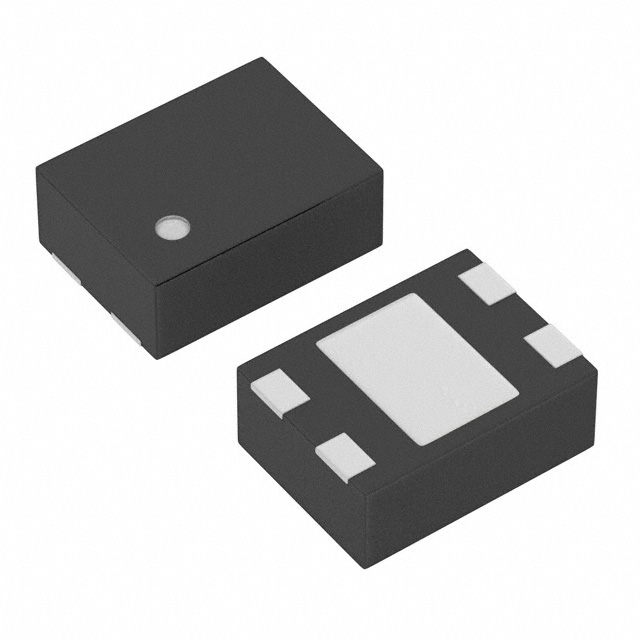

| Part Number | XC6223N3019R-G | XC6223N301GR-G | XC6223N301MR-G | XC6223N301NR-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 3V 300MA USPQ-4B03 | IC REG LINEAR 3V 300MA 4USP | IC REG LINEAR 3V 300MA SOT25 | IC REG LINEAR 3V 300MA SSOT24 |
| Series | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
