XC6233H241GR-G

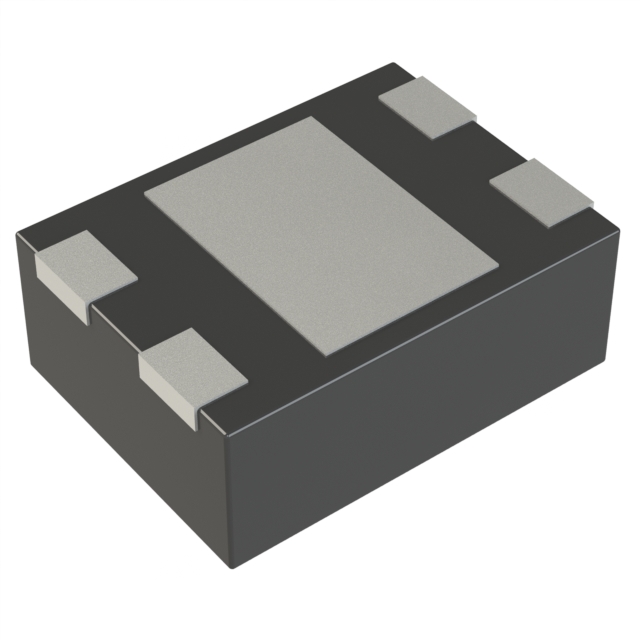

lmages are for reference only.XC6233H241GR-G
IC REG LINEAR 2.4V 200MA 4USP
Datasheet4-UDFN Exposed Pad
38,802 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 4-USP (1.2x1.6)
XC6233H241GR-G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Torex Semiconductor Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.4V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.52V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 87 µA |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | 4-USP (1.2x1.6) |
| Base Product Number | XC6233 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

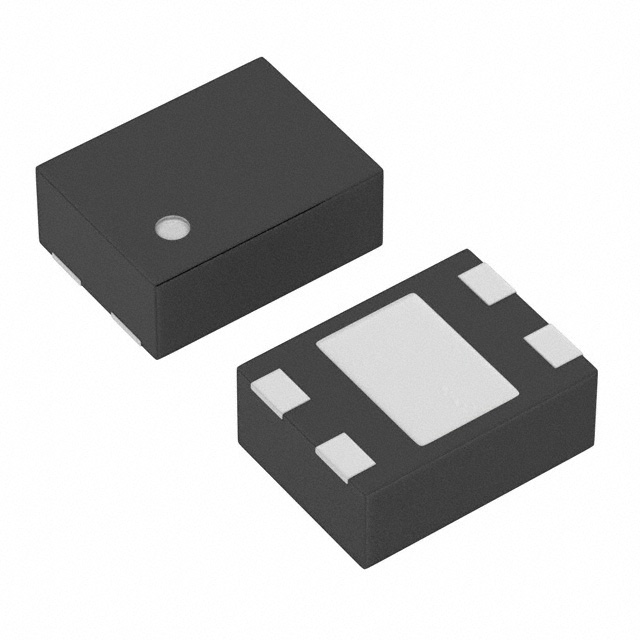

| Part Number | XC6233H2019R-G | XC6233H201GR-G | XC6233H201MR-G | XC6233H201NR-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 2V 200MA USPQ-4B04 | IC REG LINEAR 2V 200MA 4USP | IC REG LINEAR 2V 200MA SOT25 | IC REG LINEAR 2V 200MA SSOT24 |
| Series | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
