XC6501P21AHR-G

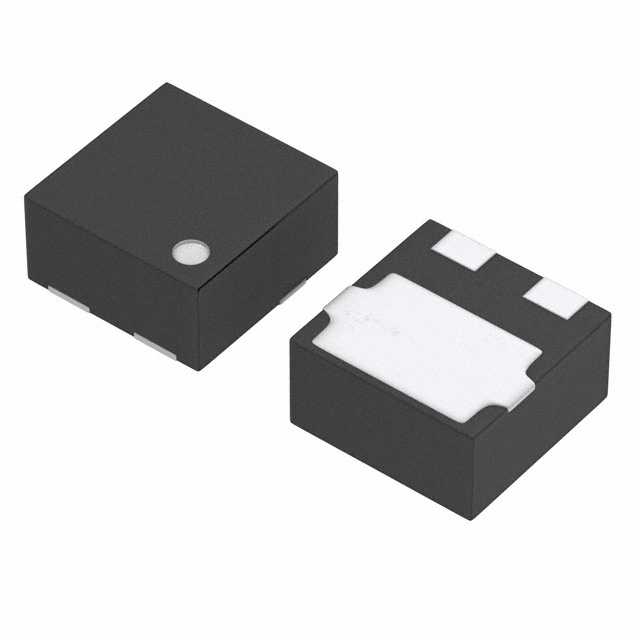

lmages are for reference only.XC6501P21AHR-G
IC REG LINEAR 2.15V 200MA 3USP
Datasheet2-SFN Exposed Pad
47,833 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 3-USP (1.2x1.2)
XC6501P21AHR-G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Torex Semiconductor Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.43V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 18 µA |
| PSRR | 50dB (1kHz) |
| Control Features | - |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SFN Exposed Pad |
| Supplier Device Package | 3-USP (1.2x1.2) |
| Base Product Number | XC6501 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | XC6501P201HR-G | XC6501P20AHR-G | XC6501P211HR-G | XC6501P221HR-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 2V 200MA 3USP | IC REG LINEAR 2.05V 200MA 3USP | IC REG LINEAR 2.1V 200MA 3USP | IC REG LINEAR 2.2V 200MA 3USP |
| Series | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
