XC9802B563DR-G

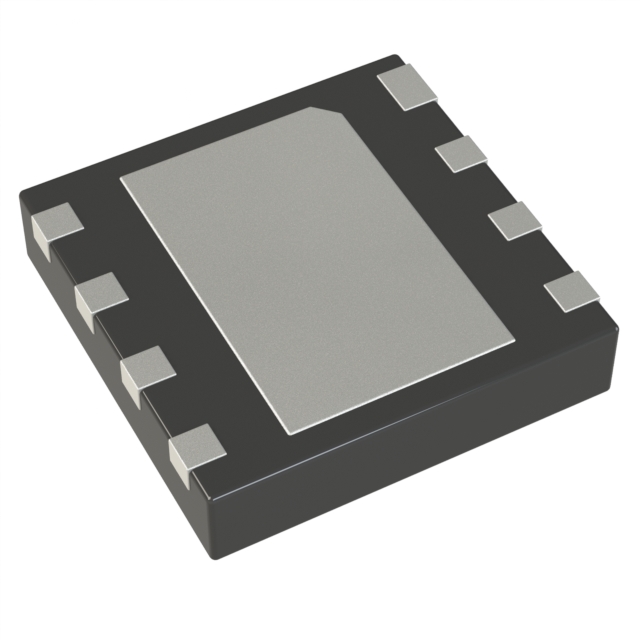

lmages are for reference only.XC9802B563DR-G
IC REG BOOST 5.6V 80MA 8USP
Datasheet8-UDFN Exposed Pad
33,550 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Boost Switching Regulator IC Positive Fixed 5.6V 1 Output 80mA 8-UDFN Exposed Pad
XC9802B563DR-G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Torex Semiconductor Ltd |
| Series | XC9802 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.8V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 5.6V |
| Voltage - Output (Max) | - |
| Current - Output | 80mA |
| Frequency - Switching | 300kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-UDFN Exposed Pad |
| Supplier Device Package | 8-USP (2.7x2.5) |
| Base Product Number | XC9802 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | XC9802B503DR-G | XC9802B503ER-G | XC9802B503KR-G | XC9802B513DR-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG BOOST 5V 80MA 8USP | IC REG BOOST 5V 80MA USP-8B05 | IC REG BOOST 5V 80MA 8MSOP | IC REG BOOST 5.1V 80MA 8USP |
| Series | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
