XCAL5010DN

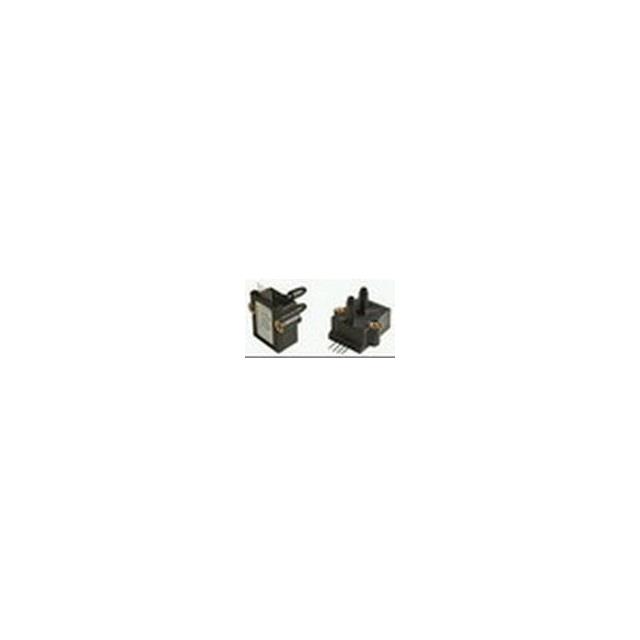

lmages are for reference only.XCAL5010DN
SENSOR 0.36PSID 0.19" 6.25V
Datasheet4-SIP Module
58,125 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 0.36PSI (2.49kPa) Differential Male - 0.19" (4.8mm) Tube, Dual 2.25 V ~ 6.25 V (5V) 4-SIP Module
XCAL5010DN
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | XCAL4 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | 0.36PSI (2.49kPa) |
| Output Type | Analog Voltage |
| Output | 2.25 V ~ 6.25 V (5V) |
| Accuracy | ±0.5% |
| Voltage - Supply | 3V ~ 16V |
| Port Size | Male - 0.19" (4.8mm) Tube, Dual |
| Port Style | Barbed |
| Features | Amplified Output |
| Termination Style | - |
| Maximum Pressure | 1.08PSI (7.48kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
 |
| Part Number | XCAL5010GN | XCAL4004DN | XCAL4010DN | XCAL4010GN |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS non-compliant |
| Description | SENSOR 0.36PSIG 0.19" 4.25V | SENSOR 0.15PSID 0.19" 6.25V | SENSOR 0.36PSID 0.19" 6.25V | XCAL4010GN |
| Series | XCAL4 | XCAL4 | XCAL4 | * |
| Packaging | Bulk | Bulk | Bulk | Bulk |
