XCL101A191ER-G

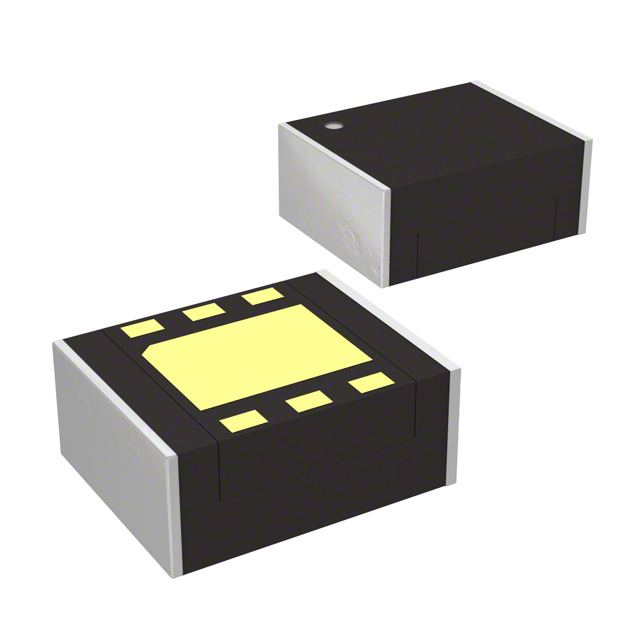

lmages are for reference only.XCL101A191ER-G
100MA INDUCTOR BUILT-IN STEP-UP
Datasheet8-TDFN Exposed Pad
55,002 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 1.9V 0.7V - 5.5V Input
XCL101A191ER-G
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Torex Semiconductor Ltd |
| Series | XCL101 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 0.7V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 1.9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | - |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TDFN Exposed Pad |
| Size / Dimension | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) |
| Supplier Device Package | CL-2025-02 |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | XCL101 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | XCL101A181ER-G | XCL101A201ER-G | XCL101A211ER-G | XCL101A221ER-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 1.8V 0.3W | DC DC CONVERTER 2V 0.3W | 100MA INDUCTOR BUILT-IN STEP-UP | 100MA INDUCTOR BUILT-IN STEP-UP |
| Series | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
