XCL206C303CR-G

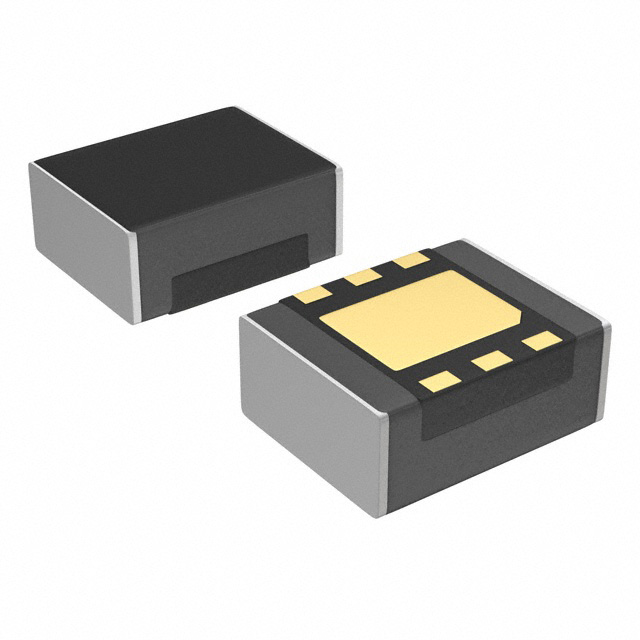

lmages are for reference only.XCL206C303CR-G
DC DC CONVERTER 3V 0.6A
Datasheet8-TDFN Exposed Pad
58,490 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 3V 600mA 2V - 6V Input
XCL206C303CR-G
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Torex Semiconductor Ltd |
| Series | XCL206 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2V |
| Voltage - Input (Max) | 6V |
| Voltage - Output 1 | 3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 600mA |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 90% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TDFN Exposed Pad |
| Size / Dimension | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) |
| Supplier Device Package | CL-2025-02 |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | XCL206 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | XCL206C313CR-G | XCL206C323CR-G | XCL206C333CR-G | XCL206C343CR-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 600MA INDUCTOR BUILT-IN PWM STEP | 600MA INDUCTOR BUILT-IN PWM STEP | DC DC CONVERTER 3.3V | 600MA INDUCTOR BUILT-IN PWM STEP |
| Series | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
