XCUZ15V,H3XHF(B

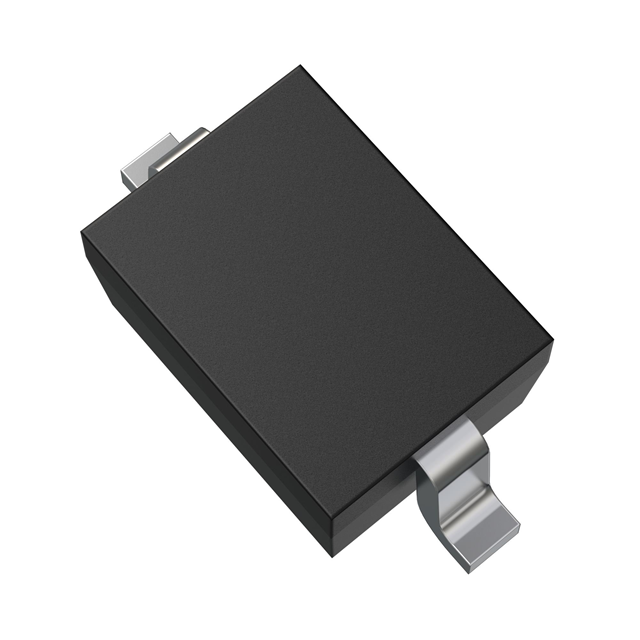

lmages are for reference only.XCUZ15V,H3XHF(B
15 V ZENER DIODEAEC-Q, SOD-323(U
DatasheetSC-76, SOD-323
62,448 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
24V (Typ) Clamp 5.6A (8/20µs) Ipp Tvs Diode Surface Mount USC
XCUZ15V,H3XHF(B
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 11V (Max) |
| Voltage - Breakdown (Min) | 13.8V |
| Voltage - Clamping (Max) @ Ipp | 24V (Typ) |
| Current - Peak Pulse (10/1000µs) | 5.6A (8/20µs) |
| Power - Peak Pulse | 200W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | 36pF @ 1MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | USC |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | XCUZ16V,H3XHF(B | XCUZ18V,H3XHF(B | P4SOD6.5CAX | ESD111B1W0201E6327XTSA1 |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | WeEn Semiconductors | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | |||
| Description | 16 V ZENER DIODEAEC-Q, SOD-323(U | 18 V ZENER DIODEAEC-Q, SOD-323(U | P4SOD6.5CA/SOD123/REEL 7" Q1/T1 | TVS DIODES SG-WLL-2 |
| Series | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | WeEn Semiconductors | Infineon Technologies |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
