XCX15ANC

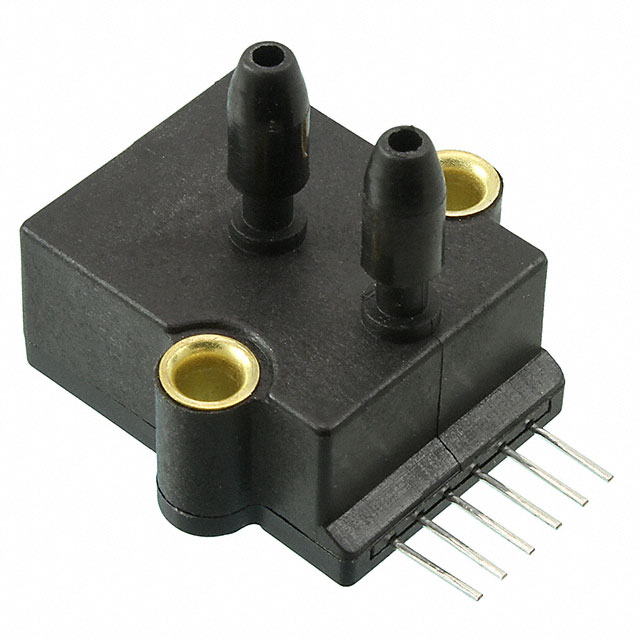

lmages are for reference only.XCX15ANC
SENSOR 15PSIA 0.19" .09V
Datasheet6-SIP Module
60,709 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.19" (4.8mm) Tube, Dual 0 mV ~ 90 mV (12V) 6-SIP Module
XCX15ANC
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | XCX |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Applications | Board Mount |
| Pressure Type | Absolute |
| Operating Pressure | 15PSI (103.42kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 90 mV (12V) |
| Accuracy | - |
| Voltage - Supply | 3V ~ 16V |
| Port Size | Male - 0.19" (4.8mm) Tube, Dual |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | - |
| Maximum Pressure | 45PSI (310.26kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | XCX15ANH | XCX150DNC | XCX15DNC | XCX15DNC |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 15PSIA 0.19" .09V | SENSOR 150PSID 0.19" .09V | SENSOR 15PSID 0.19" .09V | SENSOR 15PSID 0.19" .09V |
| Series | XCX | XCX | XCX | XCX |
| Packaging | Bulk | Bulk | Bulk | Bulk |
