Product CatalogPart Number
XDMR14A4-1A
Manufacturer
SunLEDDescription
DISPLAY 14.2MM RED 4DIGIT CA
Datasheet
DatasheetPackage
12-DIP Module
In Stock
16,650 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XDMR14A4-1A
XDMR14A4-1A
lmages are for reference only.Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment Clock 4 Character Common Anode 1.8V 10mA 0.748" H x 1.980" W x 0.329" D (19.00mm x 50.30mm x 8.35mm) 12-DIP Module
Quick Inquiry
XDMR14A4-1A
Specifications
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | SunLED |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 4 |
| Size / Dimension | 0.748" H x 1.980" W x 0.329" D (19.00mm x 50.30mm x 8.35mm) |
| Digit/Alpha Size | 0.56" (14.20mm) |
| Display Type | 7-Segment Clock |
| Common Pin | Common Anode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Current - Test | 10mA |
| Millicandela Rating | 39.99mcd |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 75mW |
| Package / Case | 12-DIP Module |
| Base Product Number | XDMR14 |
| Display Format | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

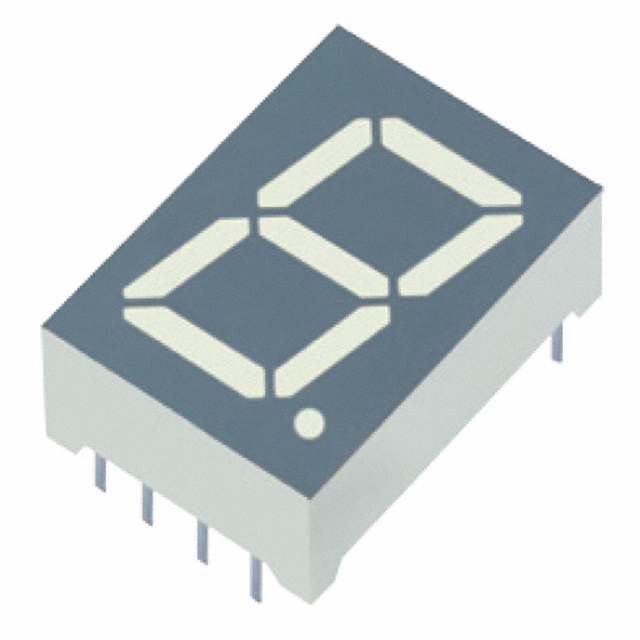

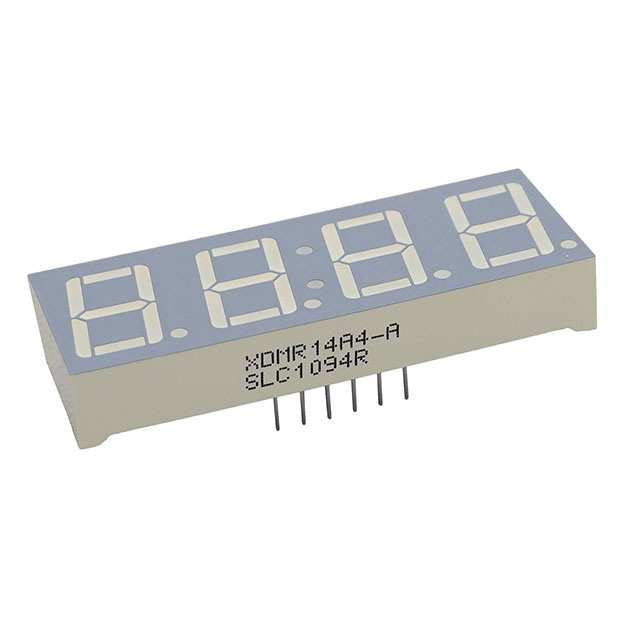

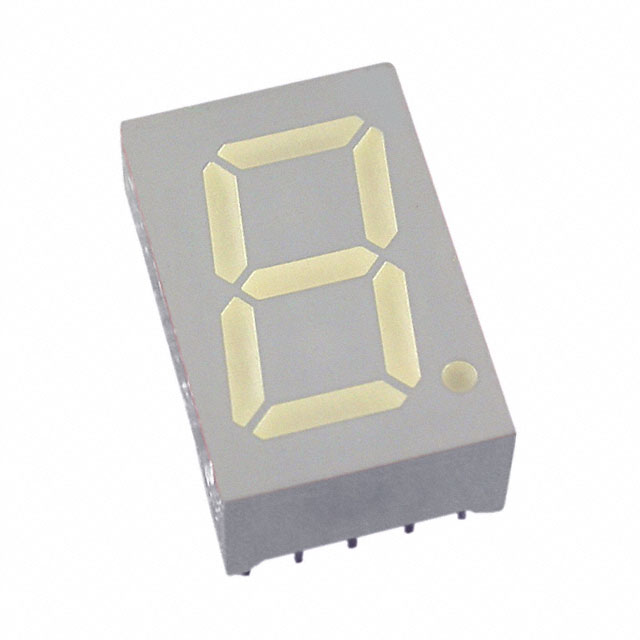

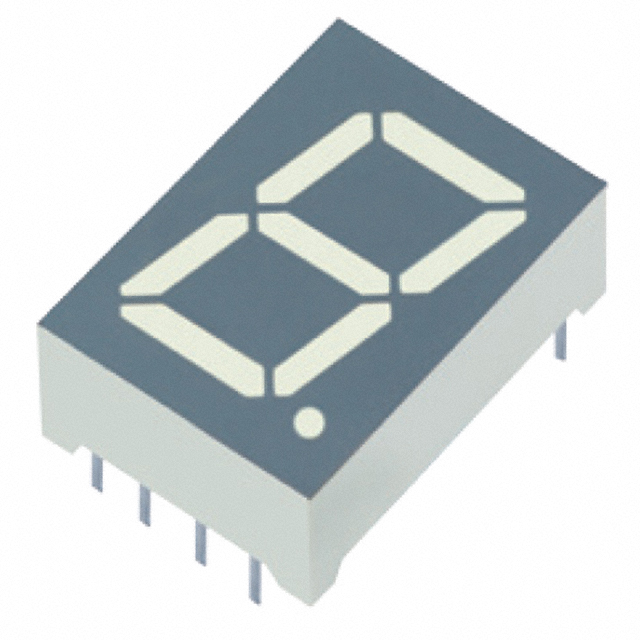

| Part Number | XDMR14A4-A | XDMR13A | XDMR13C | XDMR14A |
| Manufacturer | SunLED | SunLED | SunLED | SunLED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 14.2MM RED 4DIGIT CA | DISPLAY 7SEG 0.52" SGL RED 10DIP | DISPLAY 7SEG 0.52" SGL RED 10DIP | DISPLAY 7SEG 0.56" SGL RED 10DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
