XEV30-200
lmages are for reference only.XEV30-200
30MM EV FUSE
DatasheetCylindrical, Blade Terminal (Bolt)
17,197 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
200A 500 VDC Fuse Cartridge Bolt Mount
XEV30-200
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Bussmann Electrical Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 200A |
| Voltage Rating - AC | - |
| Response Time | Fast Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | - |
| Approval Agency | - |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 20kA |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 1.181" Dia x 2.087" L (30.00mm x 53.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 500 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | 3211.0 |
| DC Cold Resistance | - |
| Product Attribute | |
|
|
 |

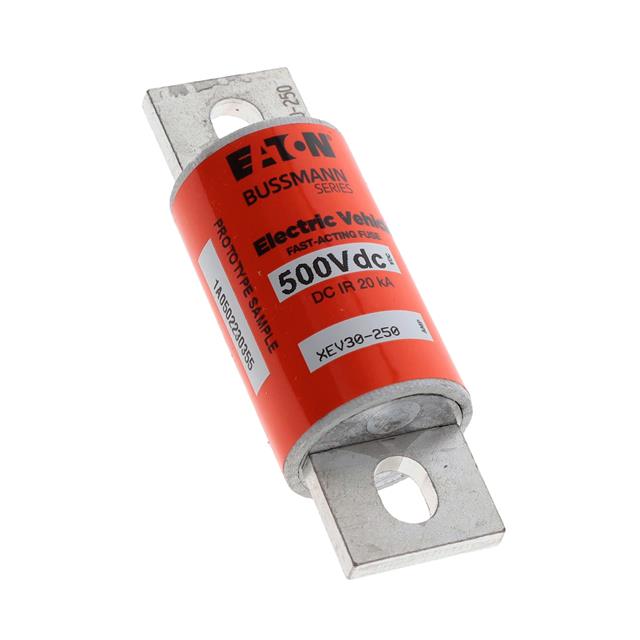

| Part Number | XEV30-200-SP | XEV30-225 | XEV30-225-SP | XEV30-250-SP |
| Manufacturer | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| RoHS Status | RoHS non-compliant | |||
| Description | 30MM EV FUSE SAMPLE | 30MM EV FUSE | 30MM EV FUSE SAMPLE | 30MM EV FUSE SAMPLE |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
