XF2J282411AR100BYOMZ
lmages are for reference only.XF2J282411AR100BYOMZ

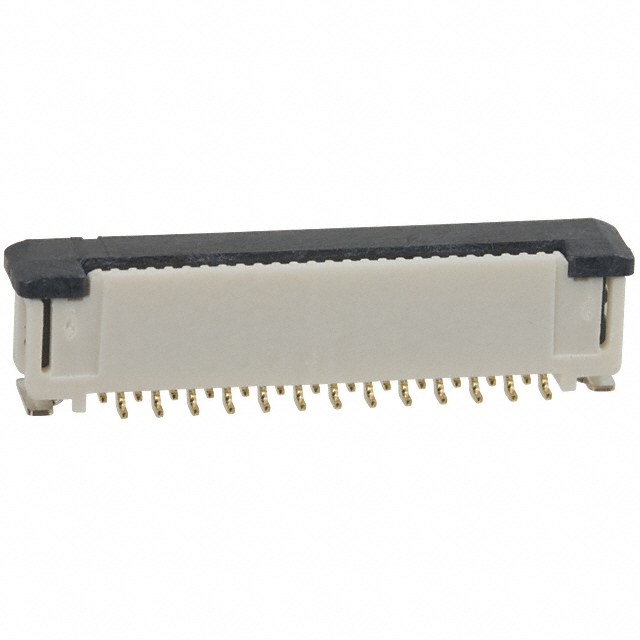

CONN FPC VERT 28POS 0.5MM SMD
Datasheet-
29,476 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
28 Position FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
XF2J282411AR100BYOMZ
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | XF2J |
| Packaging | Bulk |
| RoHS Status | |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 28 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.163" (4.15mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Actuator Material | - |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -30°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | 5.90µin (0.150µm) |
| Housing Color | Natural |
| Actuator Color | Black |
| Mating Cycles | 30 |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | XF2J202411AR100BYOMZ | XF2J202412AR100BYOMZ | XF2J222412AR100BYOMZ | XF2J242412AR100BYOMZ |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | ||||

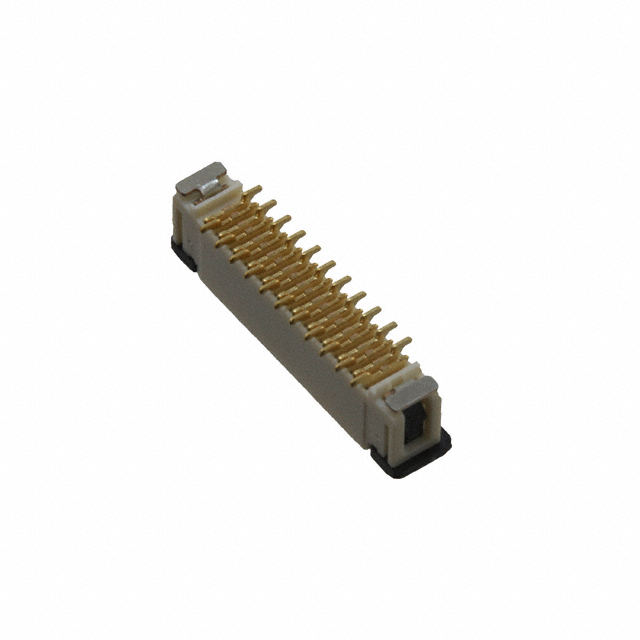

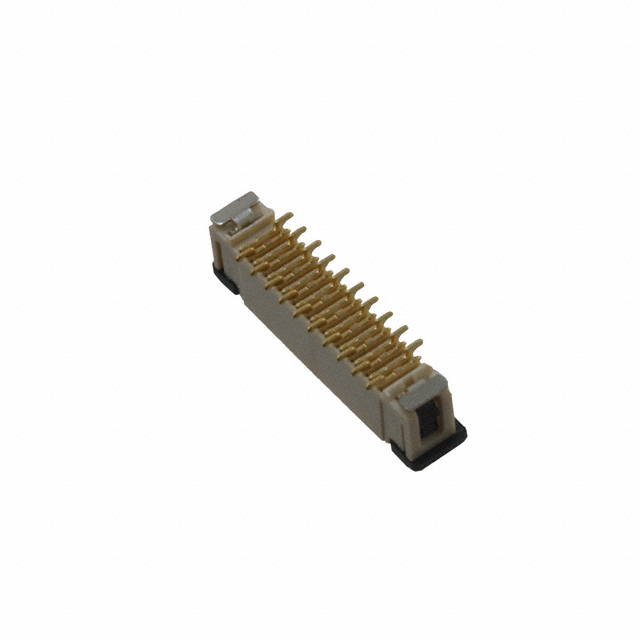

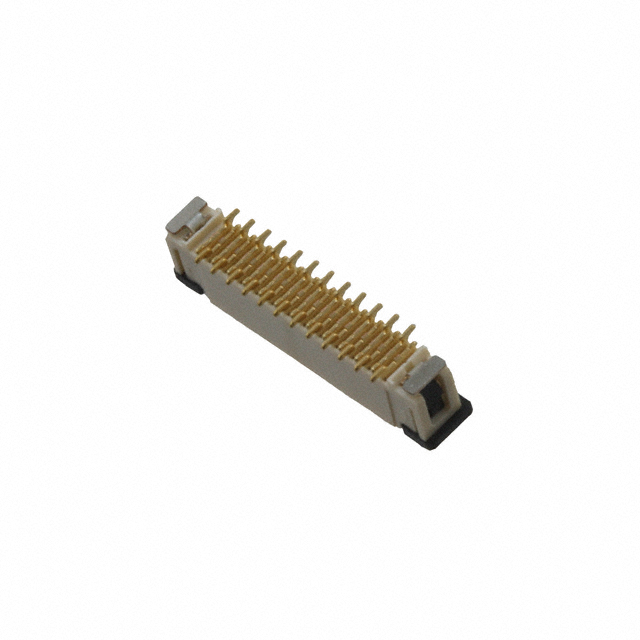

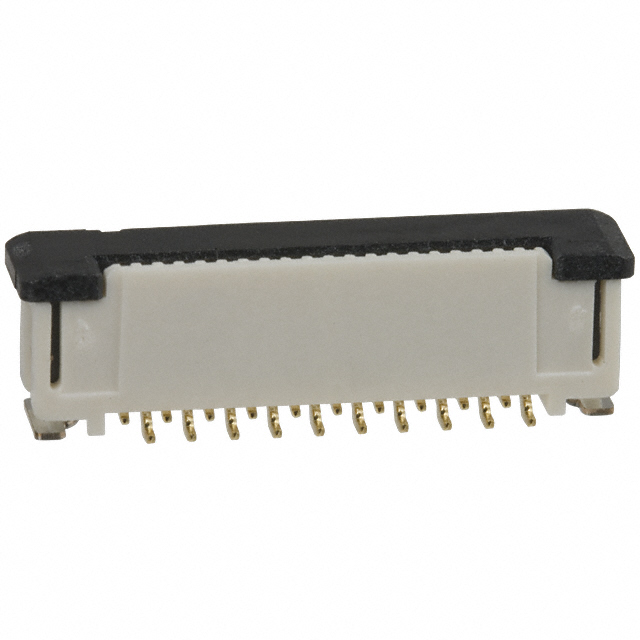

| Description | CONN FPC VERT 20POS 0.5MM SMD | CONN FPC VERT 20POS 0.5MM SMD | CONN FPC VERT 22POS 0.5MM SMD | CONN FPC VERT 24POS 0.5MM SMD |
| Series | XF2J | XF2J | XF2J | XF2J |
| Packaging | Bulk | Bulk | Bulk | Bulk |
