Product CatalogPart Number
XGL4012-381MEC
Manufacturer
CoilcraftDescription
FIXED IND 380NH 12A 10.9MOHM SM
Datasheet
DatasheetPackage
1616 (4040 Metric)
In Stock
53,628 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XGL4012-381MEC
XGL4012-381MEC
lmages are for reference only.Payment Methods
Delivery Services
380 nH Shielded Molded Inductor 12 A 10.9mOhm Max 1616 (4040 Metric)
Quick Inquiry
XGL4012-381MEC
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | XGL4012 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Metal Composite |
| Inductance | 380 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12 A |
| Current - Saturation (Isat) | 10.7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 10.9mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 110MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1616 (4040 Metric) |
| Supplier Device Package | 1616 |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | XGL4012-101MEC | XGL4012-102MEC | XGL4012-122MEC | XGL4012-221MEC |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100NH 19.7A 2.9MOHM SM | FIXED IND 1UH 7A 29.9MOHM SM | FIXED IND 1.2UH 6.6A 35.3MOHM SM | FIXED IND 220NH 14.7A 6MOHM SM |
| Series | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
XGL4012-101MEC
Coilcraft
XGL4012-102MEC
Coilcraft
XGL4012-122MEC
Coilcraft
XGL4012-221MEC
Coilcraft
XGL4012-451MEC
Coilcraft
XGL4012-601MEC
Coilcraft
XGL4015-101MEC
Coilcraft
XGL4015-102MEC
Coilcraft
XGL4015-121MEC
Coilcraft
XGL4015-152MEC
Coilcraft
XGL4015-221MEC
Coilcraft
XGL4015-222MEC
Coilcraft
XGL4015-272MEC
Coilcraft
XGL4015-301MEC
Coilcraft
XGL4015-471MEC
Coilcraft
XGL4015-521MEC
Coilcraft
XGL4015-681MEC
Coilcraft

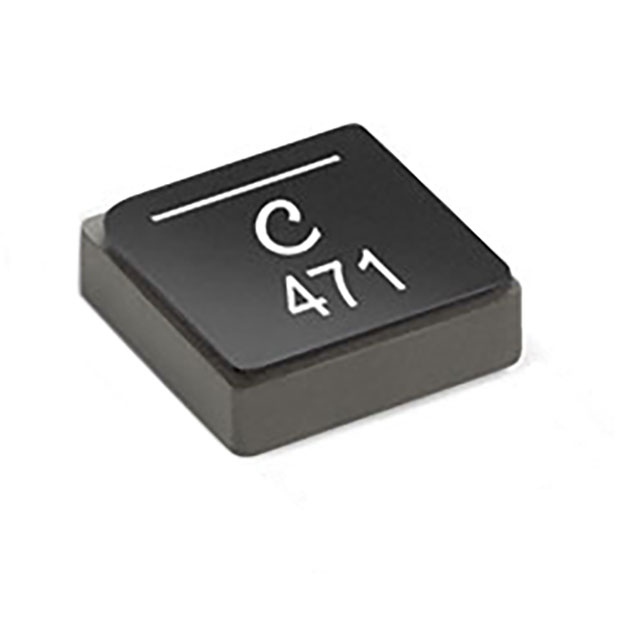

XGL4015-821MEC
