Product CatalogPart Number
XJ8B-1611
Manufacturer
Omron Electronics Inc-EMC DivDescription
CONN HEADER VERT 16POS 2.54MM
Datasheet
DatasheetPackage
-
In Stock
79,332 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XJ8B-1611
XJ8B-1611
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 16 position 0.100" (2.54mm)
Quick Inquiry
XJ8B-1611
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | XJ8 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 16 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.169" (4.30mm) |
| Contact Length - Post | 0.110" (2.79mm) |
| Overall Contact Length | 0.339" (8.60mm) |
| Insulation Height | 0.059" (1.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Contact Finish - Post | - |
| Contact Material | Brass, Nickel |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A |
| Voltage Rating | 300V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | XJ8B |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | XJ8B-0211 | XJ8B-0311 | XJ8B-0411 | XJ8C-0211 |
| Manufacturer | Omron Automation and Safety | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

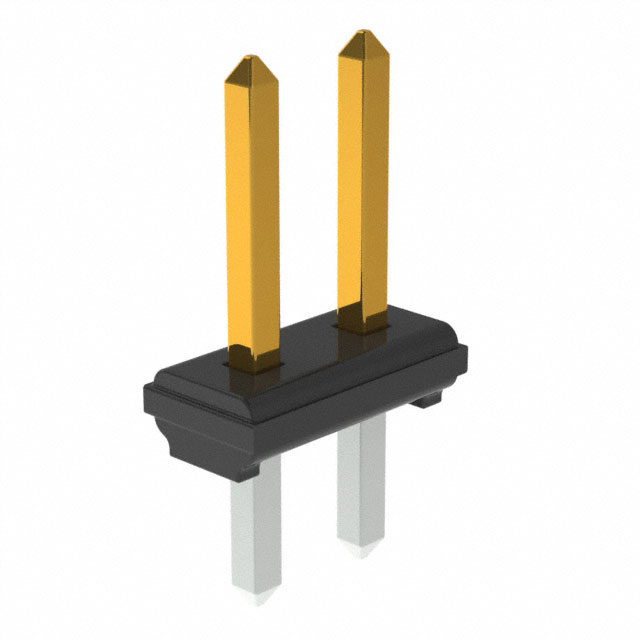

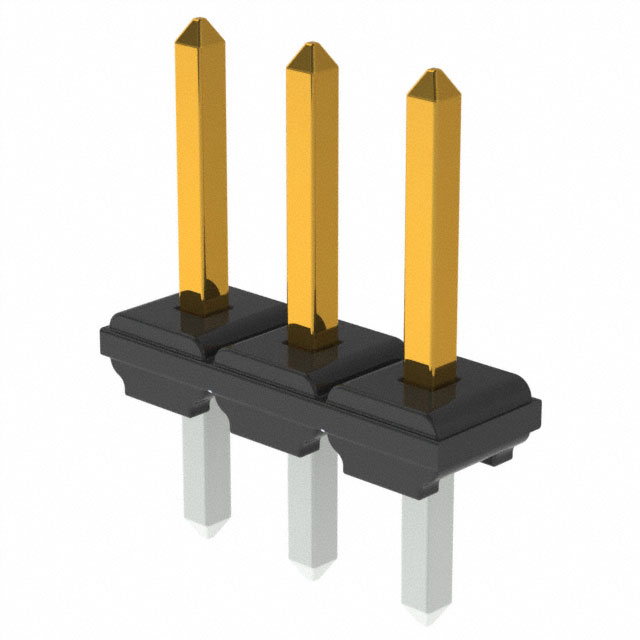

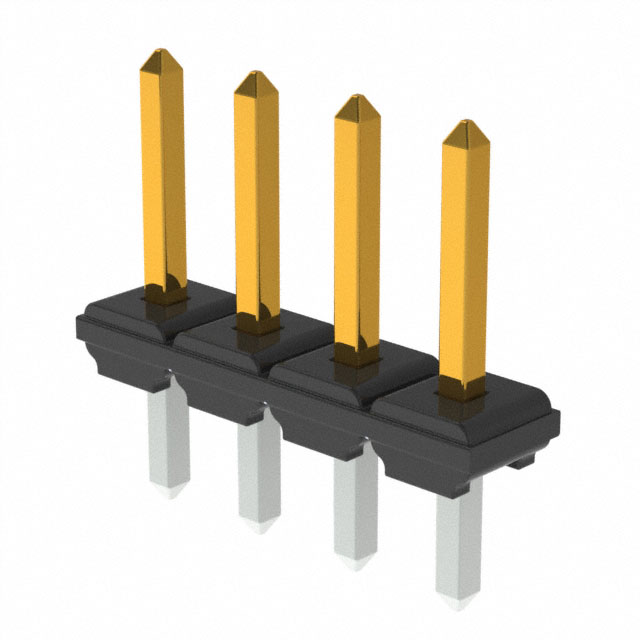

| Description | CONN HEADER VERT 2POS 2.54MM | CONN HEADER VERT 3POS 2.54MM | CONN HEADER VERT 4POS 2.54MM | CONN HEADER VERT 2POS |
