XR16C854CJTR-F
lmages are for reference only.XR16C854CJTR-F
IC UART QUAD 2.97V - 5.5V 68PLCC
Datasheet68-LCC (J-Lead)
87,111 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
UART IC 4, QUART Channel RS232, RS485 128 Byte 68-PLCC (24.23x24.23)
XR16C854CJTR-F
| Category | Integrated Circuits (ICs) - Interface - UARTs Universal Asynchronous Receiver Transmitter |
| Manufacturer | MaxLinear, Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Features | Internal Oscillator, Timer/Counter |
| Number of Channels | 4, QUART |
| FIFO's | 128 Byte |
| Protocol | RS232, RS485 |
| Data Rate (Max) | 2Mbps |
| Voltage - Supply | 2.97V ~ 5.5V |
| With Auto Flow Control | Yes |
| With IrDA Encoder/Decoder | Yes |
| With False Start Bit Detection | Yes |
| With Modem Control | Yes |
| Mounting Type | Surface Mount |
| Package / Case | 68-LCC (J-Lead) |
| Supplier Device Package | 68-PLCC (24.23x24.23) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

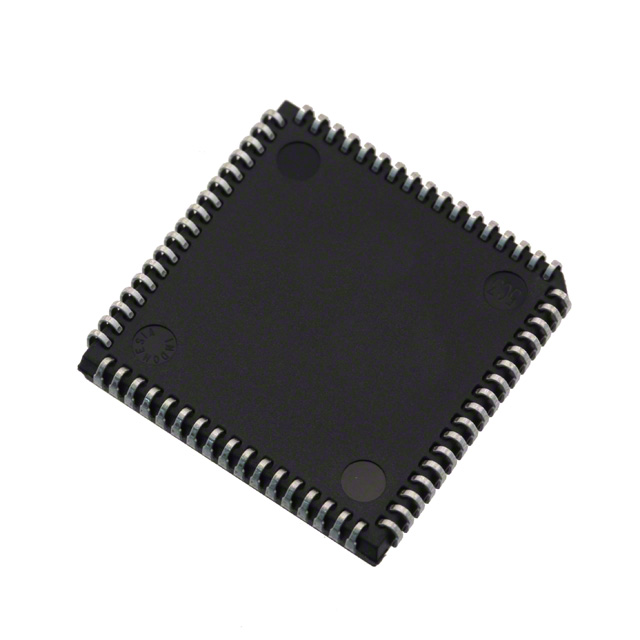

| Part Number | XR16C854CJ-F | XR16C854CQ | XR16C854CQ-F | XR16C854CQTR-F |
| Manufacturer | MaxLinear, Inc. | Sipex | MaxLinear, Inc. | MaxLinear, Inc. |
| RoHS Status | RoHS Compliant | RoHS non-compliant | RoHS Compliant | |
| Description | IC UART FIFO 128B QUAD 68PLCC | QUAD UART WITH FIFO | IC UART FIFO 128B QUAD 100QFP | IC UART FIFO 128B QUAD 100QFP |
| Series | - | * | - | - |
| Packaging | Tube | Bulk | Tray | Tape & Reel (TR) |
