XRP7704ILB-1002-F

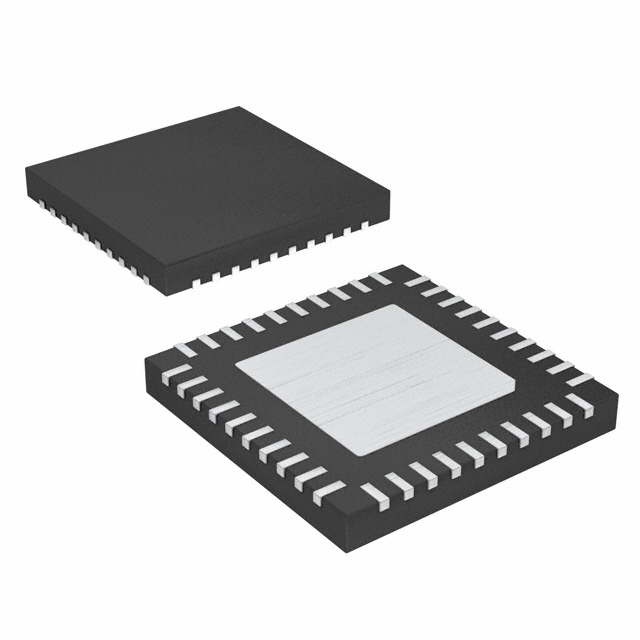

lmages are for reference only.XRP7704ILB-1002-F
IC PMIC PWM DC-DC QUAD 40QFN
Datasheet40-WFQFN Exposed Pad
20,870 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Regulator Positive Output Step-Down I2C DC-DC Controller IC 40-TQFN (6x6)
XRP7704ILB-1002-F
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | MaxLinear, Inc. |
| Series | - |
| Packaging | Tray |
| RoHS Status | |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 4 |
| Output Phases | 4 |
| Voltage - Supply (Vcc/Vdd) | 6.5V ~ 20V |
| Frequency - Switching | 300kHz ~ 1.5MHz |
| Duty Cycle (Max) | 85% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | I2C |
| Control Features | Enable |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-TQFN (6x6) |
| Base Product Number | XRP7704 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
|
| Part Number | XRP7704ILB-1003-F | XRP7704ILB-F | XRP7704ILBTR-1002-F | XRP7704ILBTR-1003-F |
| Manufacturer | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. |
| RoHS Status | ||||
| Description | IC PMIC PWM DC-DC QUAD 40QFN | IC REG CTRLR BUCK I2C 40TQFN | IC PMIC PWM DC-DC QUAD 40QFN | IC PMIC PWM DC-DC QUAD 40QFN |
| Series | - | - | - | - |
| Packaging | Tray | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
