Product CatalogPart Number
XS3M276800L216
Manufacturer
NextGen ComponentsDescription
3.2768MHz 49S 30ppm 16pF
Datasheet
DatasheetPackage
HC-49/US
In Stock
12,797 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XS3M276800L216
XS3M276800L216

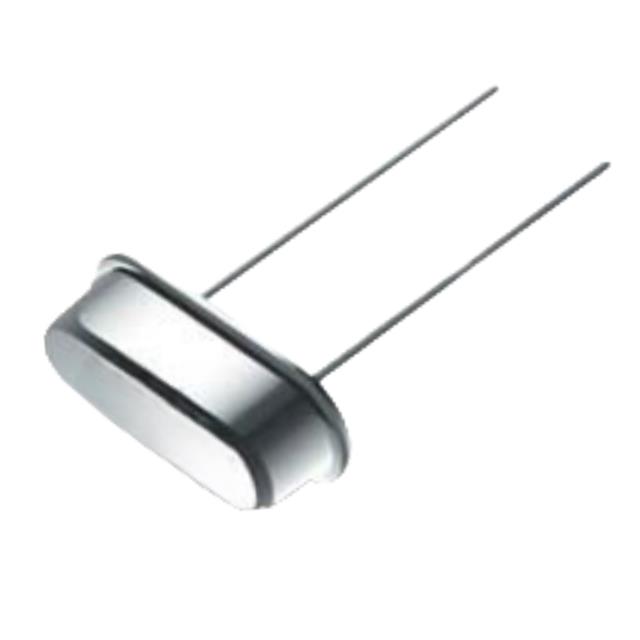

lmages are for reference only.Payment Methods
Delivery Services
3.2768 MHz ±30ppm Crystal 16pF 200 Ohms HC-49/US
Quick Inquiry
XS3M276800L216
Specifications
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | NextGen Components |
| Series | CS |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | MHz Crystal |
| Frequency | 3.2768 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±30ppm |
| Load Capacitance | 16pF |
| ESR (Equivalent Series Resistance) | 200 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -20°C ~ 70°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | HC-49/US |
| Size / Dimension | 0.435" L x 0.183" W (11.05mm x 4.65mm) |
| Height - Seated (Max) | 0.161" (4.10mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | XS3M276800L212 | XS3M276800L212 | XS3M276800L212 | XS3M276800L216 |
| Manufacturer | NextGen Components | NextGen Components | NextGen Components | NextGen Components |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 3.2768MHz 49S 30ppm 12pF | 3.2768MHz 49S 30ppm 12pF | 3.2768MHz 49S 30ppm 12pF | 3.2768MHz 49S 30ppm 16pF |
| Series | NextGen Components | NextGen Components | NextGen Components | NextGen Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
