Product CatalogPart Number
XZM2CRKM2DG45WT-9
Manufacturer
SunLEDDescription
LED GREEN/RED CLEAR 4PLCC SMD
Datasheet
DatasheetPackage
4-PLCC
In Stock
27,506 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XZM2CRKM2DG45WT-9
XZM2CRKM2DG45WT-9
lmages are for reference only.Payment Methods
Delivery Services
Green, Red 525nm Green, 625nm Red LED Indication - Discrete 3.2V Green, 2.2V Red 4-PLCC
Quick Inquiry
XZM2CRKM2DG45WT-9
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | SunLED |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 447mcd Green, 1590mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 3.2V Green, 2.2V Red |
| Current - Test | 20mA Blue, 20mA Green |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 525nm Green, 625nm Red |
| Wavelength - Peak | 520nm Green, 640nm Red |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |
| Base Product Number | XZM2CRK |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

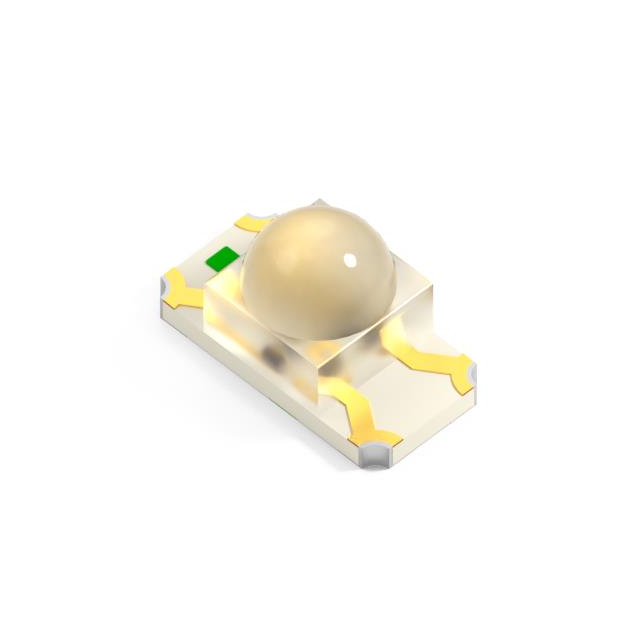

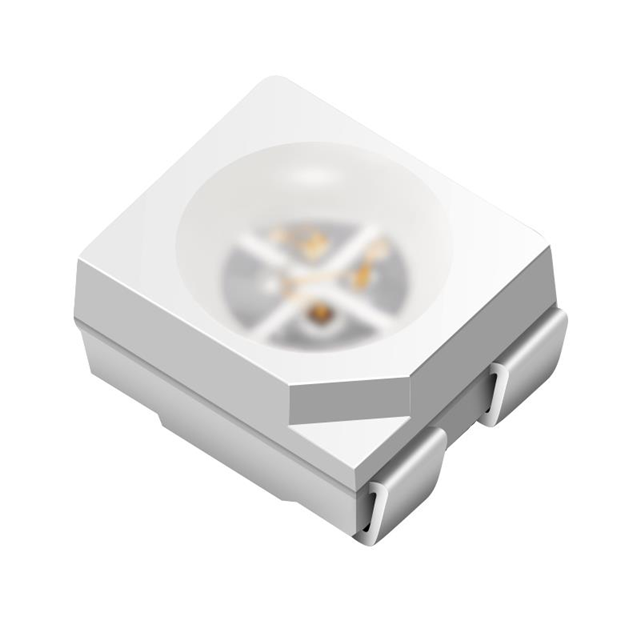

| Part Number | XZM2CRKM2DG55W-8 | XZM2CRKM2DGFBB45SCCB | XZM2CRK105S | XZM2CRK168WA |
| Manufacturer | SunLED | SunLED | SunLED | SunLED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN/RED CLEAR 4SMD | LED RGB CLEAR 4PLCC SMD | LED RED CLEAR 2SMD | LED RED CLEAR CHIP SMD R/A |
| Series | SunLED | SunLED | SunLED | SunLED |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
