Product CatalogPart Number
XZMDKDGCBD110W
Manufacturer
SunLEDDescription
LED RGB CLEAR SMD
Datasheet
DatasheetPackage
4-SMD, No Lead
In Stock
90,220 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XZMDKDGCBD110W
XZMDKDGCBD110W
lmages are for reference only.Payment Methods
Delivery Services
Red, Green, Blue (RGB) 630nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 1.95V Red, 3.3V Green, 3.3V Blue 4-SMD, No Lead
Quick Inquiry
XZMDKDGCBD110W
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | SunLED |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 79mcd Red, 297mcd Green, 69mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 1.95V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 630nm Red, 525nm Green, 465nm Blue |
| Wavelength - Peak | 645nm Red, 515nm Green, 460nm Blue |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | SMD |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Height (Max) | 0.70mm |
| Base Product Number | XZMDKDGCBD110 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

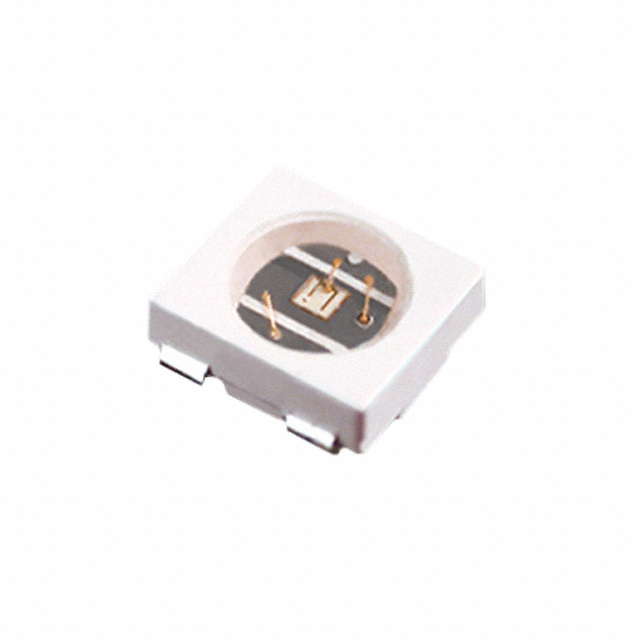

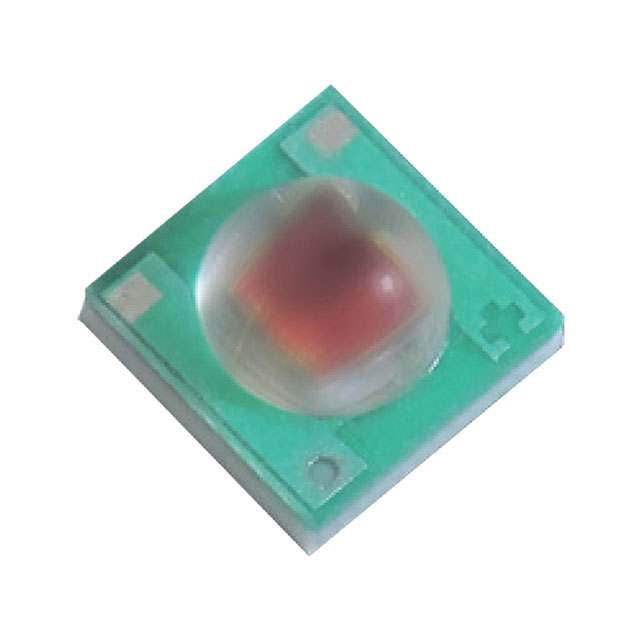

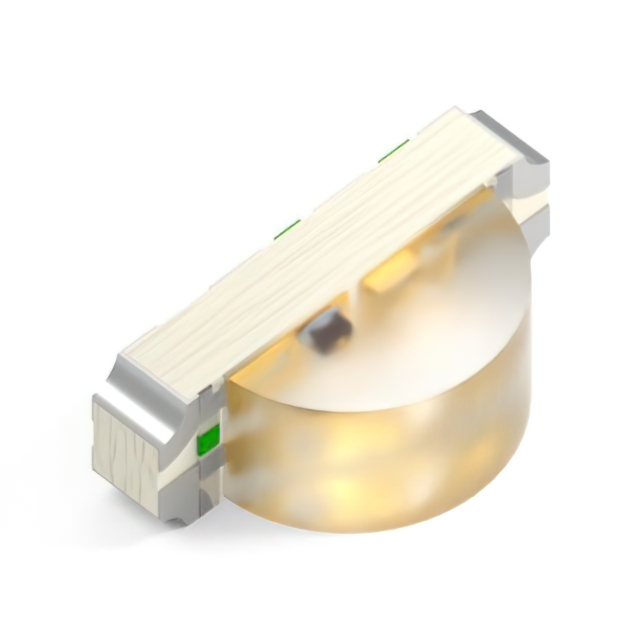

| Part Number | XZMDKDGCBD56W | XZMD20X92S-4 | XZMD96FS50MAV | XZMDH160S |
| Manufacturer | SunLED | SunLED | SunLED | SunLED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB CLEAR CHIP SMD R/A | LED RED CLEAR CHIP SMD | LED RED CLEAR CHIP SMD | LED RED CLEAR 2SMD |
| Series | SunLED | SunLED | SunLED | SunLED |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
