Product CatalogPart Number
XZMDKDGK56W
Manufacturer
SunLEDDescription
LED GREEN/RED CLEAR 3SMD R/A
Datasheet
DatasheetPackage
3-SMD, No Lead
In Stock
92,216 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XZMDKDGK56W
XZMDKDGK56W
lmages are for reference only.Payment Methods
Delivery Services
Green, Red 525nm Green, 630nm Red LED Indication - Discrete 3.3V Green, 1.95V Red 3-SMD, No Lead
Quick Inquiry
XZMDKDGK56W
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | SunLED |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Red |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 317mcd Green, 79mcd Red |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 3.3V Green, 1.95V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 525nm Green, 630nm Red |
| Wavelength - Peak | 515nm Green, 645nm Red |
| Features | - |
| Package / Case | 3-SMD, No Lead |
| Supplier Device Package | 3-SMD |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Height (Max) | 1.15mm |
| Base Product Number | XZMDKDGK56 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

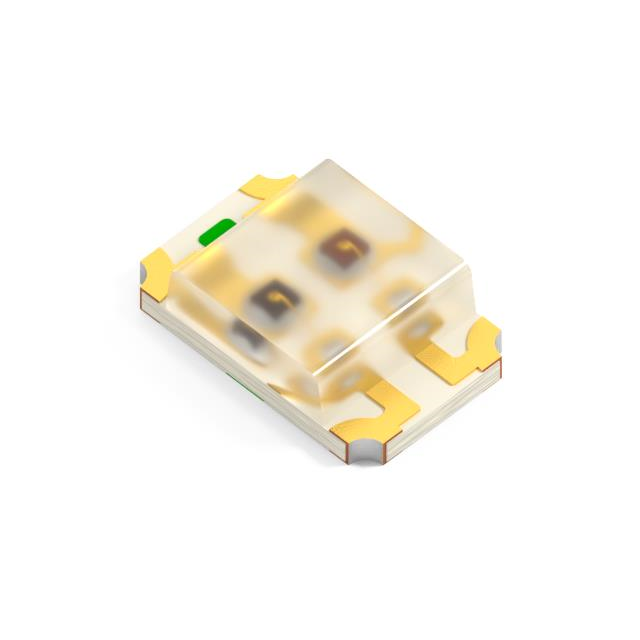

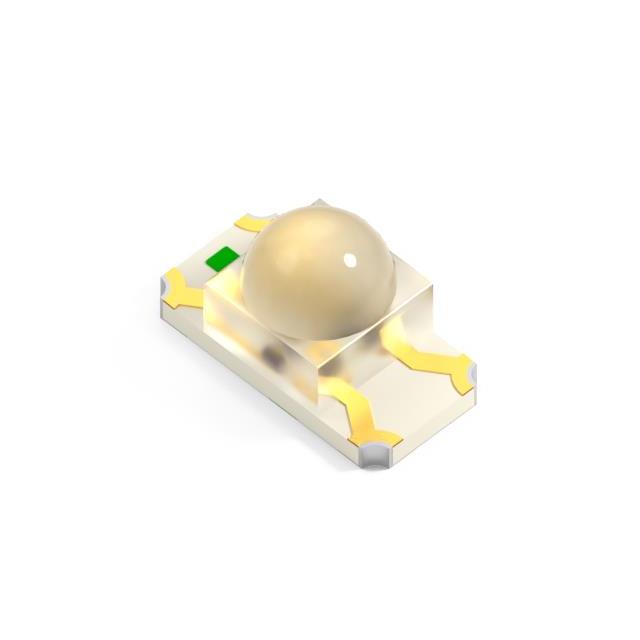

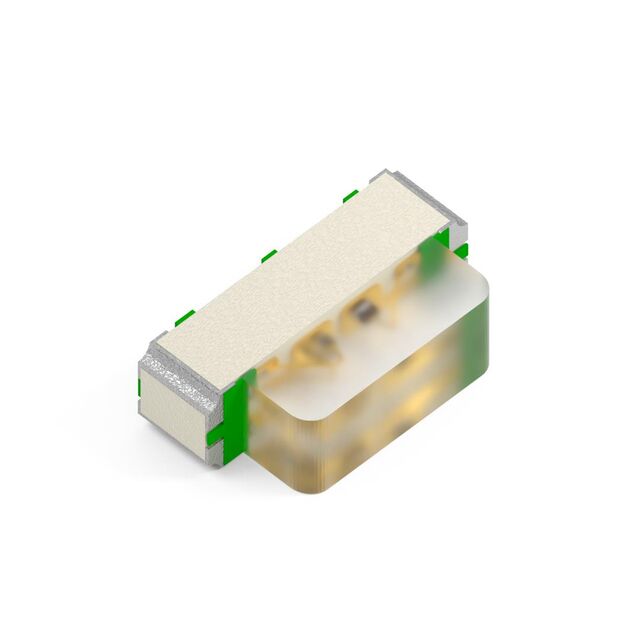

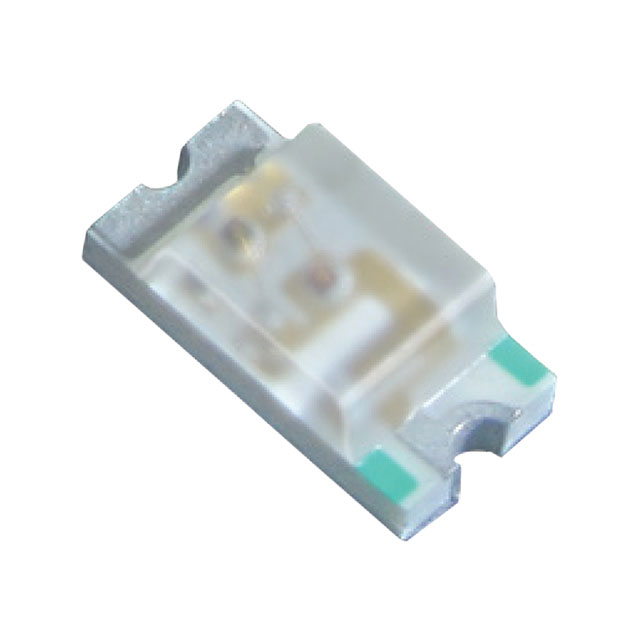

| Part Number | XZMDKDGK170W | XZMDKDGK54W-4 | XZMDKDGK55W-4 | XZMDKDGK55W-8 |
| Manufacturer | SunLED | SunLED | SunLED | SunLED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 2.0X0.6MM BI-COLOR RED/TRUE GREE | LED GREEN/RED CLEAR 4SMD | LED GREEN/RED CLEAR 2SMD | LED GREEN/RED CLEAR 4SMD |
| Series | SunLED | SunLED | SunLED | SunLED |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products

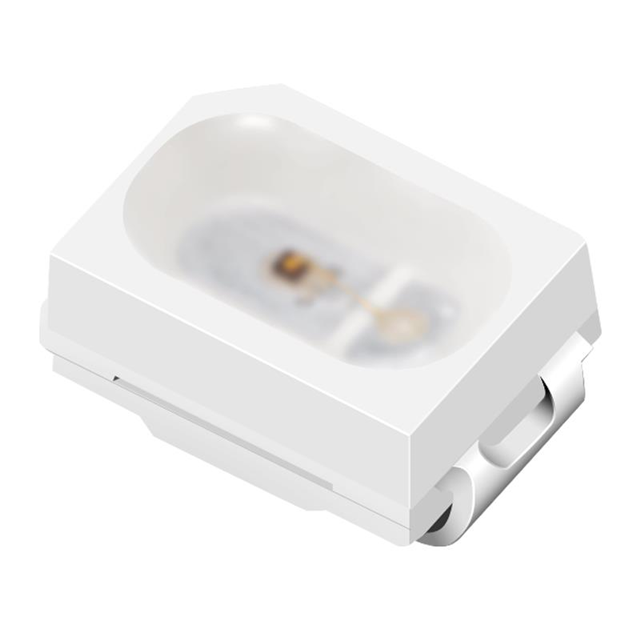

XZMDK105S
SunLED

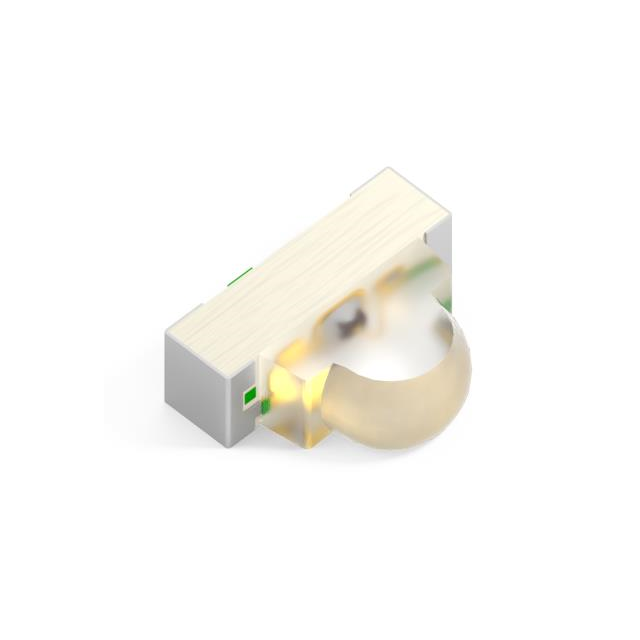

XZMDK168W
SunLED

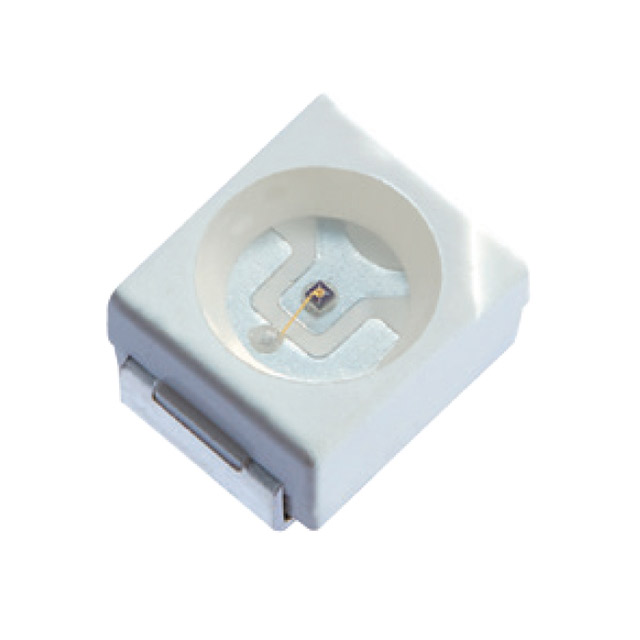

XZMDK45S
SunLED

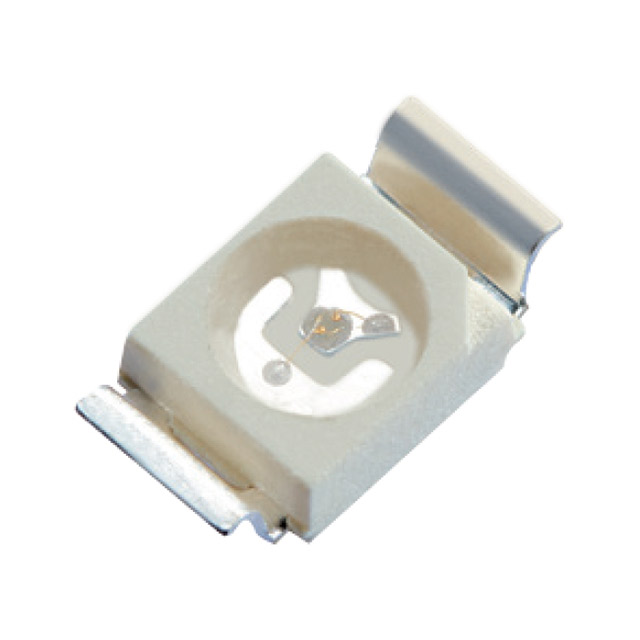

XZMDK45S-9
SunLED

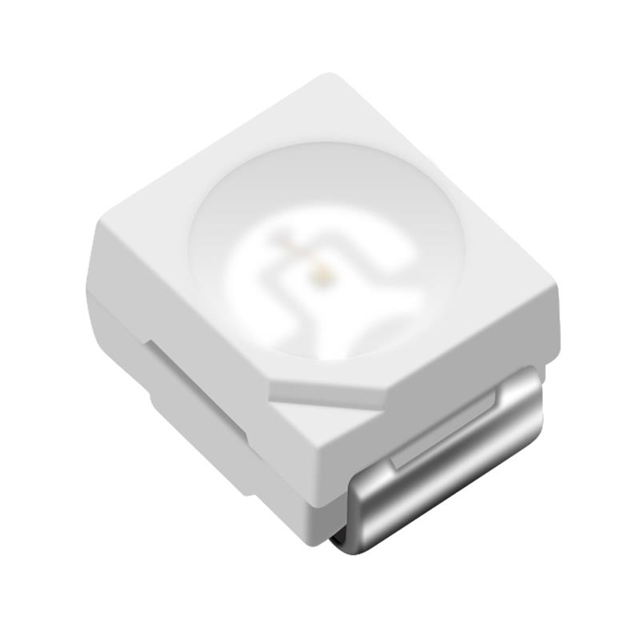

XZMDK45WT
SunLED

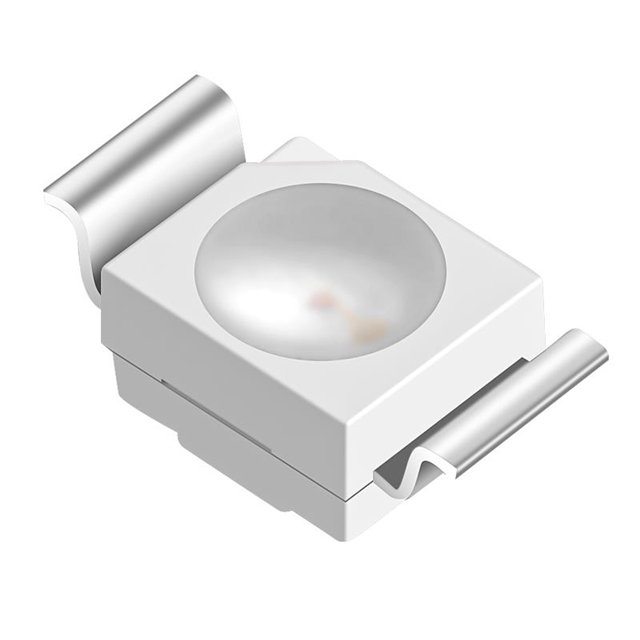

XZMDK45WT-9
SunLED

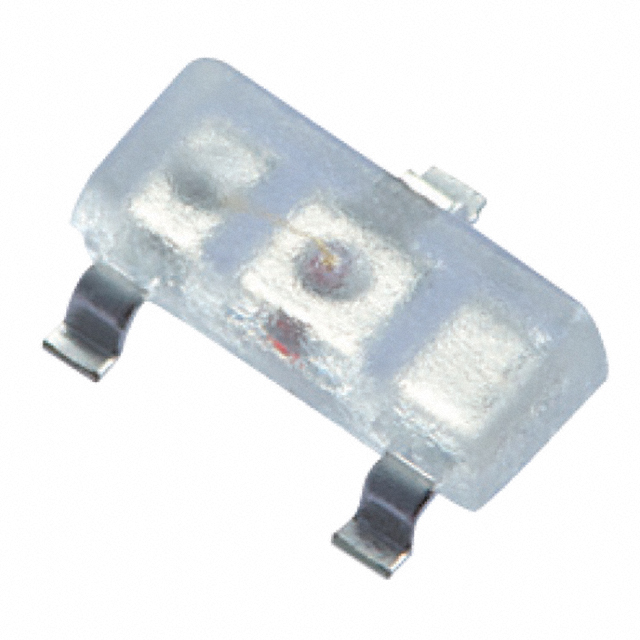

XZMDK48WA
SunLED

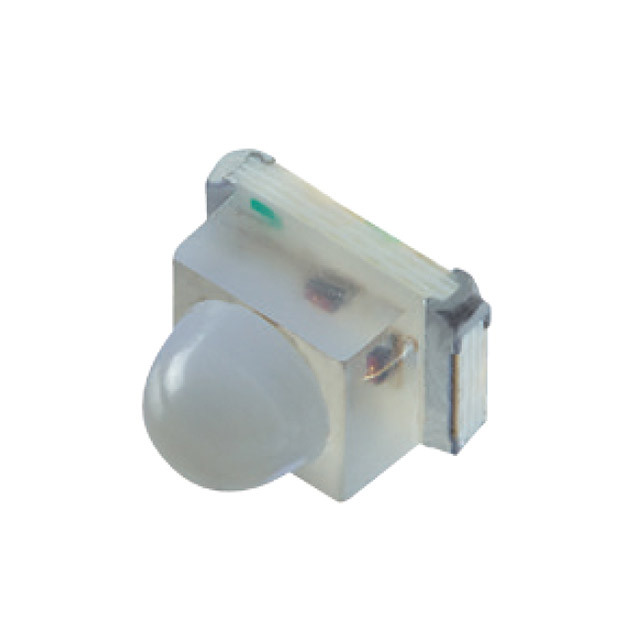

XZMDK50W-2
SunLED

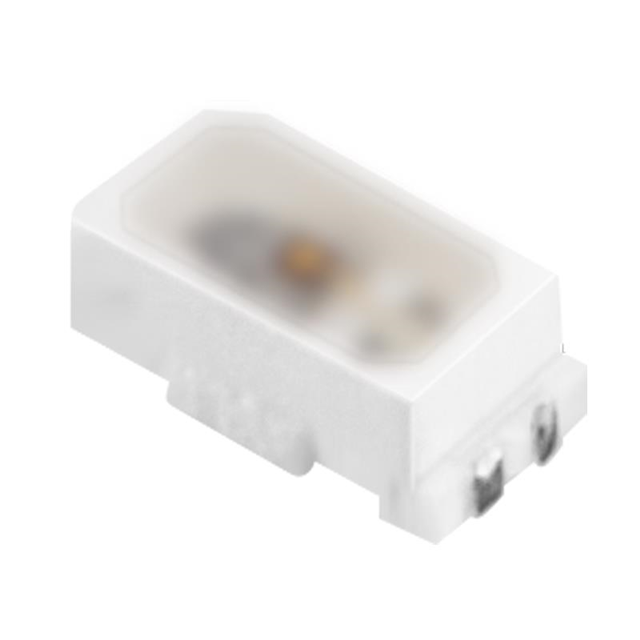

XZMDK53S-4
SunLED

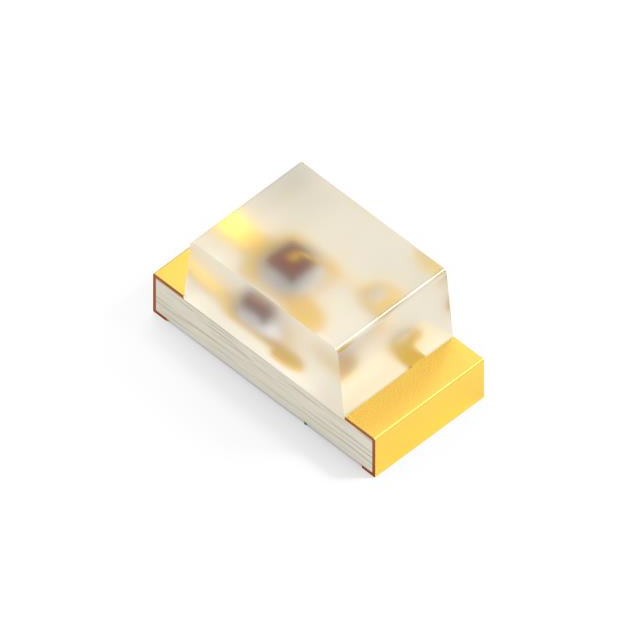

XZMDK53W-1
SunLED

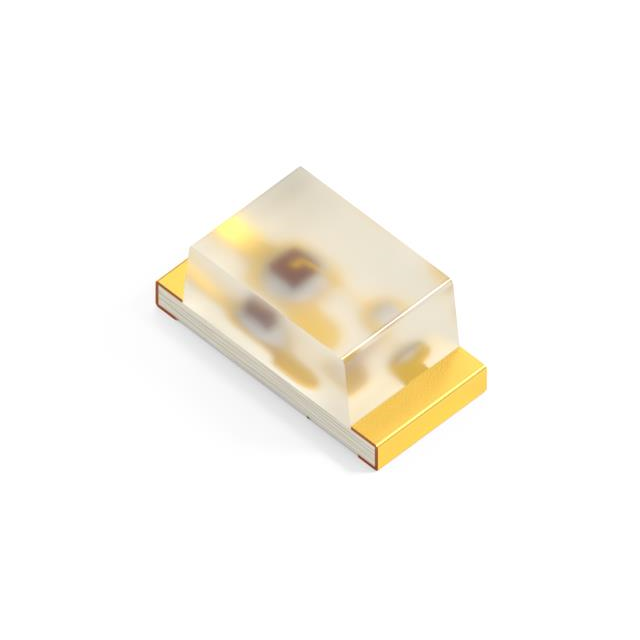

XZMDK53W-3
SunLED

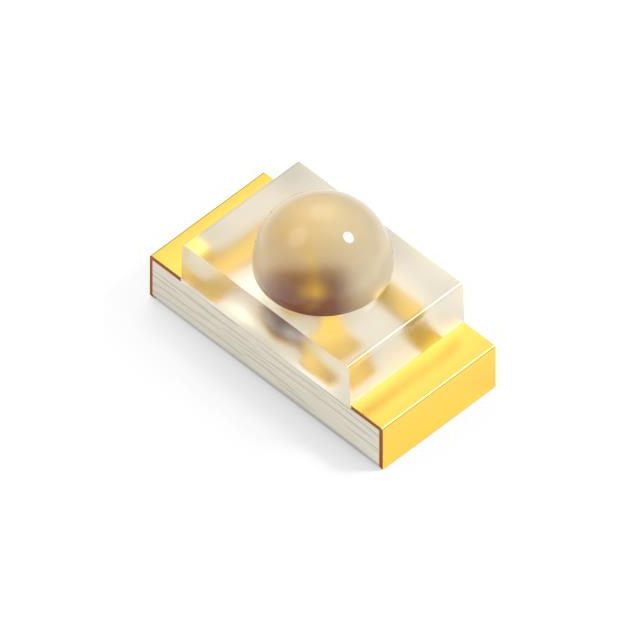

XZMDK53W-8
SunLED
XZMDK53W-8HTA
SunLED

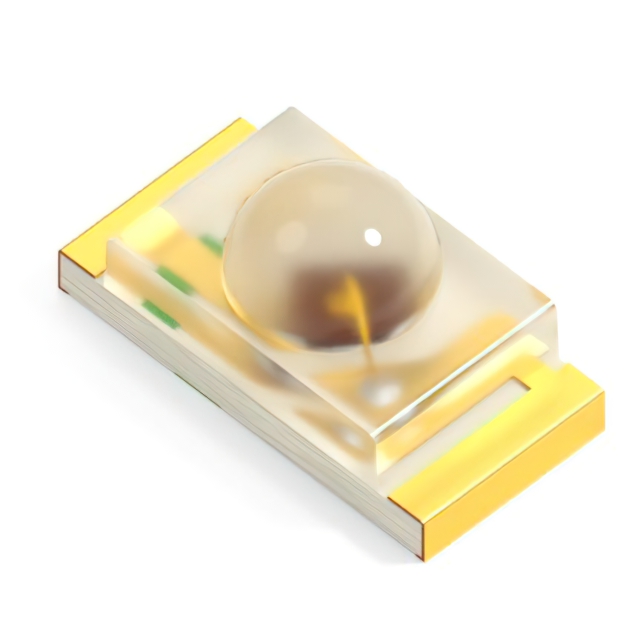

XZMDK53W-8ST
SunLED

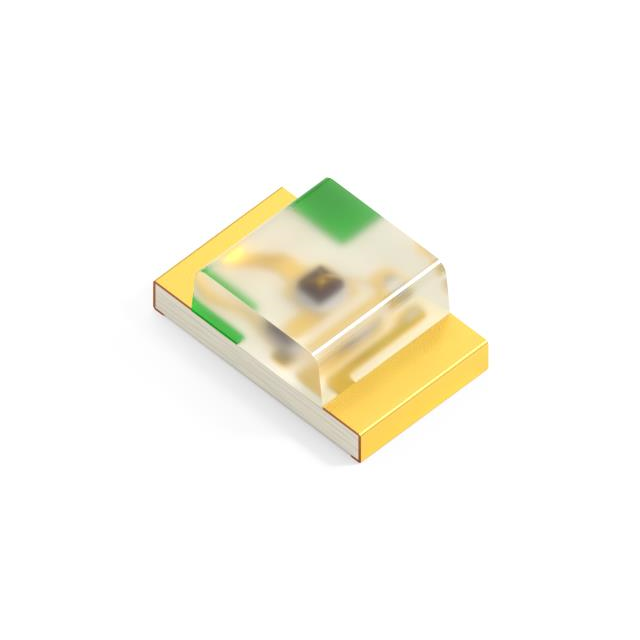

XZMDK54W-1
SunLED

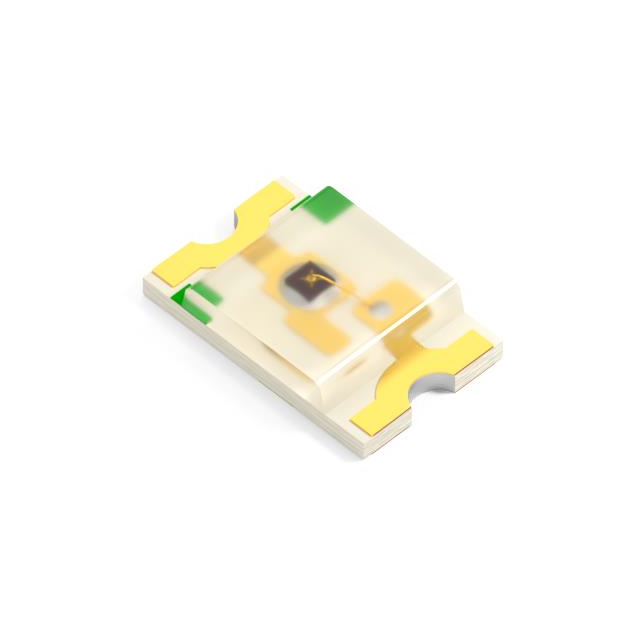

XZMDK54W-4
SunLED

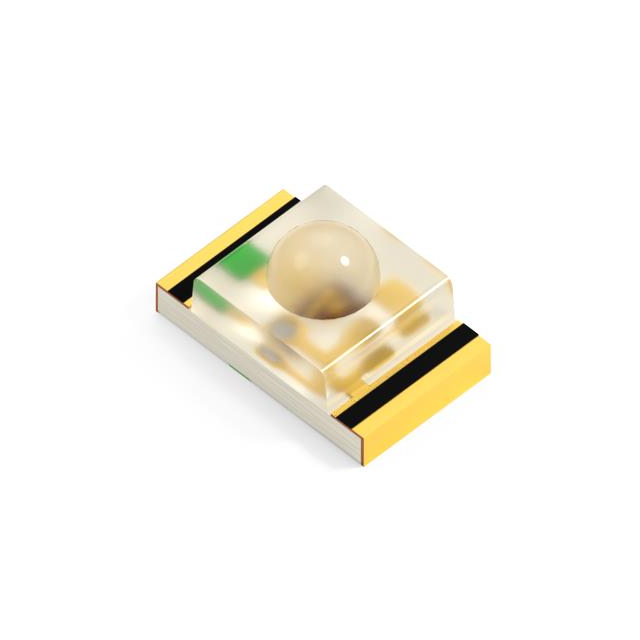

XZMDK54W-8
SunLED

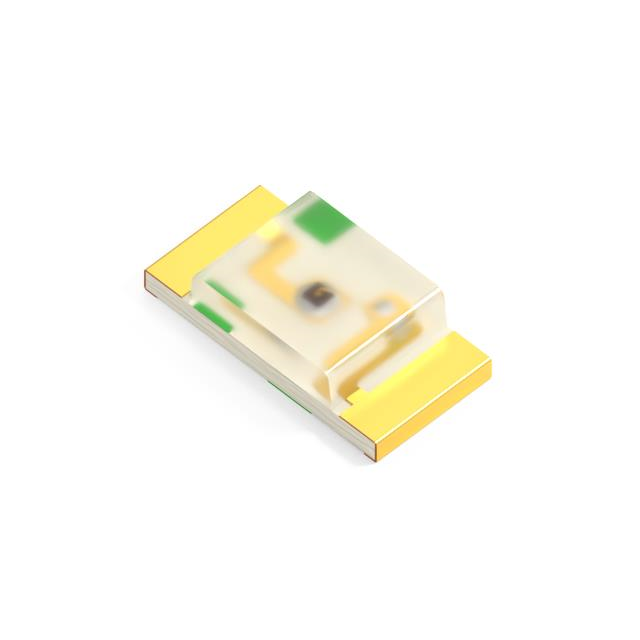

XZMDK55W-1
