Product CatalogPart Number

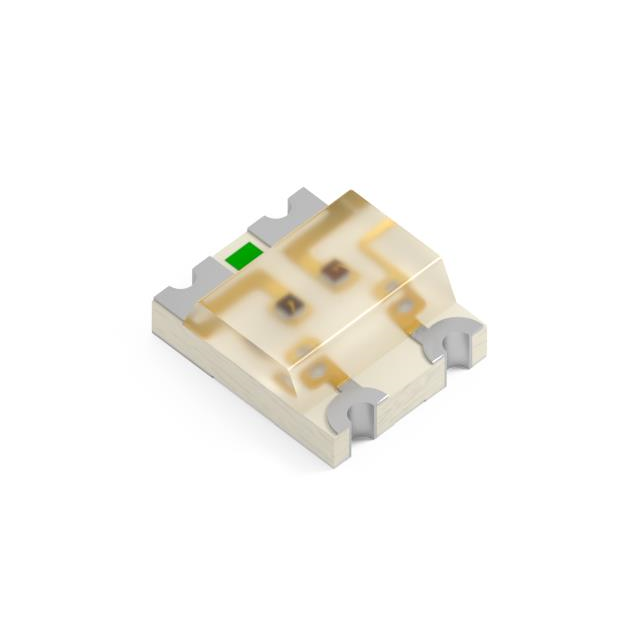

XZMDKVG57W-1
Manufacturer
SunLEDDescription
LED GREEN/RED CLEAR 4SMD
Datasheet
DatasheetPackage
4-SMD, No Lead
In Stock
21,998 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XZMDKVG57W-1
XZMDKVG57W-1
lmages are for reference only.Payment Methods
Delivery Services
Green, Red 570nm Green, 630nm Red LED Indication - Discrete 2.1V Green, 1.95V Red 4-SMD, No Lead
Quick Inquiry
XZMDKVG57W-1
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | SunLED |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 148mcd Green, 995mcd Red |
| Lens Style | Rectangle with Irregular Top |
| Lens Size | 2.50mm x 1.50mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.95V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 50° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 570nm Green, 630nm Red |
| Wavelength - Peak | 574nm Green, 645nm Red |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Height (Max) | 1.60mm |
| Base Product Number | XZMDKVG57 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

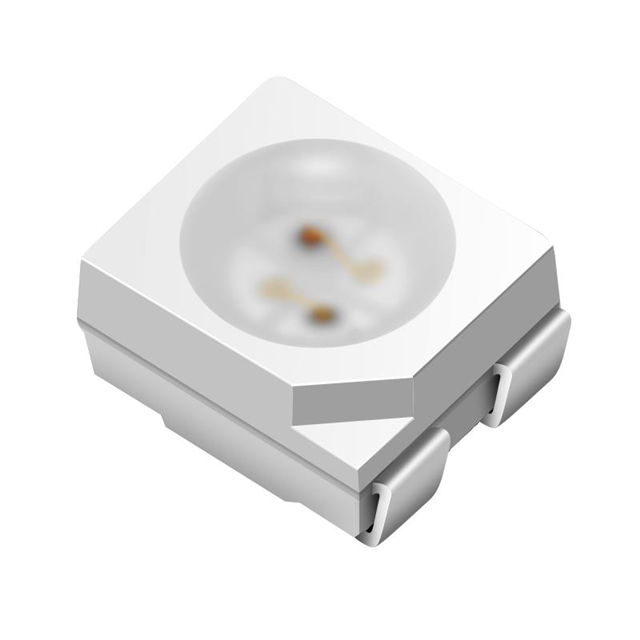

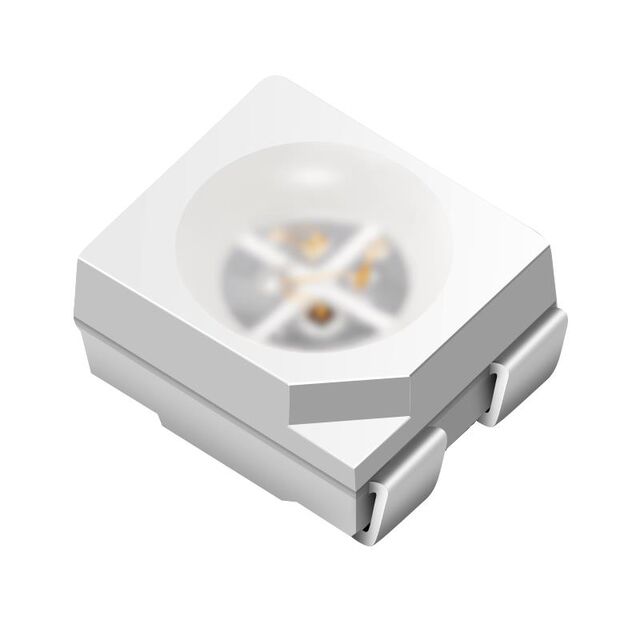

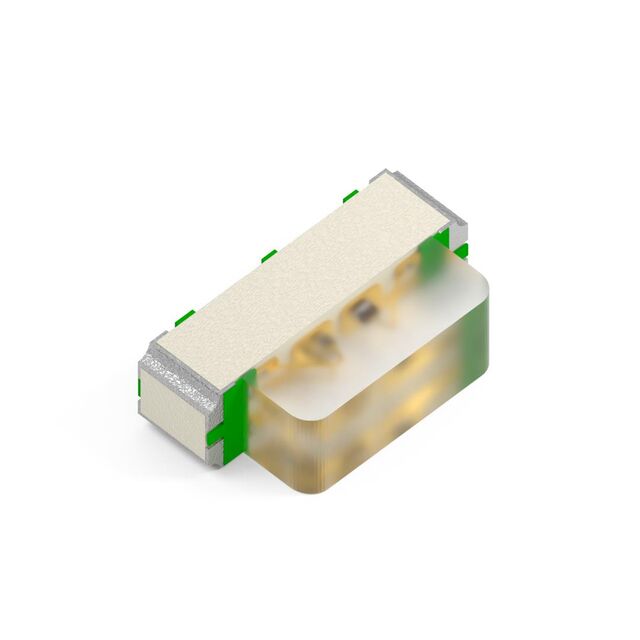

| Part Number | XZMDKVG57W | XZMDKVG170W | XZMDKVG45S | XZMDKVG45WT |
| Manufacturer | SunLED | SunLED | SunLED | SunLED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN/RED CLEAR 4SMD | 2.0X0.6MM BI-COLOR RED/GRN RA SM | LED GREEN/RED CLEAR 4PLCC SMD | LED GREEN/RED CLEAR 4PLCC SMD |
| Series | SunLED | SunLED | SunLED | SunLED |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
