Product CatalogPart Number
XZMOK56W-1
Manufacturer
SunLEDDescription
LED ORANGE CLEAR 2SMD R/A
Datasheet
DatasheetPackage
2-SMD, No Lead
In Stock
30,656 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XZMOK56W-1
XZMOK56W-1
lmages are for reference only.Payment Methods
Delivery Services
Orange 601nm LED Indication - Discrete 2.1V 2-SMD, No Lead
Quick Inquiry
XZMOK56W-1
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | SunLED |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Orange |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 377mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 601nm |
| Wavelength - Peak | 610nm |
| Features | - |
| Package / Case | 2-SMD, No Lead |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Height (Max) | 1.00mm |
| Base Product Number | XZMOK56 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | XZMOK56W | XZMOK105S | XZMOK168W | XZMOK45S |
| Manufacturer | SunLED | SunLED | SunLED | SunLED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED ORANGE CLEAR 2SMD R/A | LED ORANGE CLEAR 2SMD | LED ORNG CLEAR CHIP SMD R/A | LED ORANGE CLEAR 2PLCC SMD |
| Series | SunLED | SunLED | SunLED | SunLED |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products

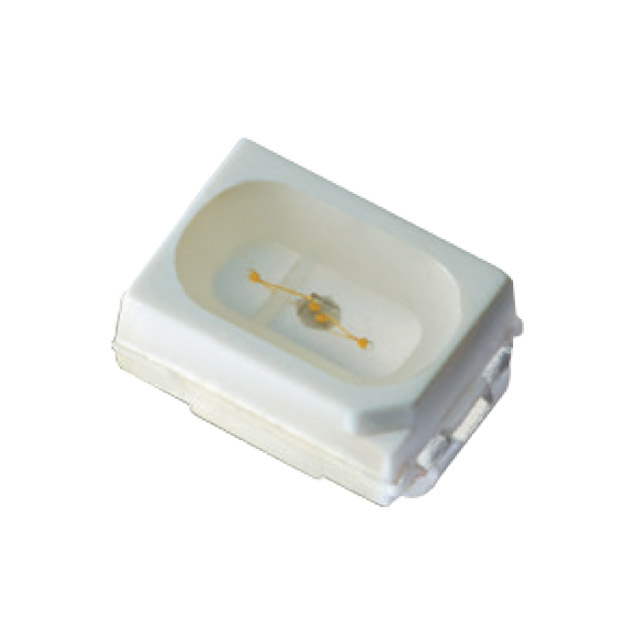

XZMOK105S
SunLED

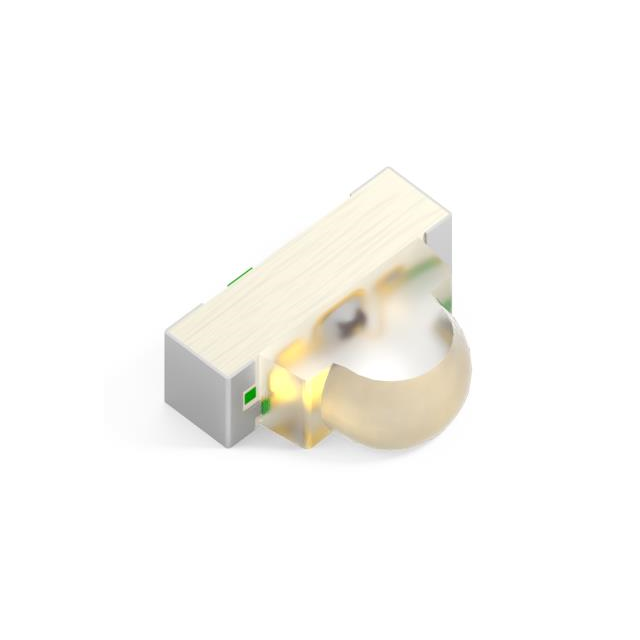

XZMOK168W
SunLED
XZMOK45S
SunLED

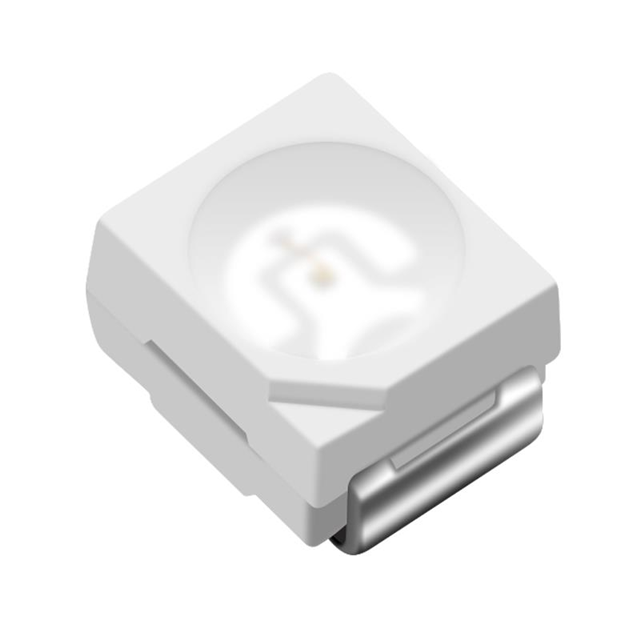

XZMOK45WT
SunLED

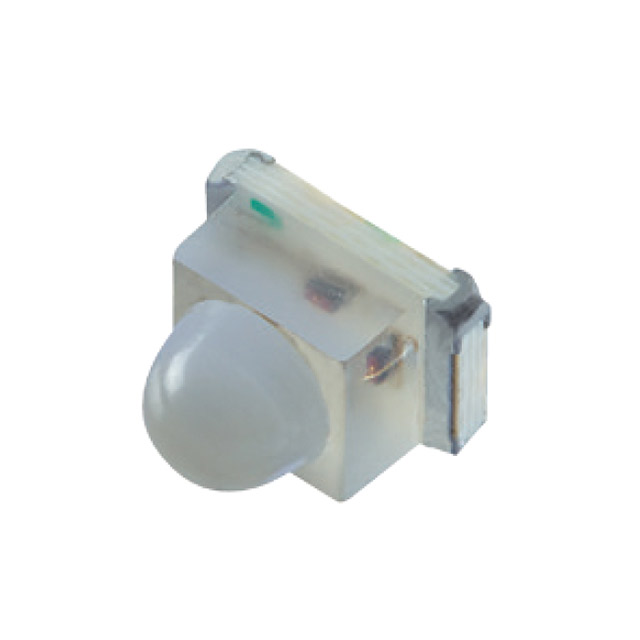

XZMOK50W-2
SunLED

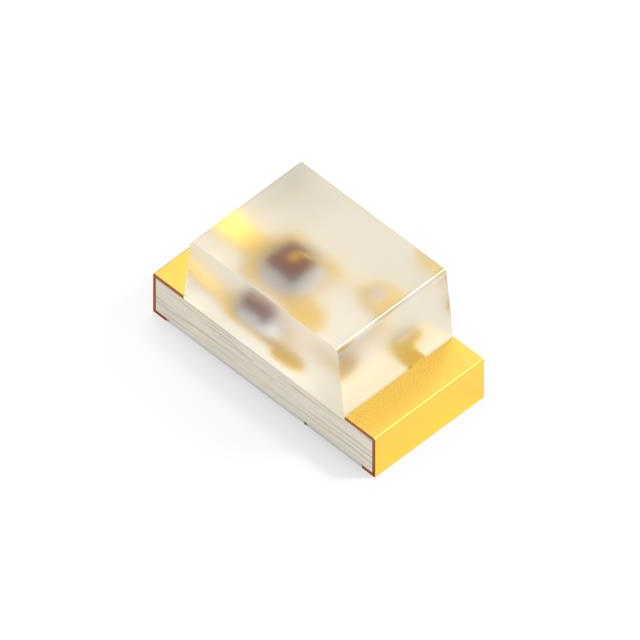

XZMOK53W-1
SunLED

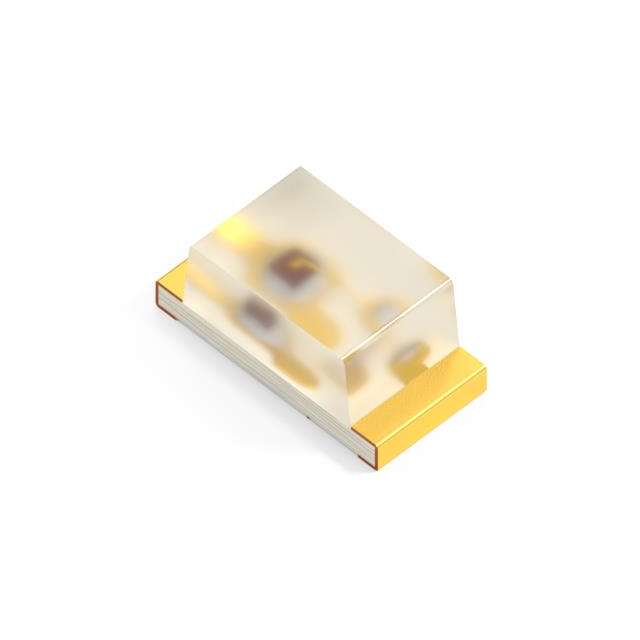

XZMOK53W-3
SunLED

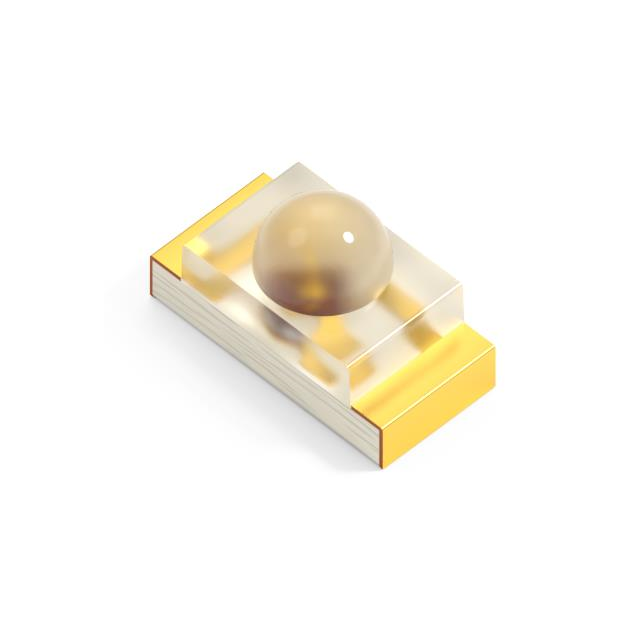

XZMOK53W-8
SunLED

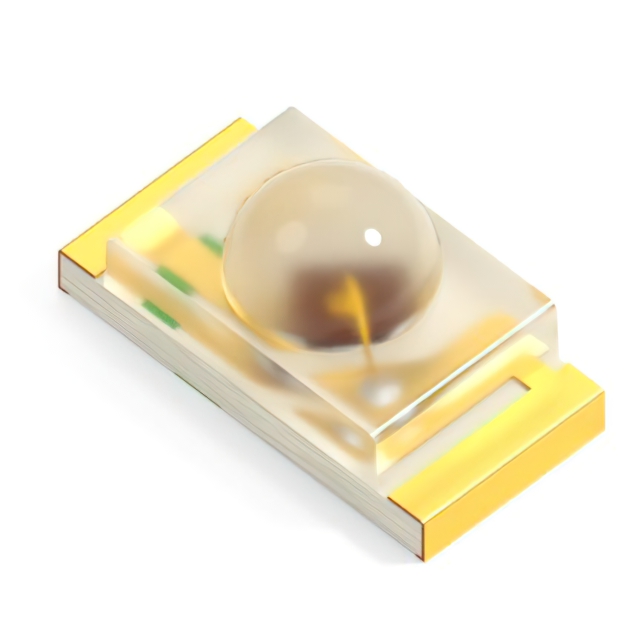

XZMOK53W-8ST
SunLED

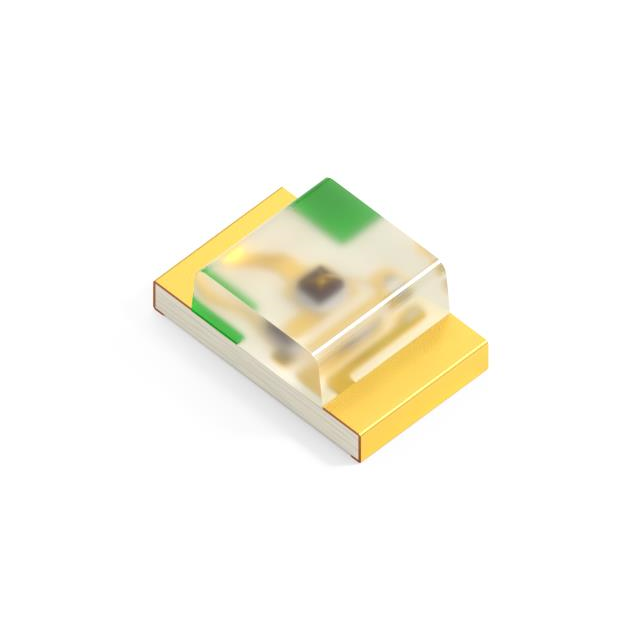

XZMOK54W-1
SunLED

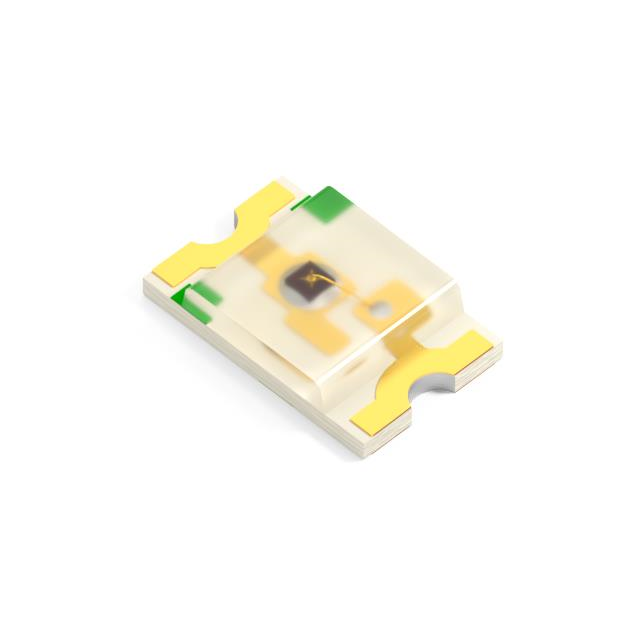

XZMOK54W-4
SunLED

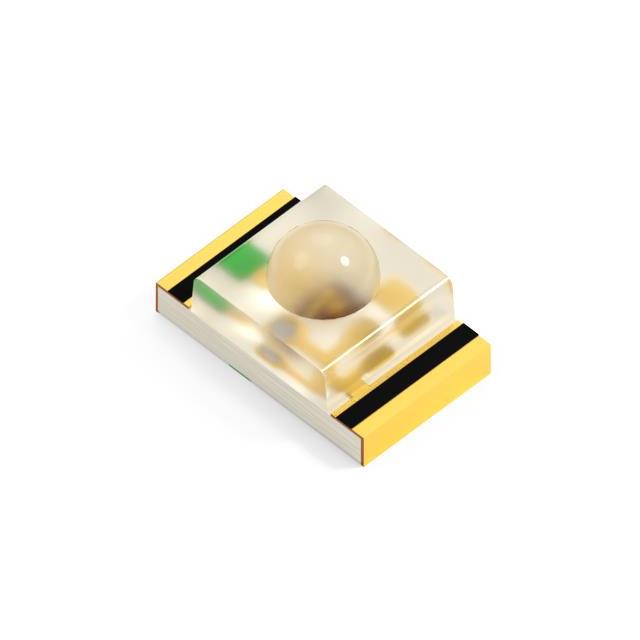

XZMOK54W-8
SunLED

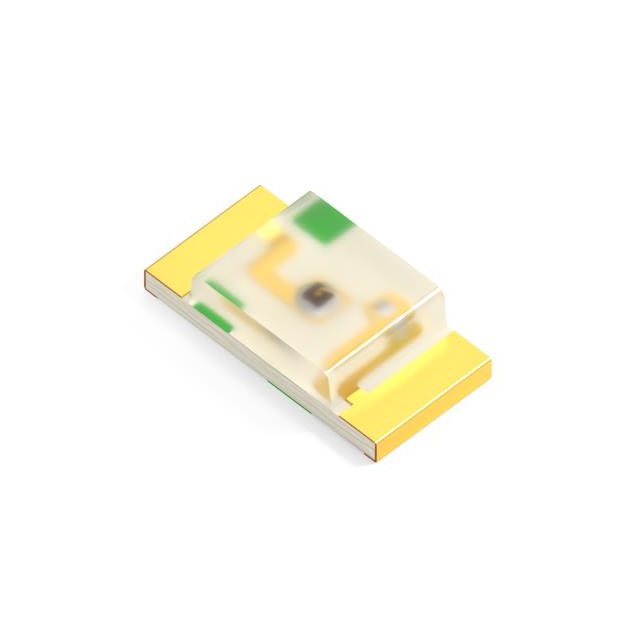

XZMOK55W-1
SunLED

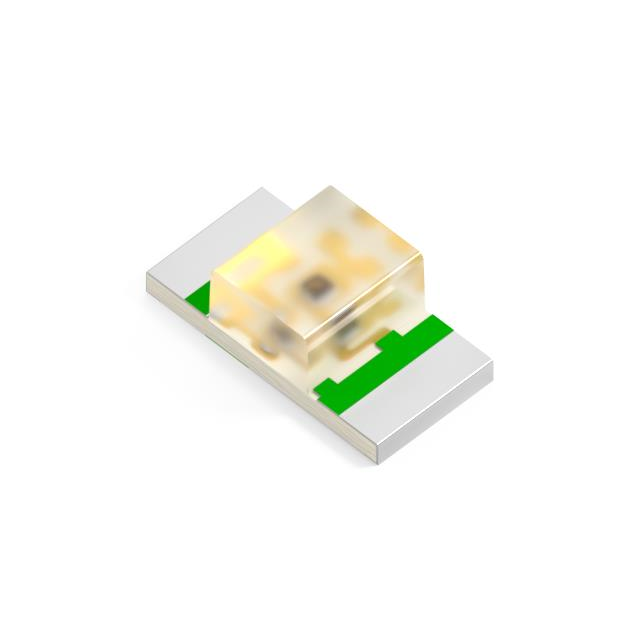

XZMOK55W-2
SunLED

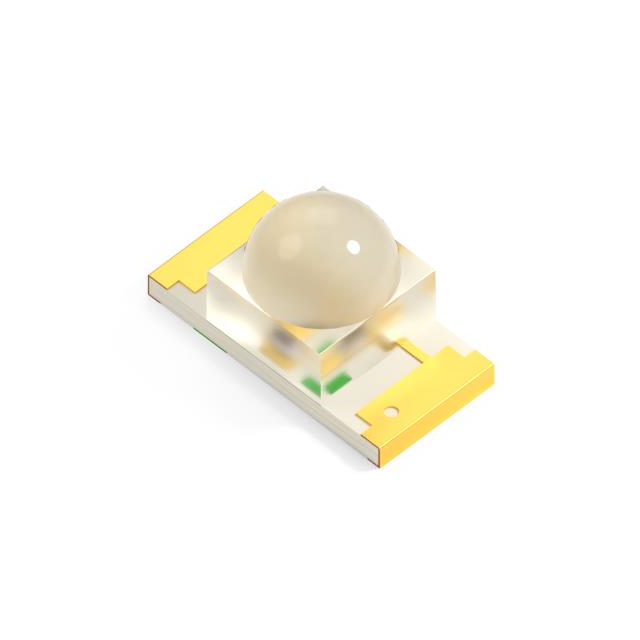

XZMOK55W-3
SunLED

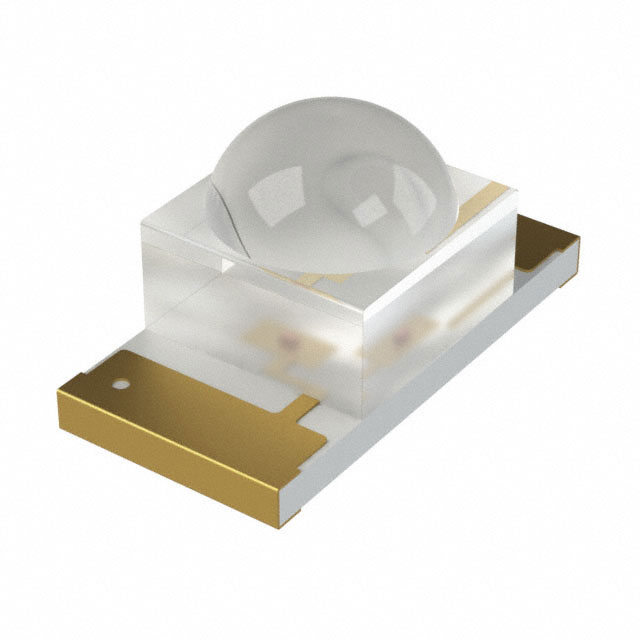

XZMOK55W-3HTA
SunLED
XZMOK55W-A2
SunLED

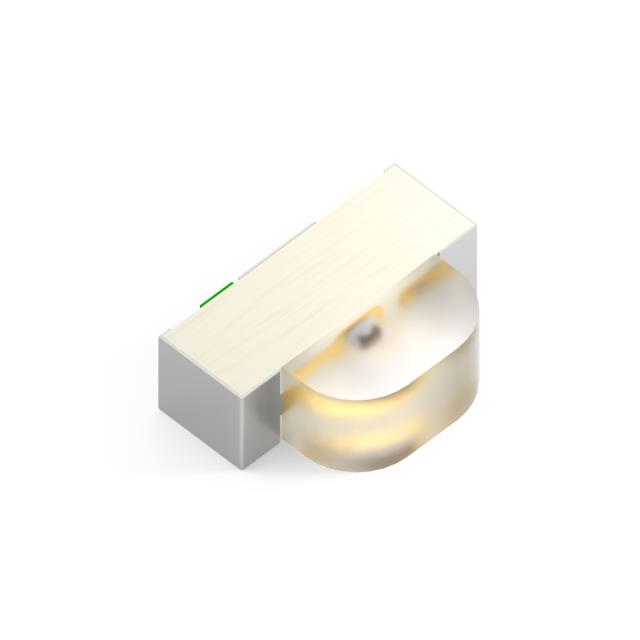

XZMOK56W
