Product CatalogPart Number

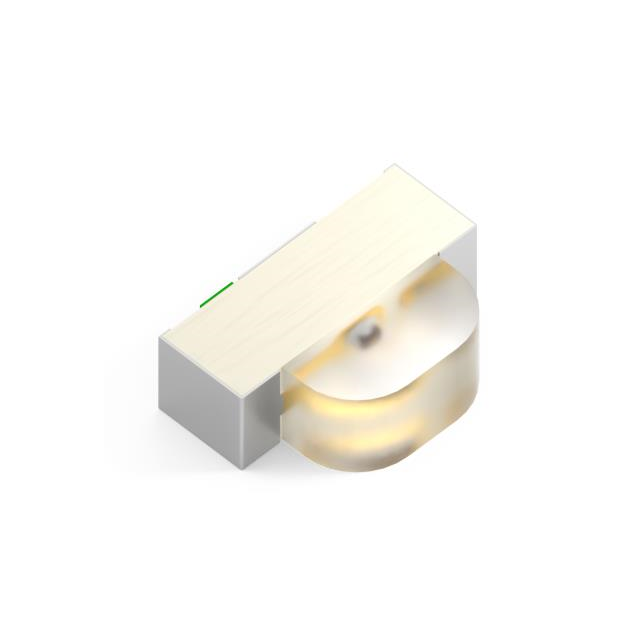

XZMYK56W-1
Manufacturer
SunLEDDescription
LED YELLOW CLEAR 2SMD R/A
Datasheet
DatasheetPackage
2-SMD, No Lead
In Stock
39,513 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XZMYK56W-1
XZMYK56W-1
lmages are for reference only.Payment Methods
Delivery Services
Yellow 590nm LED Indication - Discrete 2V 2-SMD, No Lead
Quick Inquiry
XZMYK56W-1
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | SunLED |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Yellow |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 397mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 590nm |
| Wavelength - Peak | 590nm |
| Features | - |
| Package / Case | 2-SMD, No Lead |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Height (Max) | 1.00mm |
| Base Product Number | XZMYK56 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

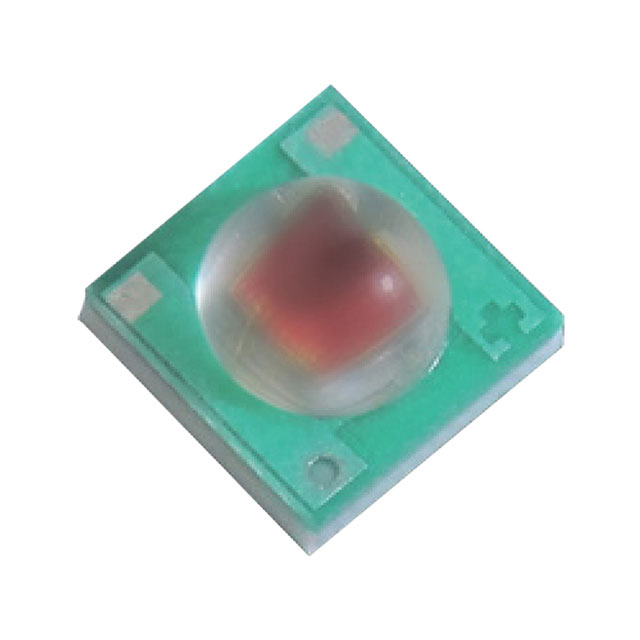

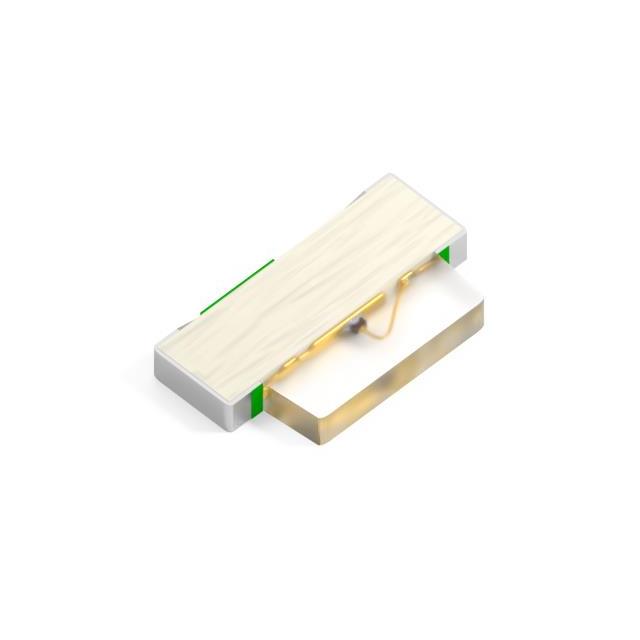

| Part Number | XZMYK56W | XZMY56W | XZMYF151W | XZMYH160S |
| Manufacturer | SunLED | SunLED | SunLED | SunLED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED YELLOW CLEAR CHIP SMD R/A | LED YELLOW CLEAR SMD R/A | LED YELLOW CLEAR 2SMD R/A | LED YELLOW CLEAR 2SMD |
| Series | SunLED | SunLED | SunLED | SunLED |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products

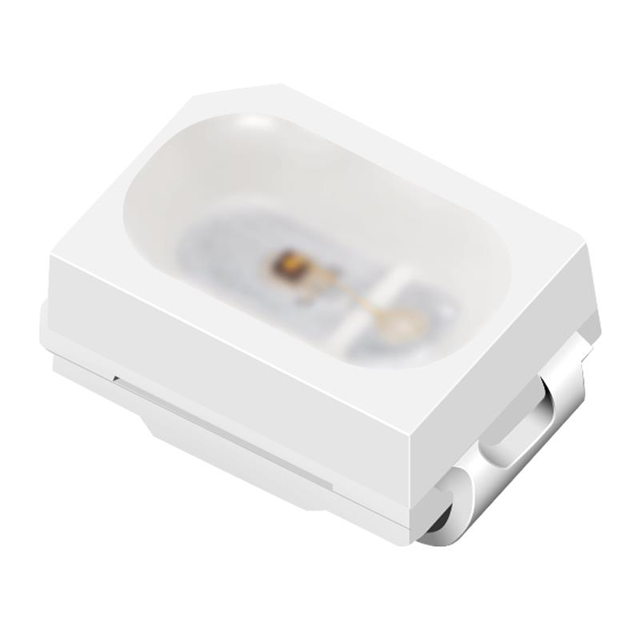

XZMYK105S
SunLED

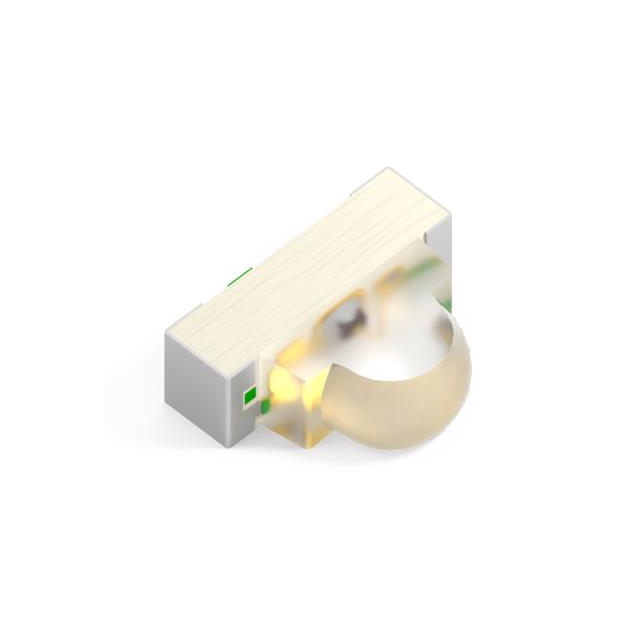

XZMYK168W
SunLED

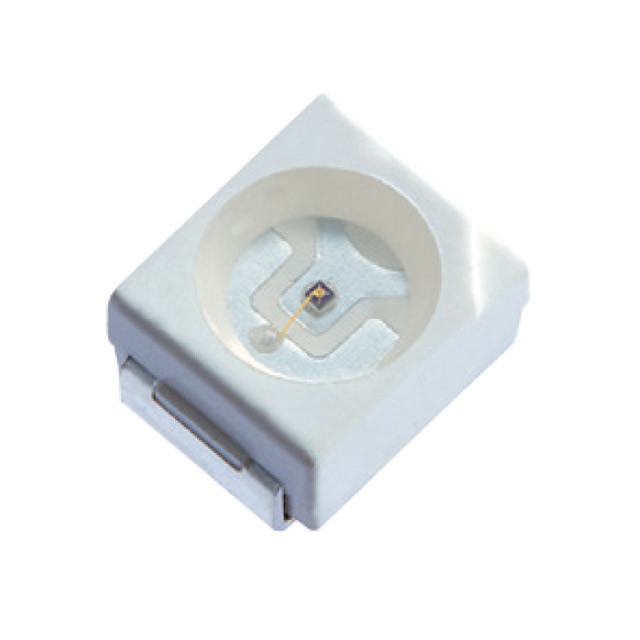

XZMYK45S
SunLED

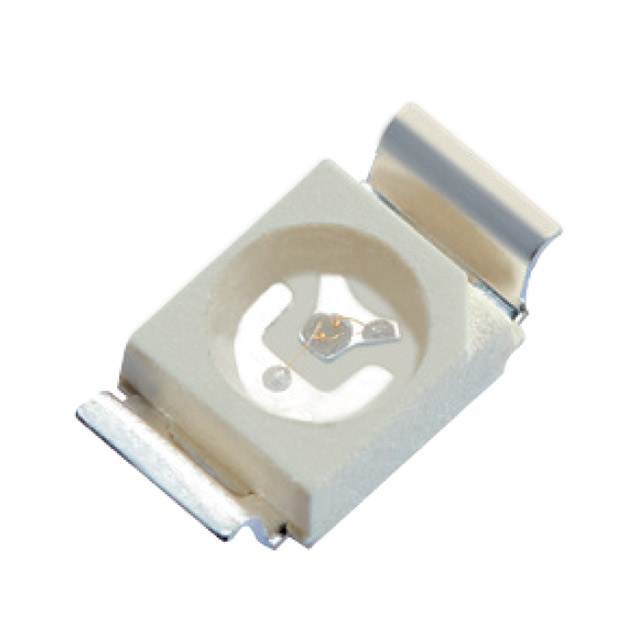

XZMYK45S-9
SunLED

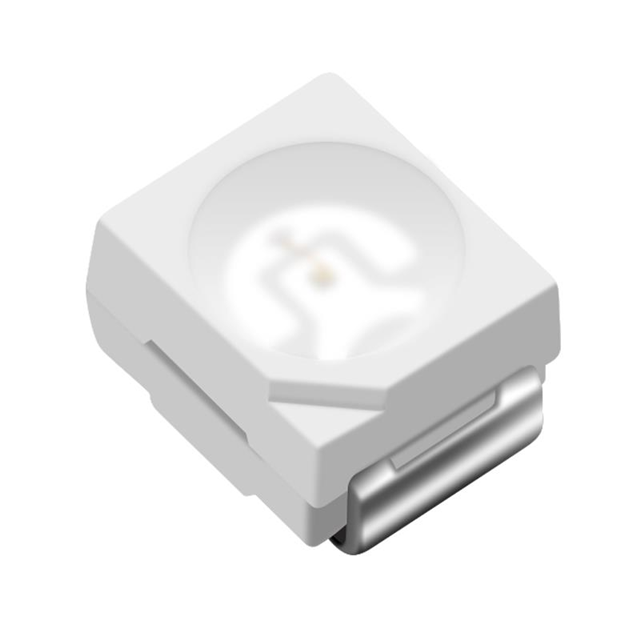

XZMYK45WT
SunLED

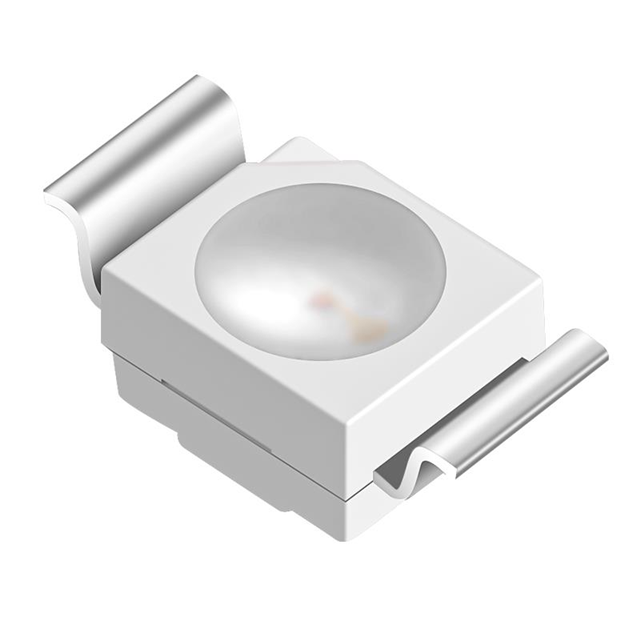

XZMYK45WT-9
SunLED

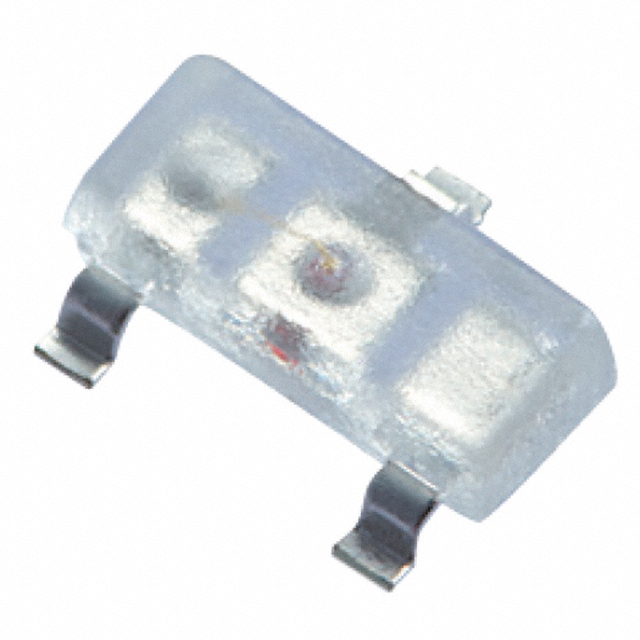

XZMYK48WA
SunLED
XZMYK50W-2
SunLED

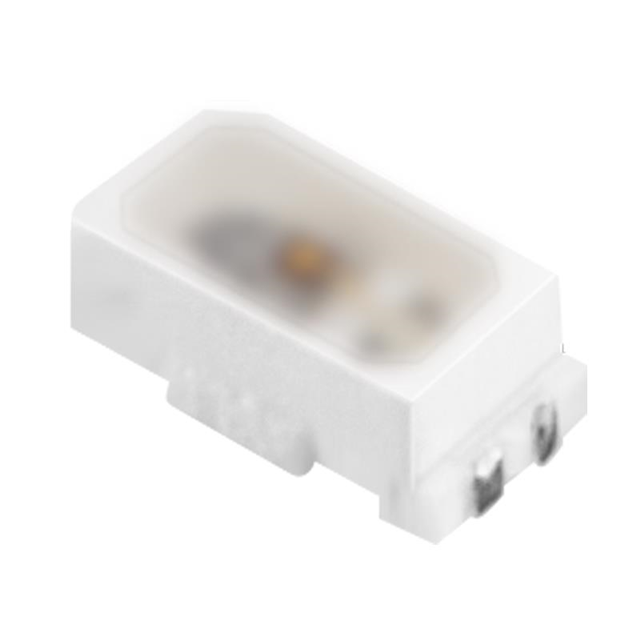

XZMYK53S-4
SunLED

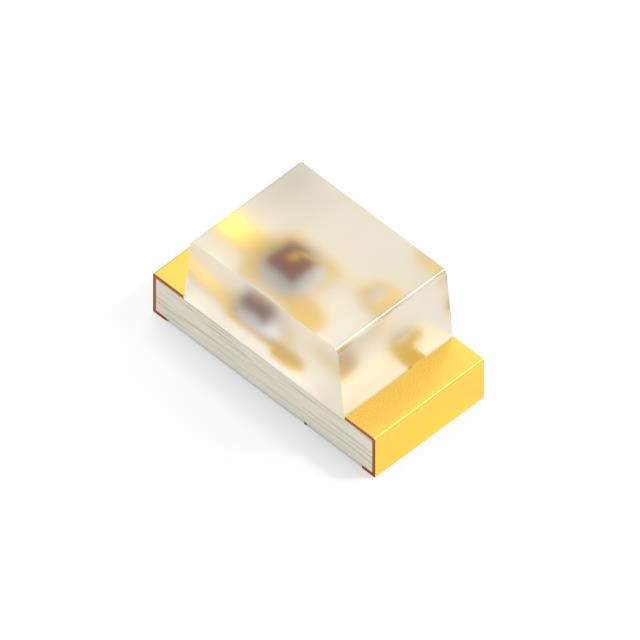

XZMYK53W-1
SunLED

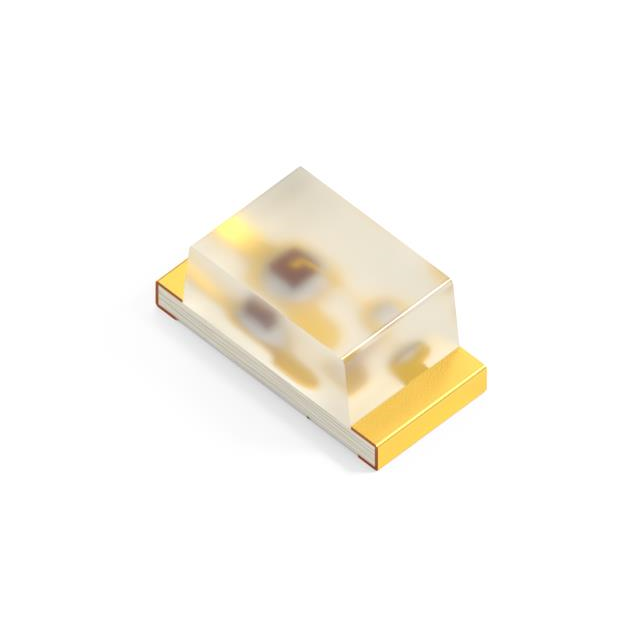

XZMYK53W-3
SunLED

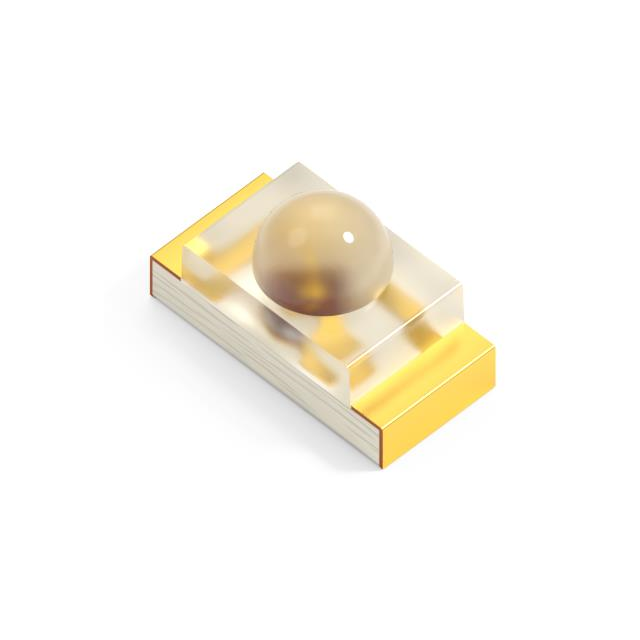

XZMYK53W-8
SunLED

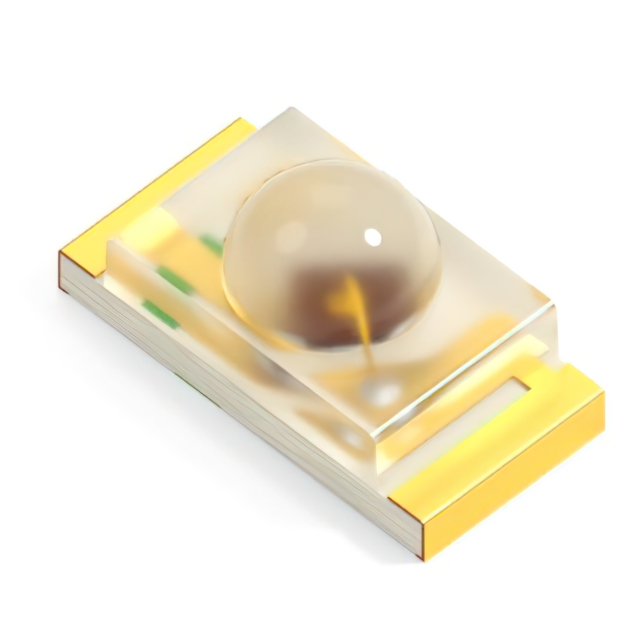

XZMYK53W-8ST
SunLED

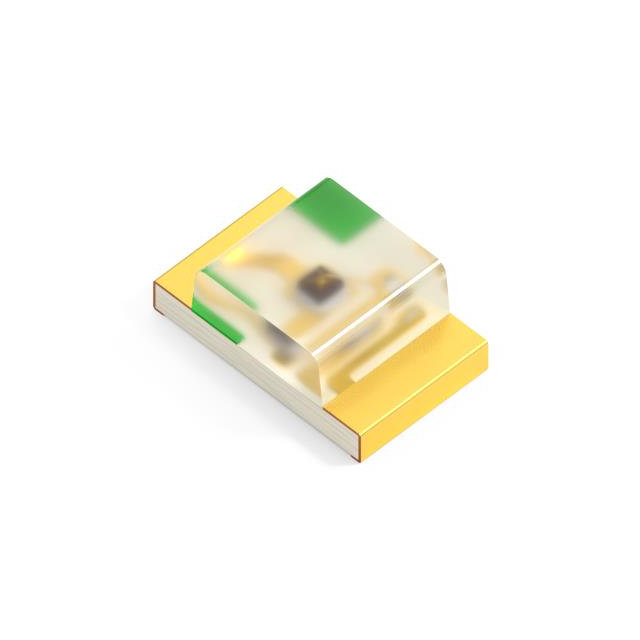

XZMYK54W-1
SunLED
XZMYK54W-4
SunLED

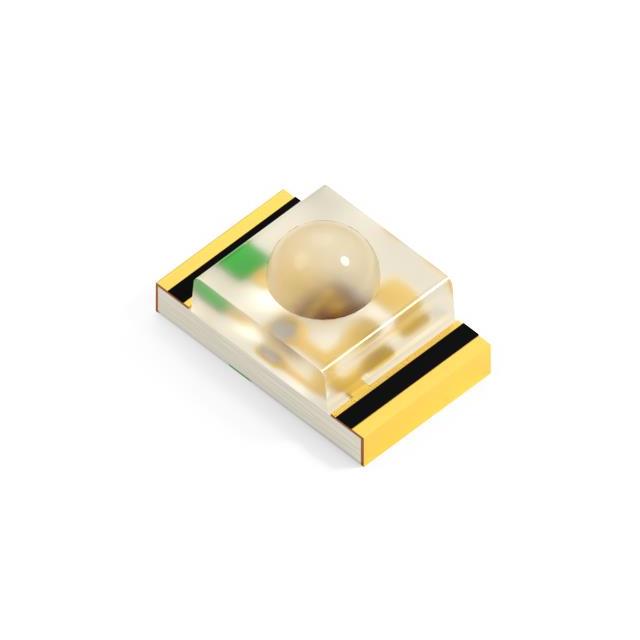

XZMYK54W-8
SunLED

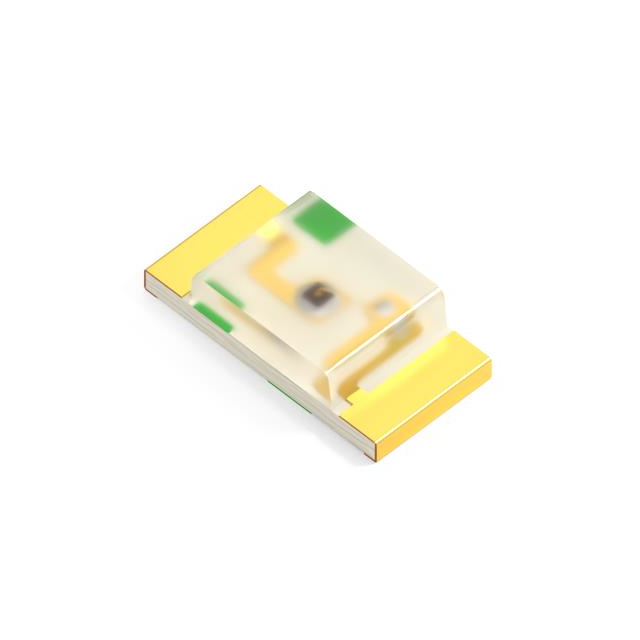

XZMYK55W-1
SunLED

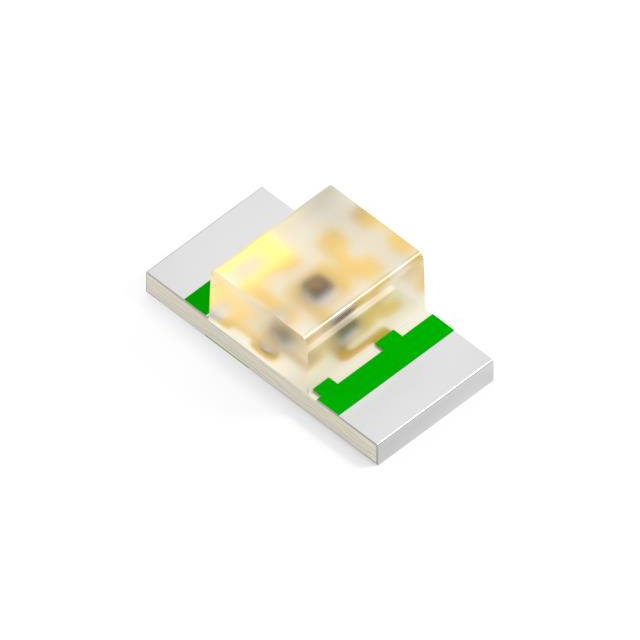

XZMYK55W-2
