Product CatalogPart Number
XZMYKVG59W-1
Manufacturer
SunLEDDescription
LED GRN/YLW CLEAR CHIP SMD
Datasheet
DatasheetPackage
0606 (1616 Metric)
In Stock
88,400 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XZMYKVG59W-1
XZMYKVG59W-1
lmages are for reference only.Payment Methods
Delivery Services
Green, Yellow 570nm Green, 590nm Yellow LED Indication - Discrete 2.1V Green, 2V Yellow 0606 (1616 Metric)
Quick Inquiry
XZMYKVG59W-1
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | SunLED |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Yellow |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 49mcd Green, 118mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.50mm x 1.19mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Yellow |
| Current - Test | 20mA |
| Viewing Angle | 150° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 570nm Green, 590nm Yellow |
| Wavelength - Peak | 574nm Green, 590nm Yellow |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Height (Max) | 0.90mm |
| Base Product Number | XZMYKVG59 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

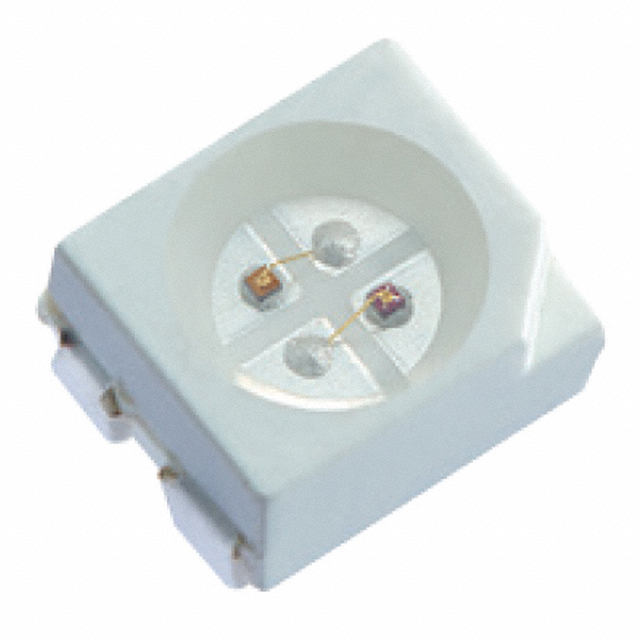

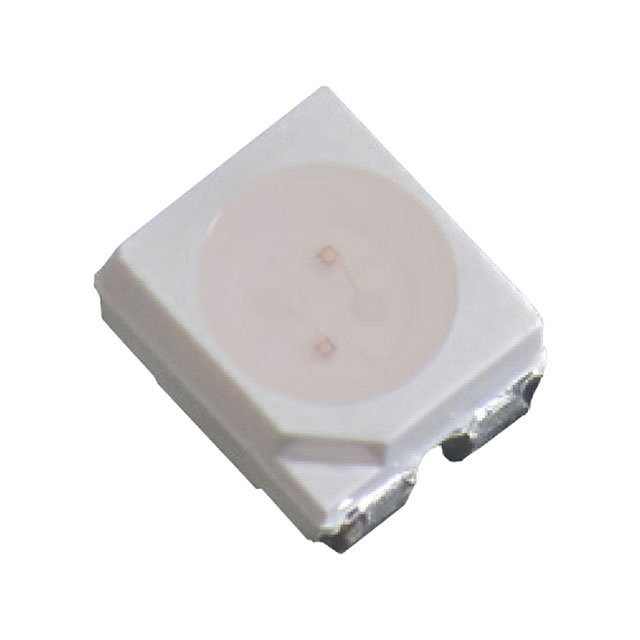

| Part Number | XZMYKVG59W-1HTA | XZMYKVG170W | XZMYKVG45S | XZMYKVG45WT |
| Manufacturer | SunLED | SunLED | SunLED | SunLED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GRN/YLW CLEAR CHIP SMD | 2.0X0.6MM BI-COLOR YEL/GRN RA SM | LED GRN/YLW CLEAR 4PLCC SMD | LED GRN/YLW CLEAR 4PLCC SMD |
| Series | SunLED | SunLED | SunLED | SunLED |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
