Y09600R25000B0L
lmages are for reference only.Y09600R25000B0L
RES 0.25 OHM 10W 0.1% RADIAL
DatasheetRadial - 4 Leads
87,233 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
250 mOhms ±0.1% 10W Through Hole Resistor Radial - 4 Leads Current Sense, Moisture Resistant, Non-Inductive Metal Foil
Y09600R25000B0L
| Category | Resistors - Through Hole Resistors - |
| Manufacturer | VPG Foil Resistors |
| Series | VCS331 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Resistance | 250 mOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 10W |
| Composition | Metal Foil |
| Features | Current Sense, Moisture Resistant, Non-Inductive |
| Temperature Coefficient | ±3ppm/°C |
| Operating Temperature | - |
| Package / Case | Radial - 4 Leads |
| Supplier Device Package | - |
| Size / Dimension | 1.340" L x 0.210" W (34.04mm x 5.33mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Number of Terminations | 4 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
|
|
|

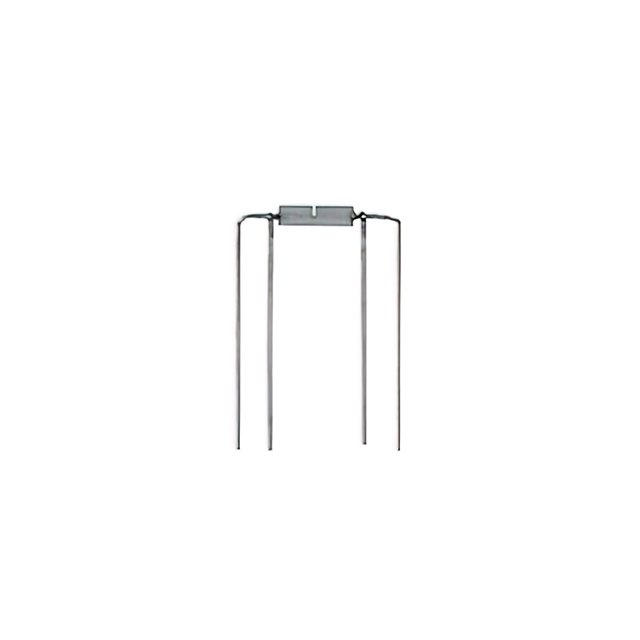

| Part Number | Y09600R25000F9L | Y09600R25000J0L | Y09600R20000F0L | Y09600R27770B9L |
| Manufacturer | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | VCS331T 0R2500 1.0% | RES 0.25 OHM 10W 5% RADIAL | RES 0.2 OHM 10W 1% RADIAL | RES 0.2777 OHM 10W 0.1% RADIAL |
| Series | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| Packaging | Bulk | Bulk | Bulk | Bulk |
