Y14682R50000A0L

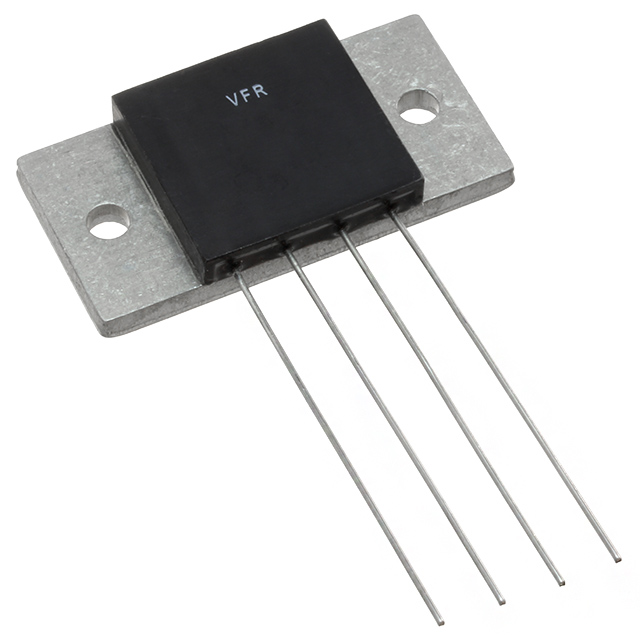

lmages are for reference only.Y14682R50000A0L
RES 2.5 OHM 10W 0.05% RADIAL
DatasheetRadial - 4 Leads
74,909 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.5 Ohms ±0.05% 10W Through Hole Resistor Radial - 4 Leads Current Sense, Moisture Resistant, Non-Inductive Metal Foil
Y14682R50000A0L
| Category | Resistors - Through Hole Resistors - |
| Manufacturer | VPG Foil Resistors |
| Series | VFP4Z |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Resistance | 2.5 Ohms |
| Tolerance | ±0.05% |
| Power (Watts) | 10W |
| Composition | Metal Foil |
| Features | Current Sense, Moisture Resistant, Non-Inductive |
| Temperature Coefficient | ±0.2ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | Radial - 4 Leads |
| Supplier Device Package | - |
| Size / Dimension | 1.575" L x 0.276" W (40.00mm x 7.00mm) |
| Height - Seated (Max) | 0.803" (20.40mm) |
| Number of Terminations | 4 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | Y14682R50000D9L | Y14682R50000F9L | Y14680R25000D9L | Y14680R30000D9L |
| Manufacturer | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 2.5 OHM 10W 0.5% RADIAL | RES 2.5 OHM 10W 1% RADIAL | RES 0.25 OHM 10W 0.5% RADIAL | RES 0.003 OHM 0.5% 10W AXIAL |
| Series | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| Packaging | Bulk | Bulk | Bulk | Bulk |
