Y14810R30000D9L

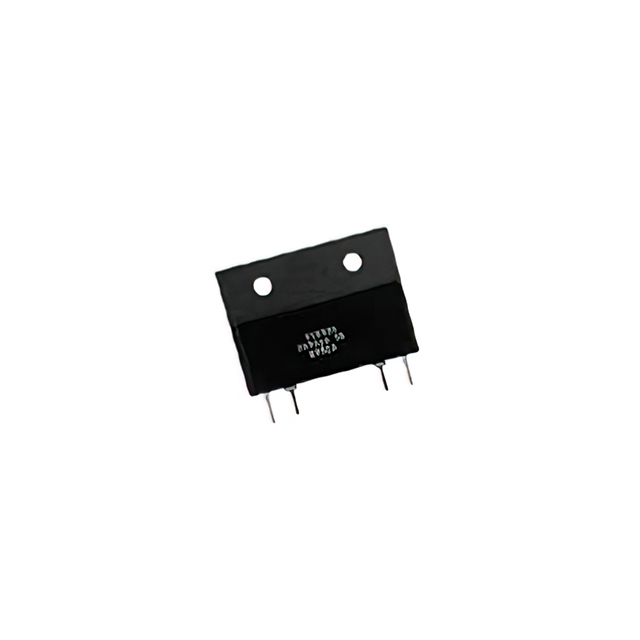

lmages are for reference only.Y14810R30000D9L
RES 0.3 OHM 10W 0.5% RADIAL
DatasheetRadial - 4 Leads
36,903 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
300 mOhms ±0.5% 10W Through Hole Resistor Radial - 4 Leads Current Sense, Moisture Resistant, Non-Inductive Metal Foil
Y14810R30000D9L
| Category | Resistors - Through Hole Resistors - |
| Manufacturer | VPG Foil Resistors |
| Series | VCS331Z |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Resistance | 300 mOhms |
| Tolerance | ±0.5% |
| Power (Watts) | 10W |
| Composition | Metal Foil |
| Features | Current Sense, Moisture Resistant, Non-Inductive |
| Temperature Coefficient | ±0.2ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | Radial - 4 Leads |
| Supplier Device Package | - |
| Size / Dimension | 1.339" L x 0.210" W (34.00mm x 5.33mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Number of Terminations | 4 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
|
|
|
| Part Number | Y14810R25000D9L | Y14810R25000F9L | Y14810R50000F9L | Y14810R60000D9L |
| Manufacturer | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | VCS331ZT 0R2500 0.5% | RES 0.25 OHM 10W 1% RADIAL | RES 0.5 OHM 1% 10W AXIAL | RES 0.6 OHM 10W 0.5% RADIAL |
| Series | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| Packaging | Bulk | Bulk | Bulk | Bulk |
