Y40232K26150B9W
lmages are for reference only.Y40232K26150B9W
FRSM1206 2K2615 TCR0.2 0.1% S W
Datasheet1206 (3216 Metric)
18,318 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2615 kOhms ±0.1% 0.3W Chip Resistor 1206 (3216 Metric) Non-Inductive Metal Foil
Y40232K26150B9W
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | VPG Foil Resistors |
| Series | FRSM |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Resistance | 2.2615 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.3W |
| Composition | Metal Foil |
| Features | Non-Inductive |
| Temperature Coefficient | ±0.2ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | - |
| Size / Dimension | 0.126" L x 0.062" W (3.20mm x 1.57mm) |
| Height - Seated (Max) | 0.025" (0.64mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

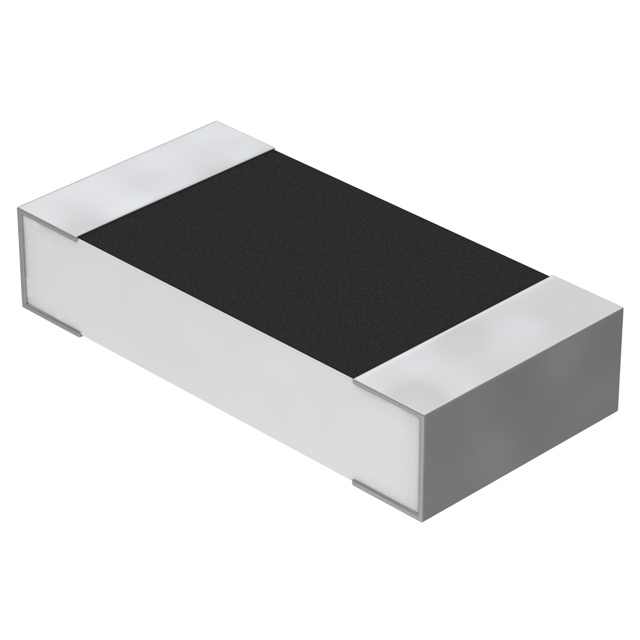

| Part Number | Y4023100R000A0W | Y4023100R000B0W | Y4023100R000B9W | Y4023100R000D0W |
| Manufacturer | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | RES SMD 100 OHM 0.05% 0.3W 1206 | FRSM1206 100R00 TCR0.2 0.1% B W | FRSM1206 100R00 TCR0.2 0.1% S W | FRSM1206 100R00 TCR0.2 0.5% B W |
| Series | VPG Foil Resistors | VPG Foil Resistors | ||
| Packaging | Tray | Bulk |
