Y4485V0069BT9L

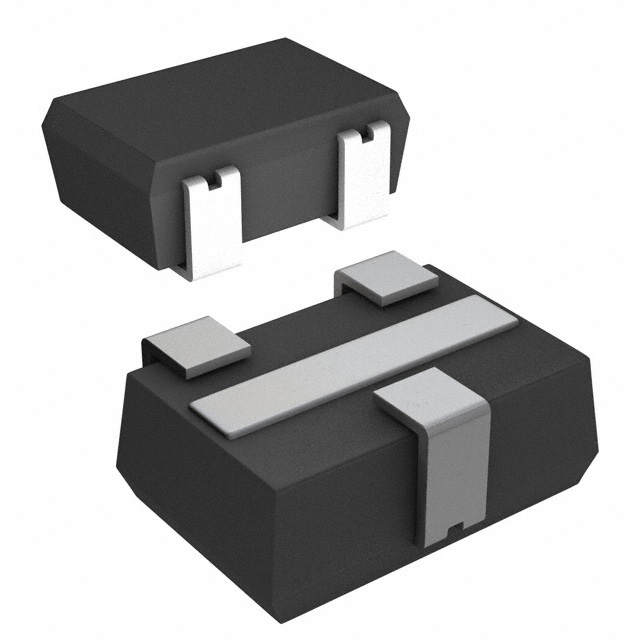

lmages are for reference only.Y4485V0069BT9L
DSMZ 10K/500R TCR0.2 B T S B
Datasheet1610 J-Lead (3 Terminals)
41,338 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
500, 10k Ohm ±0.1% 50mW Power Per Element Voltage Divider 2 Resistor Network/Array ±0.2ppm/°C 1610 J-Lead (3 Terminals)
Y4485V0069BT9L
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | VPG Foil Resistors |
| Series | DSMZ |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Voltage Divider |
| Resistance (Ohms) | 500, 10k |
| Tolerance | ±0.1% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | ±0.01% |
| Resistor-Ratio-Drift | ±0.1ppm/°C |
| Number of Pins | 3 |
| Power Per Element | 50mW |
| Temperature Coefficient | ±0.2ppm/°C |
| Operating Temperature | -65°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Applications | Voltage Divider (TCR Matched) |
| Mounting Type | Surface Mount |
| Package / Case | 1610 J-Lead (3 Terminals) |
| Supplier Device Package | - |
| Size / Dimension | 0.160" L x 0.106" W (4.06mm x 2.69mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | Y4485V0069BA9R | Y4485V0069BA9W | Y4485V0001AQ0W | Y4485V0001AT0R |
| Manufacturer | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | DSMZ 10K/500R TCR0.2 B A S T | DSMZ 10K/500R TCR0.2 B A S W | RES NETWORK 2 RES 10K OHM 1610 | RES NETWORK 2 RES 10K OHM 1610 |
| Series | DSMZ | DSMZ | DSMZ | DSMZ |
| Packaging | Bulk | Bulk | Tray | Tape & Reel (TR) |
