Product CatalogPart Number
YG14M74560S430
Manufacturer
TGSDescription
CRYSTALS 14.7456MHZ 20PPM 30PF S
Datasheet
DatasheetPackage
4-SMD, J-Lead
In Stock
79,700 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
YG14M74560S430
YG14M74560S430
lmages are for reference only.Payment Methods
Delivery Services
14.7456 MHz ±20ppm Crystal 30pF 100 Ohms 4-SMD, J-Lead
Quick Inquiry
YG14M74560S430
Specifications
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | TGS |
| Series | CCMD |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | MHz Crystal |
| Frequency | 14.7456 MHz |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 30pF |
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, J-Lead |
| Size / Dimension | 0.315" L x 0.150" W (8.00mm x 3.80mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | YG14M74560S430 | YG14M74560S408 | YG14M74560S408 | YG14M74560S410 |
| Manufacturer | TGS | TGS | TGS | TGS |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CRYSTALS 14.7456MHZ 20PPM 30PF S | CRYSTALS 14.7456MHZ 20PPM 8PF SM | CRYSTALS 14.7456MHZ 20PPM 8PF SM | CRYSTALS 14.7456MHZ 20PPM 10PF S |
| Series | TGS | TGS | TGS | TGS |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products

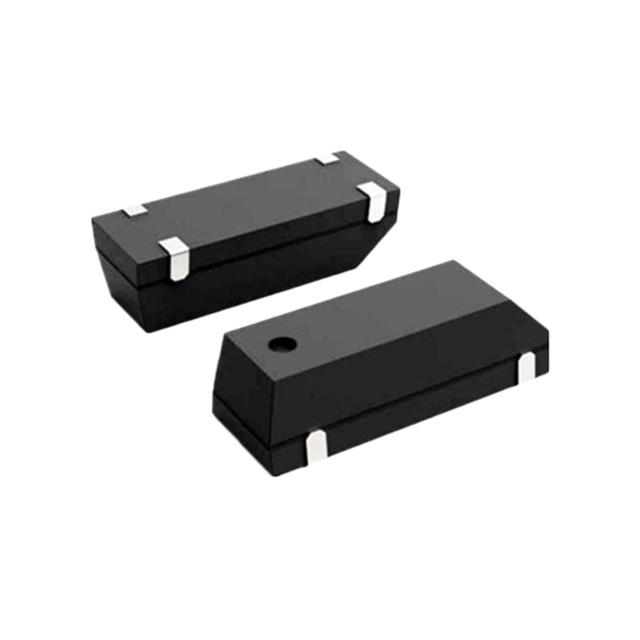

YG14M31818S408
