YPCL0025N
lmages are for reference only.YPCL0025N
PTC RESET FUSE 265V 100MA RADIAL
DatasheetRadial, Disc
103,928 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Ceramic PTC Resettable Fuse 265V 100 mA Ih Through Hole Radial, Disc
YPCL0025N
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Amphenol Thermometrics |
| Series | YP |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Ceramic |
| Voltage - Max | 265V |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Trip (It) | 200 mA |
| Current - Max | 1 A |
| Resistance - 25°C (Typ) | 25 Ohms |
| Operating Temperature | 0°C ~ 60°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.200" (5.08mm) |
| Approval Agency | CECC |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Grade | - |
| Qualification | - |
| Base Product Number | YPCL |
| Product Attribute |  |
 |
 |
 |

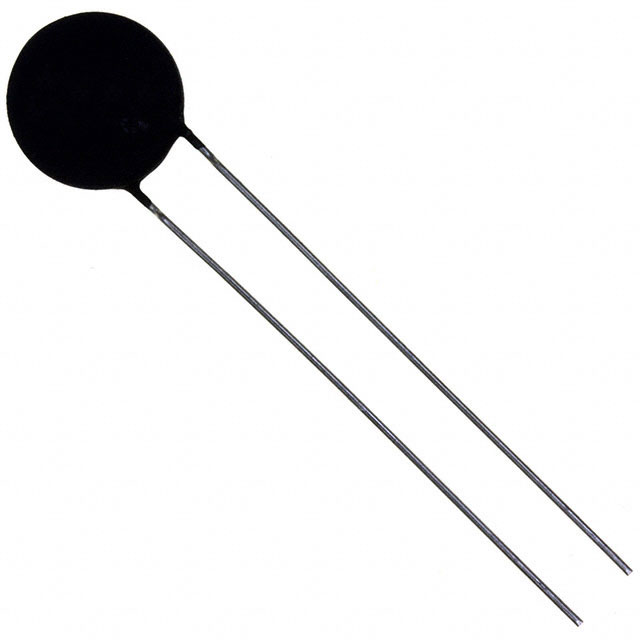

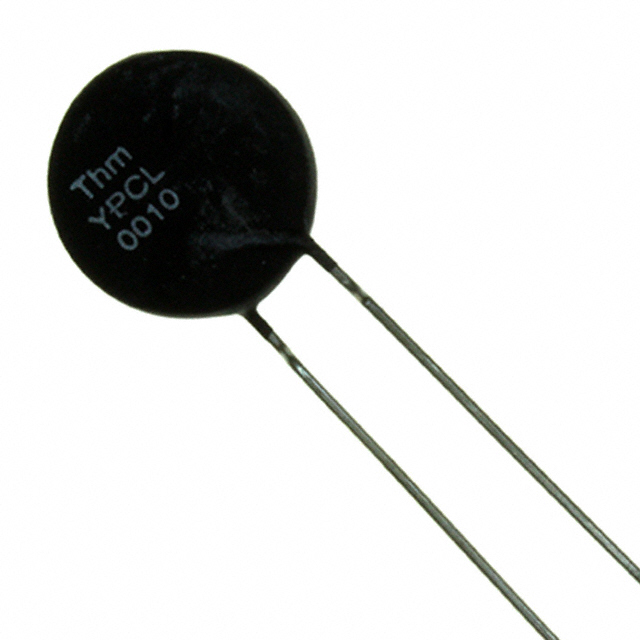

| Part Number | YPCL0025T | YPCL0006T | YPCL0010N | YPCL0010T |
| Manufacturer | Amphenol Thermometrics | Amphenol Thermometrics | Amphenol Thermometrics | Amphenol Thermometrics |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | PTC RESET FUSE 265V 100MA RADIAL | PTC RESET FUSE 265V 330MA RADIAL | PTC RESET FUSE 265V 200MA RADIAL | PTC RESET FUSE 265V 200MA RADIAL |
| Series | YP | YP | YP | YP |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
