Product CatalogPart Number
Z0603C680CSMST
Manufacturer
KEMETDescription
FERRITE BEAD 68 OHM 0603 1LN
Datasheet
DatasheetPackage
0603 (1608 Metric)
In Stock
53,811 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
Z0603C680CSMST
Z0603C680CSMST
lmages are for reference only.Payment Methods
Delivery Services
68 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0603 (1608 Metric) 300mA 350mOhm
Quick Inquiry
Z0603C680CSMST
Specifications
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | KEMET |
| Series | Z-SMS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 68 Ohms @ 100 MHz |
| Current Rating (Max) | 300mA |
| DC Resistance (DCR) (Max) | 350mOhm |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.037" (0.95mm) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Features | - |
| Base Product Number | Z0603C |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | Z0603C681CSMST | Z0603C101APMST | Z0603C101BPWZT | Z0603C102ASMST |
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FERRITE BEAD 680 OHM 0603 1LN | FERRITE BEAD 100 OHM 0603 1LN | FERRITE BEAD 100 OHM 0603 1LN | FERRITE BEAD 1 KOHM 0603 1LN |
| Series | Z-SMS | Z-PMS | Z-PWZ | Z-SMS |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
Z0603C101APMST
KEMET
Z0603C101BPWZT
KEMET
Z0603C102ASMST
KEMET
Z0603C102BPWZT
KEMET
Z0603C102BSMST
KEMET
Z0603C102FSMST
KEMET
Z0603C121APMST
KEMET

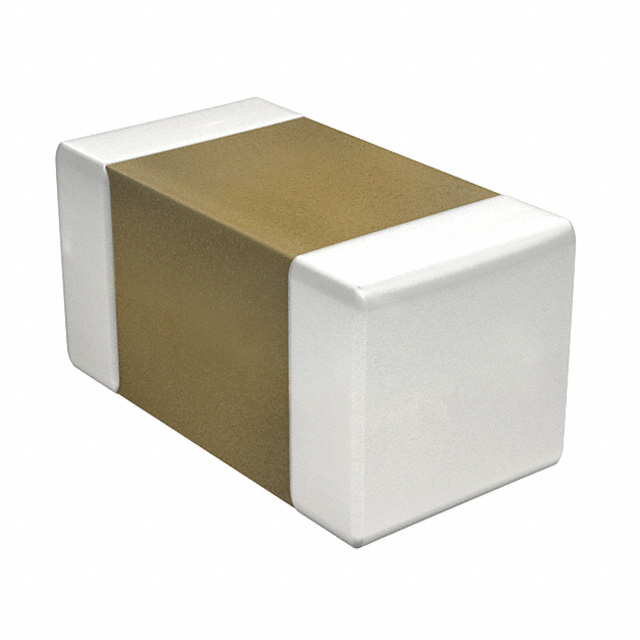

Z0603C121ASMST
