Product CatalogPart Number
ZBSS-9G-S+
Manufacturer
Mini-CircuitsDescription
RF FILTER BAND PASS 9GHZ SMA
Datasheet
DatasheetPackage
SMA In line Module
In Stock
39,849 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ZBSS-9G-S+
ZBSS-9G-S+
lmages are for reference only.Payment Methods
Delivery Services
9GHz Center Frequency Band Pass RF Filter (Radio Frequency) 6GHz Bandwidth 2.5dB SMA In line Module
Quick Inquiry
ZBSS-9G-S+
Specifications
| Category | Filters - RF Filters - |
| Manufacturer | Mini-Circuits |
| Series | - |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Frequency | 9GHz Center |
| Bandwidth | 6GHz |
| Filter Type | Band Pass |
| Ripple | - |
| Insertion Loss | 2.5dB |
| Mounting Type | Chassis Mount |
| Package / Case | SMA In line Module |
| Size / Dimension | 1.559" L x 0.598" W (39.60mm x 15.20mm) |
| Height (Max) | 0.698" (17.74mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

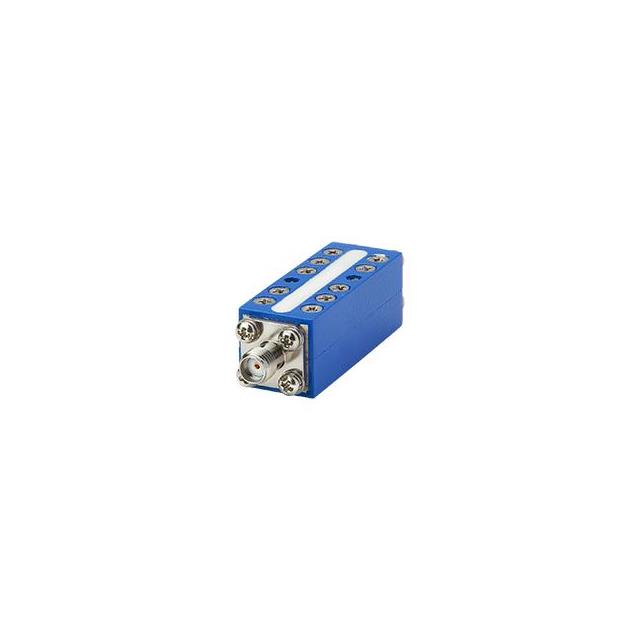

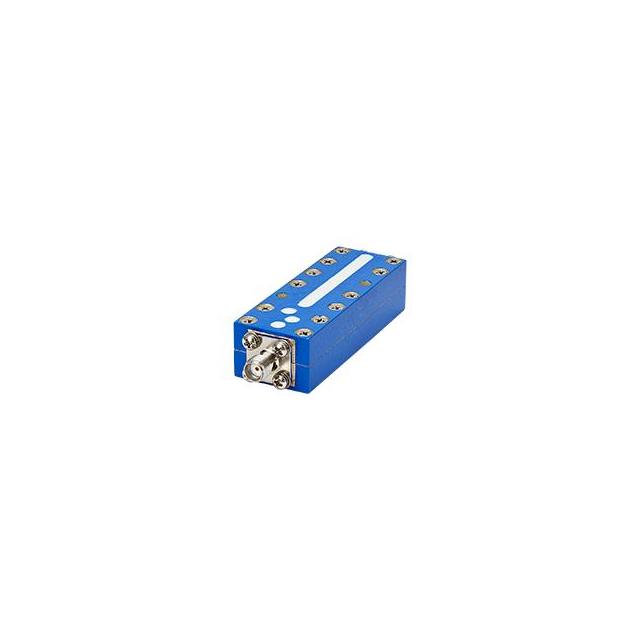

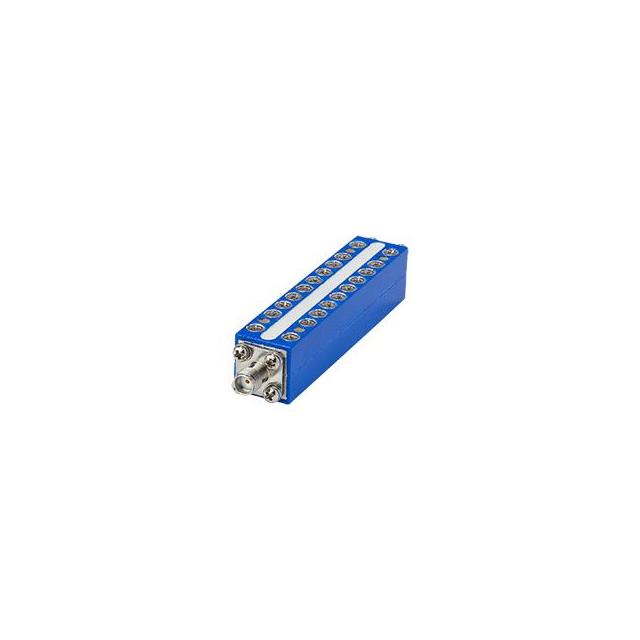

| Part Number | ZBSS-10G-S+ | ZBSS-2250-S+ | ZBSS-3G-S+ | ZBSS-6G-S+ |
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER BAND PASS 10GHZ SMA | RF FILTER BAND PASS 2.25GHZ SMA | RF FILTER BAND PASS 3GHZ SMA | RF FILTER BAND PASS 6GHZ SMA |
| Series | - | - | - | - |
| Packaging | Bag | Bag | Bag | Bag |
