ZF1-10-01-T-WT-TR
Manufacturer
Samtec Inc.Description
CONN FFC BOTTOM 10POS 1MM R/A
Datasheet
DatasheetPackage
-
In Stock
40,698 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ZF1-10-01-T-WT-TR
ZF1-10-01-T-WT-TR
lmages are for reference only.Payment Methods
Delivery Services

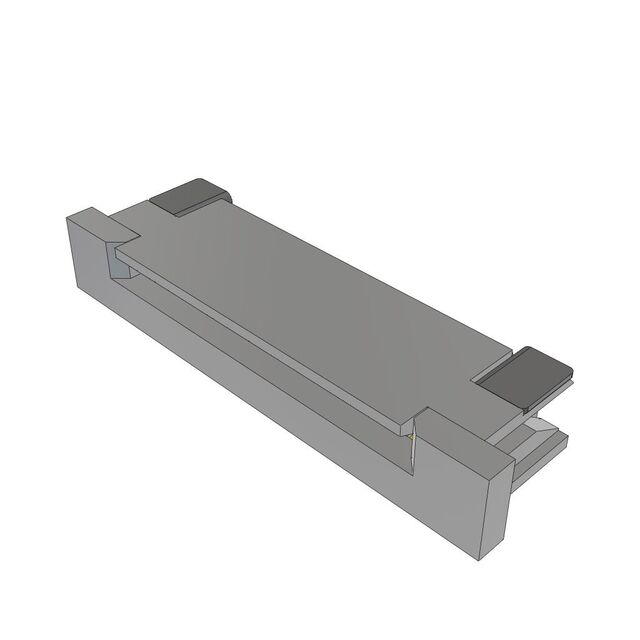

10 Position FFC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Quick Inquiry
ZF1-10-01-T-WT-TR
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Samtec Inc. |
| Series | ZF1 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Flat Flex Type | FFC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 10 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.118" (3.00mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | - |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-2 |
| Current Rating (Amps) | - |
| Contact Finish Thickness | - |
| Housing Color | Natural |
| Actuator Color | Black |
| Mating Cycles | - |
| Base Product Number | ZF1-10 |
