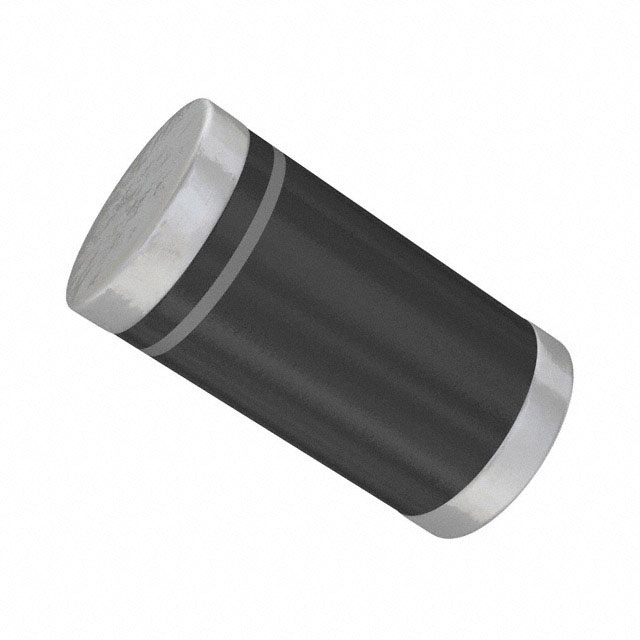

ZMY9V1-GS08
lmages are for reference only.ZMY9V1-GS08
DIODE ZENER 9.1V 1W DO213AB
DatasheetDO-213AB, MELF (Glass)
92,624 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 9.1 V 1 W ±5% Surface Mount DO-213AB
ZMY9V1-GS08
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 9.1 V |
| Tolerance | ±5% |
| Power - Max | 1 W |
| Impedance (Max) (Zzt) | 4 Ohms |
| Current - Reverse Leakage @ Vr | 500 nA @ 7 V |
| Voltage - Forward (Vf) (Max) @ If | - |
| Operating Temperature | 175°C |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AB, MELF (Glass) |
| Supplier Device Package | DO-213AB |
| Base Product Number | ZMY9V1 |
| Product Attribute |  |
 |
 |
 |

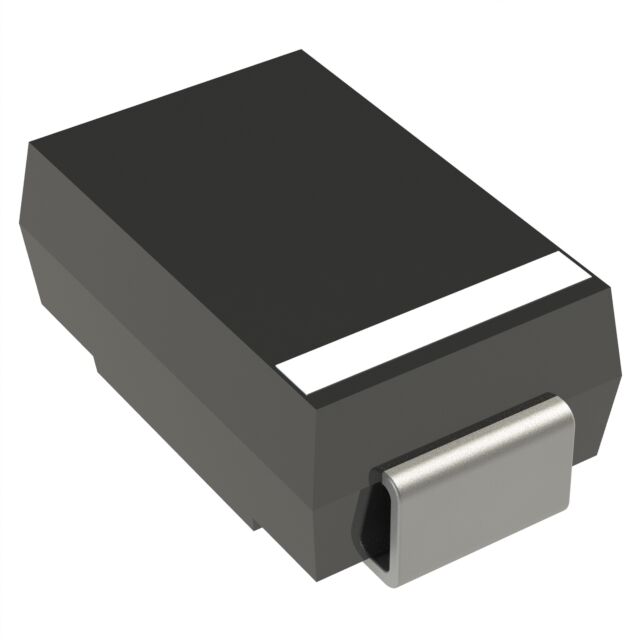

| Part Number | ZMY9V1-GS18 | Z02W7.5VS | Z1SMA1 | Z1SMA10 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | SMC Diode Solutions | Diotec Semiconductor | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ZENER 9.1V 1W DO213AB | DIODE ZENER 7.5V 200MW SOT23 | DIODE ZENER 1V 1W DO214AC | DIODE ZENER 10V 1W DO214AC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
