ZN2PD2-50-S+
lmages are for reference only.ZN2PD2-50-S+
2 WAYS PWRSPLTR, 500 - 5000 MHZ
DatasheetModule, SMA Connectors
65,731 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Power Divider 500 MHz ~ 5 GHz Isolation (Min) 19dB, 4° Imbalance (Max) Module, SMA Connectors
ZN2PD2-50-S+
| Category | RF and Wireless - RF Power Dividers-Splitters - |
| Manufacturer | Mini-Circuits |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Insertion Loss | 0.9dB |
| Frequency | 500 MHz ~ 5 GHz |
| Specifications | Isolation (Min) 19dB, 4° Imbalance (Max) |
| Size / Dimension | 4.500" L x 2.500" W x 0.670" H (114.30mm x 63.50mm x 17.02mm) |
| Package / Case | Module, SMA Connectors |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

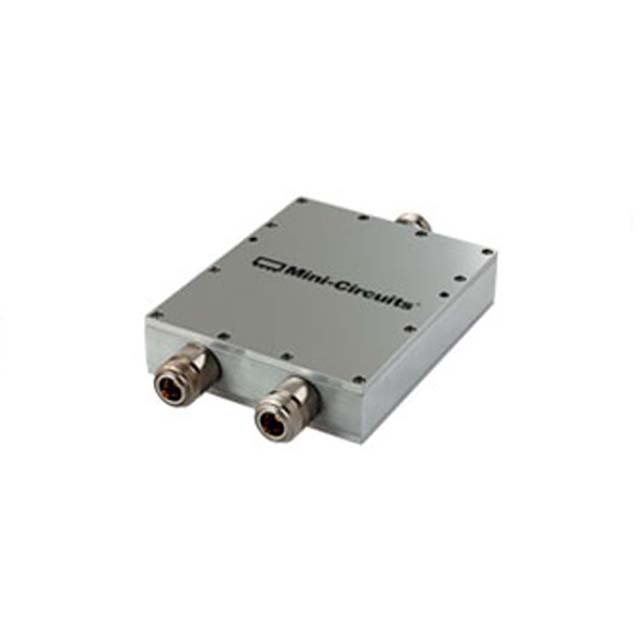

| Part Number | ZN2PD2-50-S+ | ZN2PD2-63-S+ | ZN2PD2-63-S+ | ZN2PD2-63A-N+ |
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 2 WAYS PWRSPLTR, 500 - 5000 MHZ | PWR DIV / SMA / ROHS | PWR DIV / SMA / ROHS | PWR DIV / N / ROHS |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray |
