Product CatalogPart Number
ZTS1R52412
Manufacturer
Cosel USA, Inc.Description
DC DC CONVERTER 12V 1.6W
Datasheet
DatasheetPackage
6-DIP Module
In Stock
55,102 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ZTS1R52412
ZTS1R52412

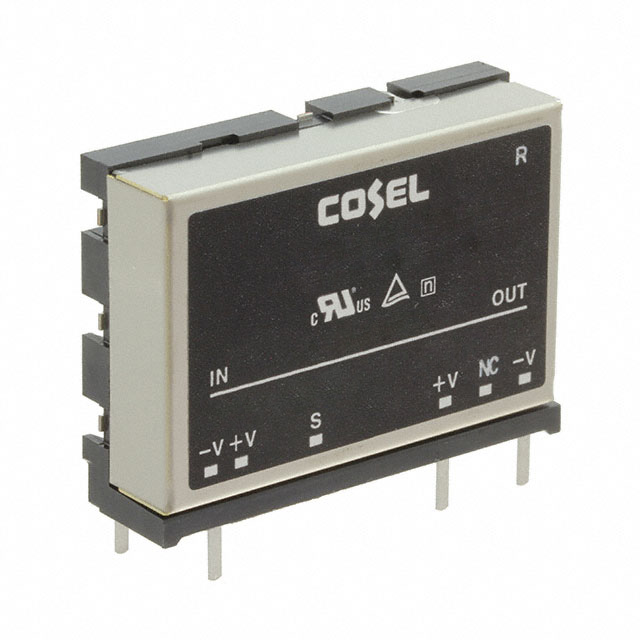

lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 130mA 18V - 36V Input
Quick Inquiry
ZTS1R52412
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Cosel USA, Inc. |
| Series | ZTS (1.5W) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 130mA |
| Power (Watts) | 1.6 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -20°C ~ 71°C (With Derating) |
| Efficiency | 71% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.10" L x 0.39" W x 0.83" H (28.0mm x 10.0mm x 21.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 500 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | ZTS1R52415 | ZTS1R52405 | ZTS1R52405-G | ZTS1R52405-G |
| Manufacturer | Cosel USA, Inc. | Cosel USA, Inc. | Cosel USA, Inc. | Cosel USA, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 15V 1.5W | DC DC CONVERTER 5V 1.5W | DC DC CONVERTER 5V 1.5W | DC DC CONVERTER 5V 1.5W |
| Series | Cosel USA, Inc. | Cosel USA, Inc. | Cosel USA, Inc. | Cosel USA, Inc. |
| Packaging | Box | Box | Box | Box |
