ZTT-20.00MX
lmages are for reference only.Payment Methods
Delivery Services
20 MHz Ceramic Resonator Built in Capacitor 30 pF ±0.3% 30 Ohms -20°C ~ 80°C Through Hole
ZTT-20.00MX
| Category | Crystals, Oscillators, Resonators - Resonators - |
| Manufacturer | ECS Inc. |
| Series | ZTT |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Ceramic |
| Frequency | 20 MHz |
| Frequency Stability | ±0.3% |
| Frequency Tolerance | ±0.5% |
| Features | Built in Capacitor |
| Capacitance | 30 pF |
| Impedance | 30 Ohms |
| Operating Temperature | -20°C ~ 80°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 3 Lead, 2.50mm Pitch |
| Size / Dimension | 0.394" L x 0.197" W (10.00mm x 5.00mm) |
| Height | 0.394" (10.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

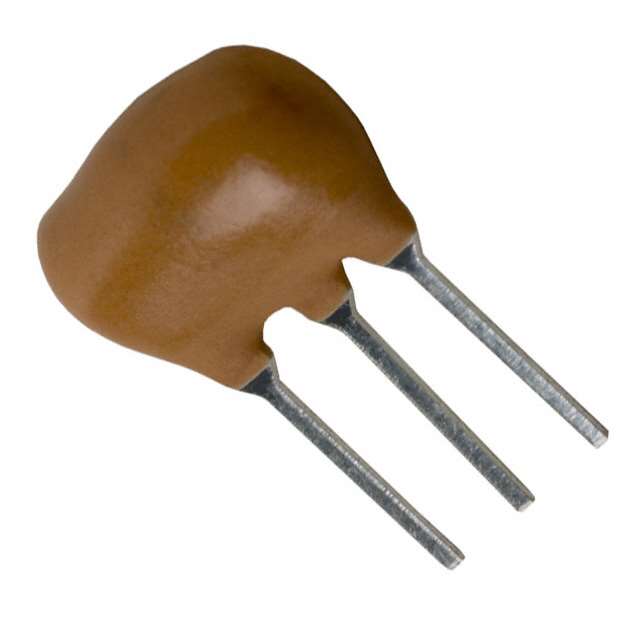

| Part Number | ZTT-2.00MG | ZTA-6.00MG | ZTA-2.00MG | ZTT-6.00MG |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CERAMIC RES 2.0000MHZ 30PF T/H | CERAMIC RES 6.0000MHZ T/H | CERAMIC RES 2.0000MHZ T/H | CERAMIC RES 6.0000MHZ 30PF T/H |
| Series | ZTT | ZTA | ZTA | ZTT |
| Packaging | Bulk | Bulk | Bulk | Bulk |
