ZVBP-9500-S+
lmages are for reference only.ZVBP-9500-S+
RF FILTER BANDPASS 9.5GHZ MODULE
DatasheetModule, SMA Connectors
89,042 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9.5GHz Center Frequency Band Pass RF Filter (Radio Frequency) 10MHz Bandwidth 2.5dB Module, SMA Connectors
ZVBP-9500-S+
| Category | Filters - RF Filters - |
| Manufacturer | Mini-Circuits |
| Series | ZVBP-9500-S+ |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Frequency | 9.5GHz Center |
| Bandwidth | 10MHz |
| Filter Type | Band Pass |
| Ripple | - |
| Insertion Loss | 2.5dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension | 3.571" L x 1.201" W (90.70mm x 30.50mm) |
| Height (Max) | 0.984" (25.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

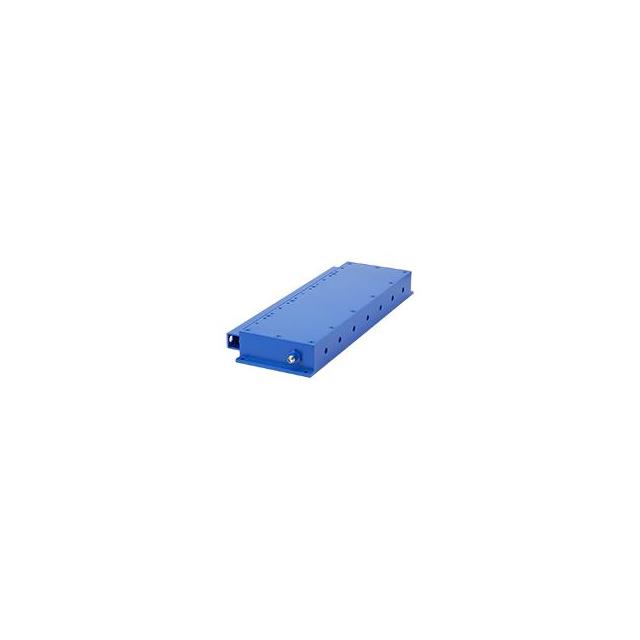

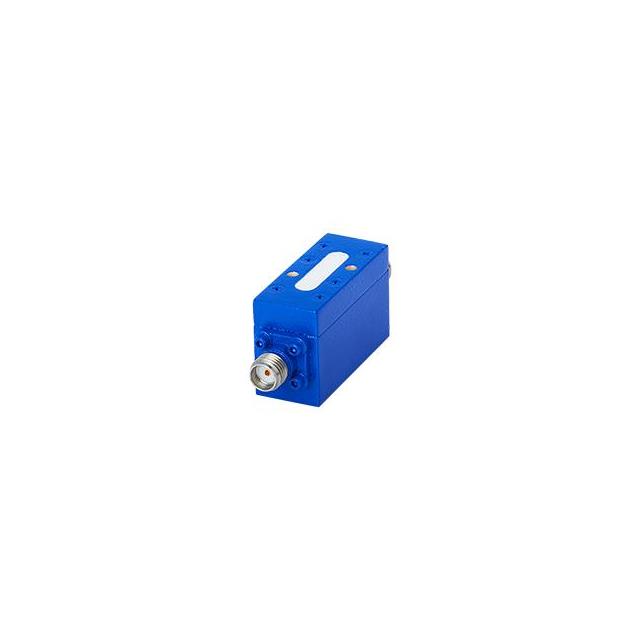

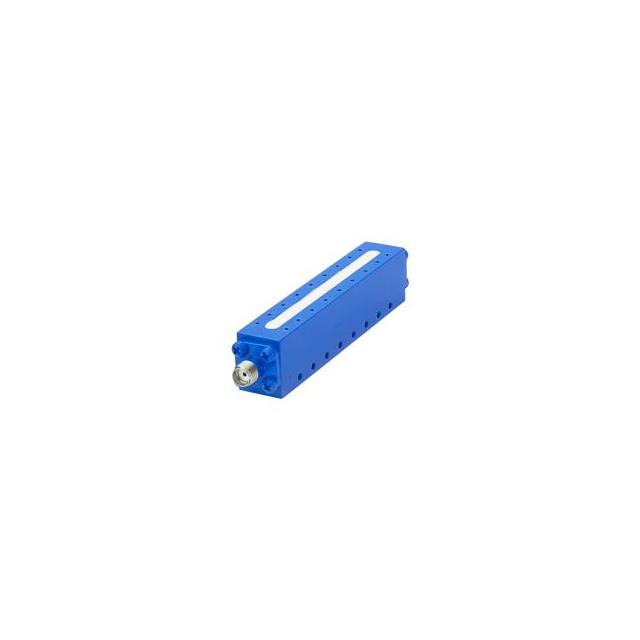

| Part Number | ZVBP-909-S+ | ZVBP-909A-S+ | ZVBP-9750-S+ | ZVBP-9R6G-S+ |
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER BAND PASS 908.5MHZ MOD | RF FILTER BAND PASS 908.5MHZ MOD | RF FILTER BAND PASS 9.75GHZ MOD | RF FILTER BANDPASS 9.6GHZ MODULE |
| Series | ZVBP-909-S+ | ZVBP-909A-S+ | ZVBP-9750-S+ | ZVBP-9R6G-S+ |
| Packaging | Tray | Tray | Tray | Tray |
