Product CatalogPart Number
ZX60-112LN+
Manufacturer
Mini-CircuitsDescription
LNA, 400 - 1100 MHZ
Datasheet
DatasheetPackage
Module, SMA Connectors
In Stock
93,325 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ZX60-112LN+
ZX60-112LN+
lmages are for reference only.Payment Methods
Delivery Services
RF Amplifier IC Cellular 400MHz ~ 1.1GHz
Quick Inquiry
ZX60-112LN+
Specifications
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | Mini-Circuits |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Frequency | 400MHz ~ 1.1GHz |
| P1dB | 16.5dBm |
| Gain | 27dB |
| Noise Figure | 1.2dB |
| RF Type | Cellular |
| Voltage - Supply | 5V |
| Current - Supply | 150mA |
| Test Frequency | 400MHz ~ 1.1GHz |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Supplier Device Package | - |
| Base Product Number | ZX60 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |  |  |  |
| Part Number | ZX60-02203LPN+ | ZX60-05113LN+ | ZX60-06183LN+ | ZX60-06203ALN+ |
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | COAXIAL AMP, 2000 - 20000 MHZ | IC RF AMP GPS 5GHZ-11GHZ SMA | IC RF AMP RADAR 6GHZ-18GHZ SMA | LNA, 6000 - 20000 MHZ, 50 OHM |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products
ZX60-02203LPN+
Mini-Circuits
ZX60-05113LN+
Mini-Circuits
ZX60-06183LN+
Mini-Circuits
ZX60-06203ALN+
Mini-Circuits
ZX60-0916LN-S+
Mini-Circuits
ZX60-100VH+
Mini-Circuits
ZX60-100VHX+
Mini-Circuits
ZX60-123LN-S+
Mini-Circuits
ZX60-14012L-S+
Mini-Circuits
ZX60-153LN-S+
Mini-Circuits
ZX60-183-S+
Mini-Circuits
ZX60-183A-S+
Mini-Circuits
ZX60-24-S+
Mini-Circuits
ZX60-2411BM-S+
Mini-Circuits
ZX60-242GLN-S+
Mini-Circuits
ZX60-242LN-S+
Mini-Circuits
ZX60-24A-S+
Mini-Circuits

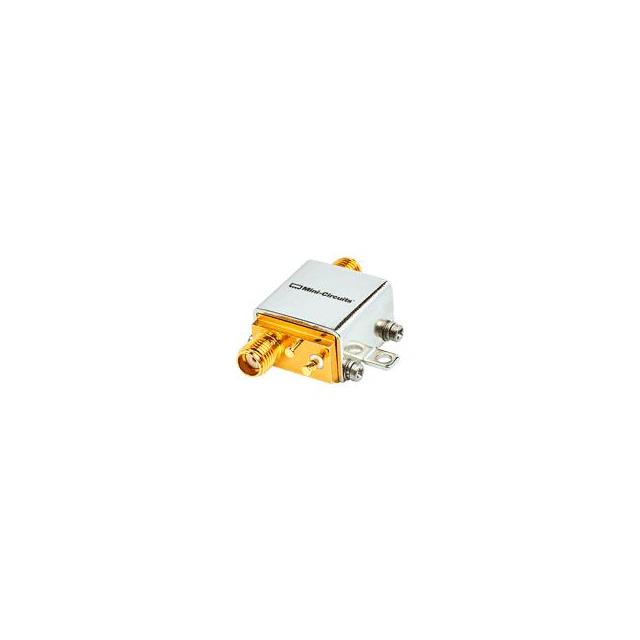

ZX60-2510MA-S+
