ZX75-12M-S+
lmages are for reference only.ZX75-12M-S+
RF FILTER BAND PASS 12MHZ INLINE
DatasheetInline, SMA Connection, F and M
104,399 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12MHz Center Frequency Band Pass RF Filter (Radio Frequency) 6MHz Bandwidth 3.5dB Inline, SMA Connection, F and M
ZX75-12M-S+
| Category | Filters - RF Filters - |
| Manufacturer | Mini-Circuits |
| Series | ZX75 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Frequency | 12MHz Center |
| Bandwidth | 6MHz |
| Filter Type | Band Pass |
| Ripple | - |
| Insertion Loss | 3.5dB |
| Mounting Type | Free Hanging (In-Line) |
| Package / Case | Inline, SMA Connection, F and M |
| Size / Dimension | 1.200" L x 0.750" W (30.48mm x 19.05mm) |
| Height (Max) | 0.490" (12.45mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

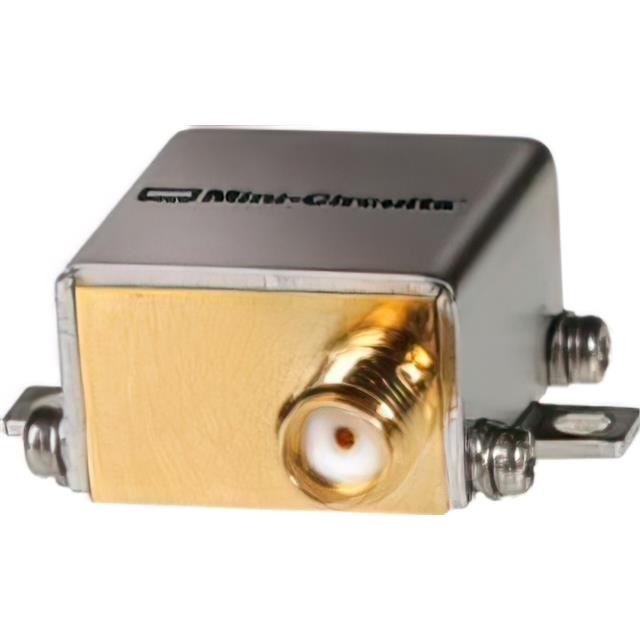

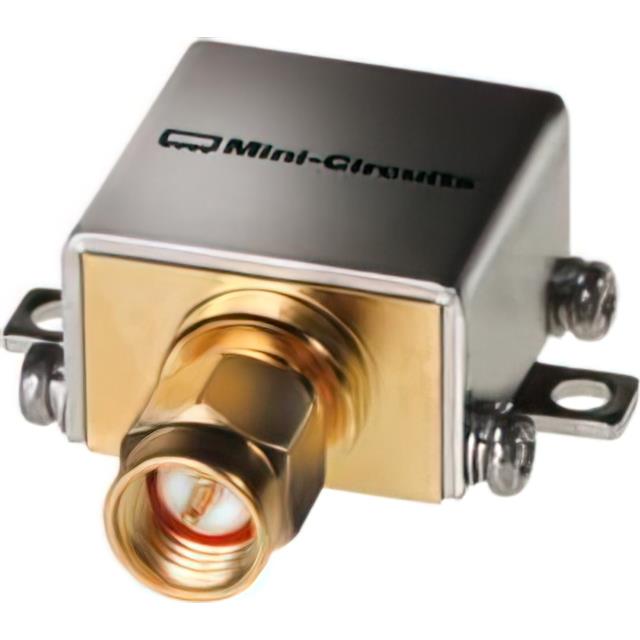

| Part Number | ZX75-12-S+ | ZX75BS-5468-S+ | ZX75LP-216-S+ | ZLSS-4G-S+ |
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER BAND PASS 12MHZ INLINE | RF FILTER BAND STOP 14MHZ INLINE | RF FILTER LOW PASS 232MHZ INLINE | RF FILTER LOW PASS 4GHZ MODULE |
| Series | ZX75 | ZX75BS | ZX75LP | ZLSS-4G-S+ |
| Packaging | Tray | Tray | Tray | Bulk |
