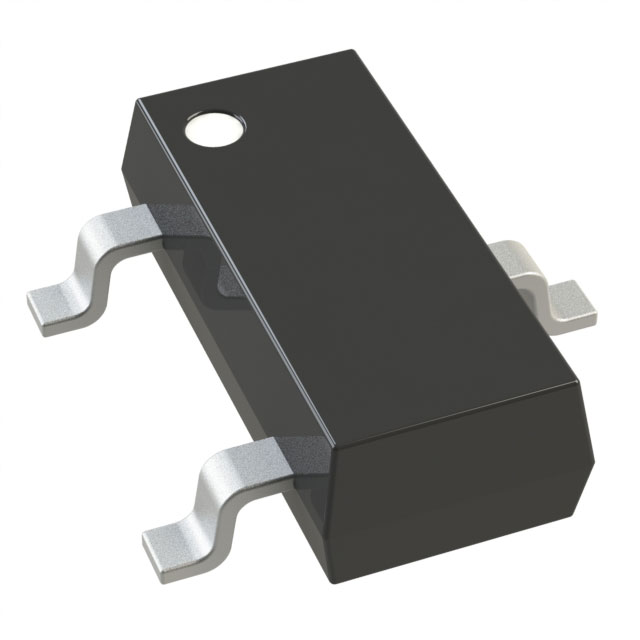

N-Channel 20 V 1.7A (Ta) 625mW (Ta) Surface Mount SOT-23-3
ZXM61N02FTA
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 1.7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.7V, 4.5V |
| Rds On (Max) @ Id, Vgs | 180mOhm @ 930mA, 4.5V |
| Vgs(th) (Max) @ Id | 700mV @ 250µA (Min) |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 160 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 625mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | ZXM61N02 |
| Gate Charge (Qg) (Max) @ Vgs | 3.4 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ZXM61N02FTC | ZXM61N03FTA | ZXM61N03FTC | ZXM61P02FTA |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 20V 1.7A SOT23-3 | MOSFET N-CH 30V 1.4A SOT23-3 | MOSFET N-CH 30V 1.4A SOT23-3 | MOSFET P-CH 20V 900MA SOT23-3 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
