N-Channel 70 V 2.7A (Ta) 2W (Ta) Surface Mount SOT-223
ZXMN7A11GQTA
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 70 V |
| Current - Continuous Drain (Id) @ 25°C | 2.7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 130mOhm @ 4.4A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 298 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-223 |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 7.4 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | ZXMN7A11GTA | ZXMN7A11KTC | ZXM41N10FTA | ZXM41N10FTC |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

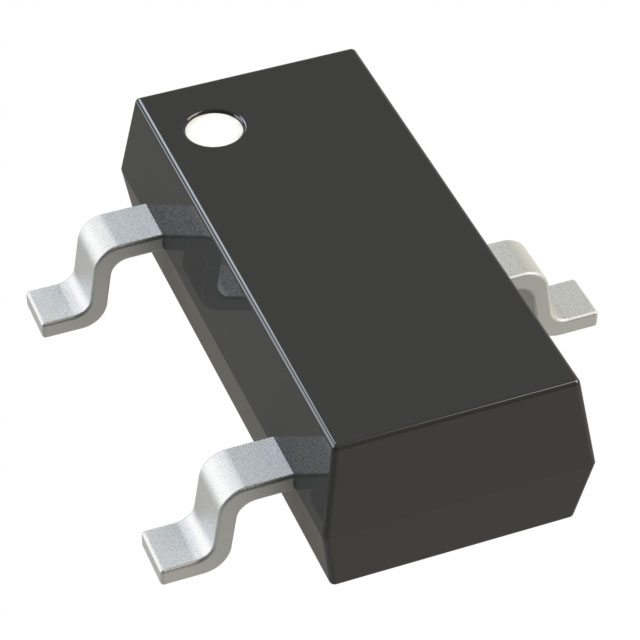

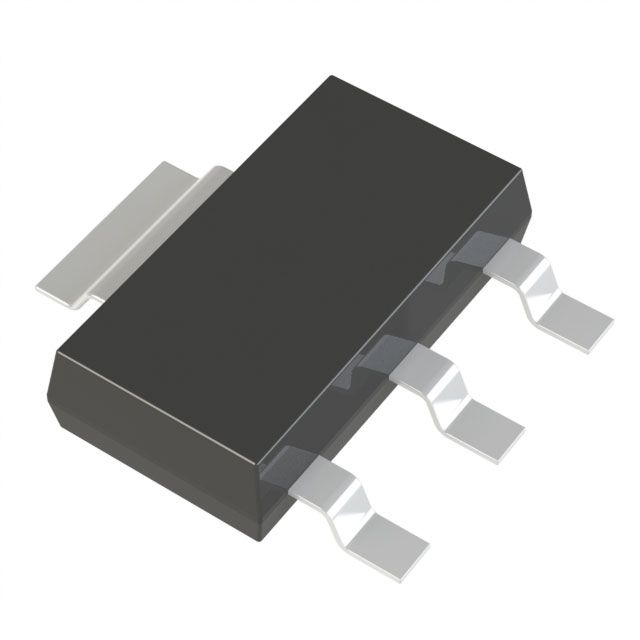

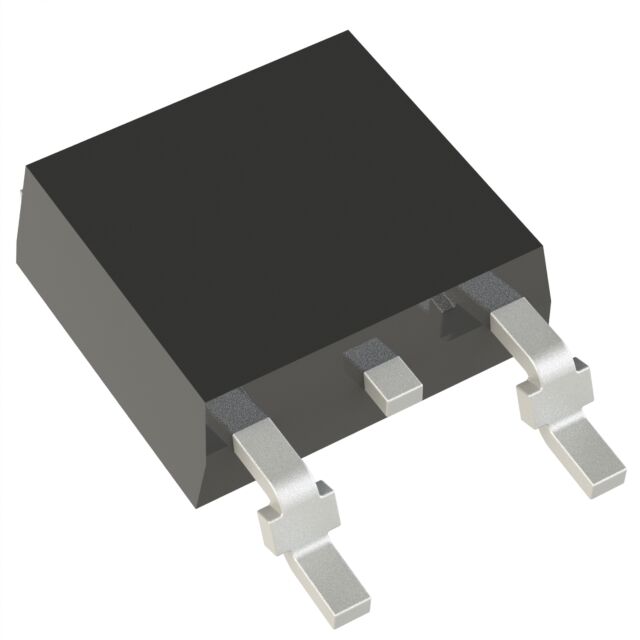

| Description | MOSFET N-CH 70V 2.7A SOT223 | MOSFET N-CH 70V 4.2A TO252-3 | MOSFET N-CH 100V 170MA SOT23-3 | MOSFET N-CH 100V 170MA SOT23-3 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
