VS-GB90DA120U
lmages are for reference only.VS-GB90DA120U
IGBT MOD 1200V 149A 862W SOT227
DatasheetSOT-227-4, miniBLOC
14,270 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT Module NPT Single 1200 V 149 A 862 W Chassis Mount SOT-227
VS-GB90DA120U
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | NPT |
| Configuration | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 149 A |
| Power - Max | 862 W |
| Vce(on) (Max) @ Vge, Ic | 3.8V @ 15V, 75A |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | - |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227 |
| Base Product Number | GB90 |
| Product Attribute |  |
 |
|
 |
| Part Number | VS-GB90DA60U | VS-GB90SA120U | VS-150MT060WDF | VS-CPV364M4KPBF |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

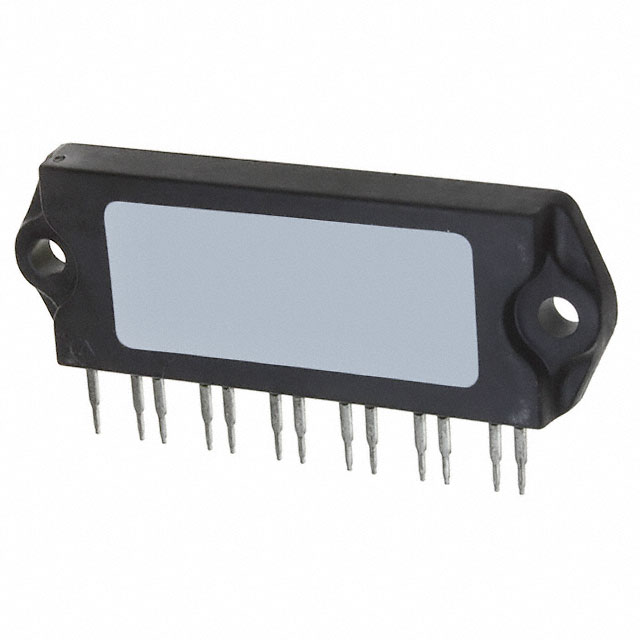

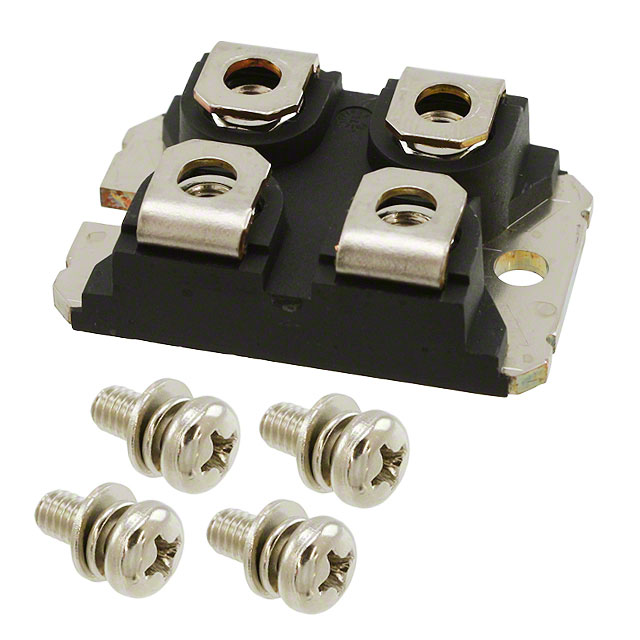

| Description | IGBT MOD 600V 147A 625W SOT227 | IGBT MOD 1200V 149A 862W SOT227 | IGBT MOD 600V 138A 12MTP PRESS | IGBT MODULE 600V 24A 63W IMS-2 |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Bulk |
