Product CatalogPart Number
0402CS-36NXJRW
Manufacturer
CoilcraftDescription
FIXED IND 36NH 320MA 440MOHM SM
Datasheet
DatasheetPackage
0402 (1005 Metric)
In Stock
19,889 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0402CS-36NXJRW
0402CS-36NXJRW

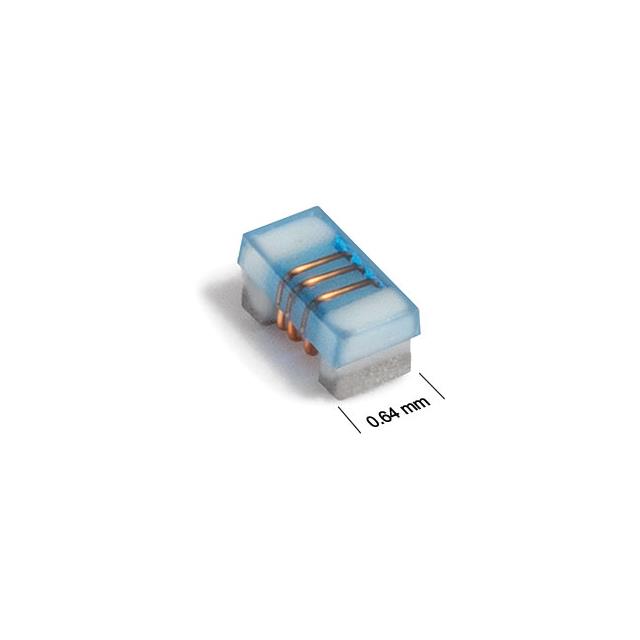

lmages are for reference only.Payment Methods
Delivery Services
36 nH Unshielded Wirewound Inductor 320 mA 440mOhm Max 0402 (1005 Metric)
Quick Inquiry
0402CS-36NXJRW
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | 0402CS |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 36 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 320 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 440mOhm Max |
| Q @ Freq | 44 @ 900MHz |
| Frequency - Self Resonant | 2.32GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.047" L x 0.025" W (1.19mm x 0.64mm) |
| Height - Seated (Max) | 0.026" (0.66mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 0402CS-36NXGRW | 0402CS-30NXGRW | 0402CS-30NXJRW | 0402CS-33NXGRW |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| RoHS Status | ||||
| Description | FIXED IND 36NH 320MA 440MOHM SM | FIXED IND 30NH 400MA 300MOHM SM | FIXED IND 30NH 400MA 300MOHM SM | FIXED IND 33NH 400MA 300MOHM SM |
| Series | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
