Product CatalogPart Number
0430451083
Manufacturer
MolexDescription
CONN HEADER VERT 10POS 3MM
Datasheet
DatasheetPackage
-
In Stock
51,891 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0430451083
0430451083
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 10 position 0.118" (3.00mm)
Quick Inquiry
0430451083
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Molex |
| Series | Micro-Fit 3.0 43045 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.118" (3.00mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.125" (3.18mm) |
| Overall Contact Length | - |
| Insulation Height | 0.390" (9.91mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Board Guide, Glow Wire Compliant, Pick and Place |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 8A |
| Voltage Rating | 600V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Base Product Number | 043045 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

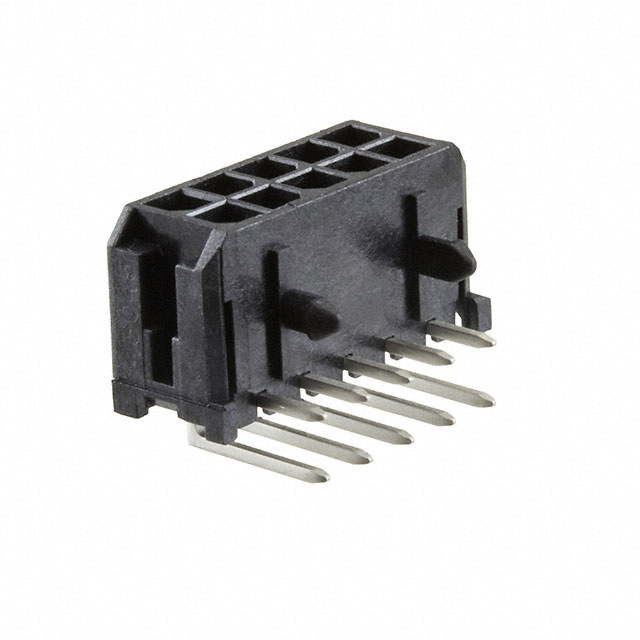

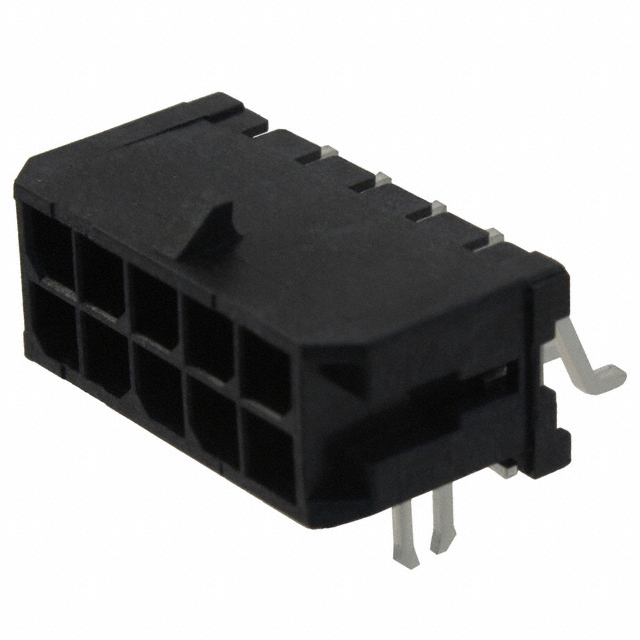

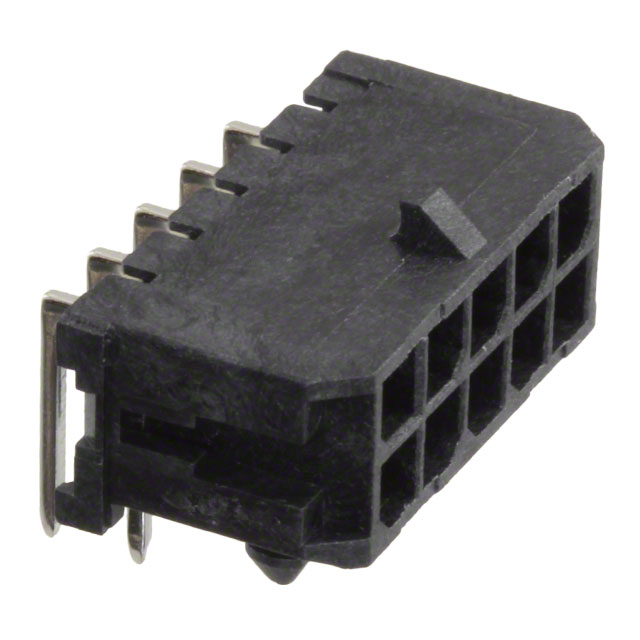

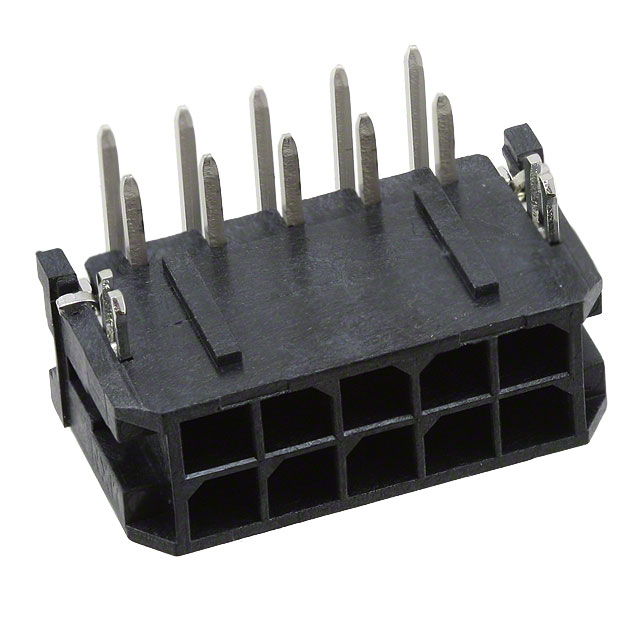

| Part Number | 0430451000 | 0430451001 | 0430451002 | 0430451006 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HEADER R/A 10POS 3MM | CONN HEADER R/A 10POS 3MM | CONN HEADER R/A 10POS 3MM | CONN HEADER SMD R/A 10POS 3MM |
| Series | Micro-Fit 3.0 43045 | Micro-Fit 3.0 43045 | Micro-Fit 3.0 43045 | Micro-Fit 3.0 43045 |
| Packaging | Tray | Tray | Tray | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
0430450200
Molex

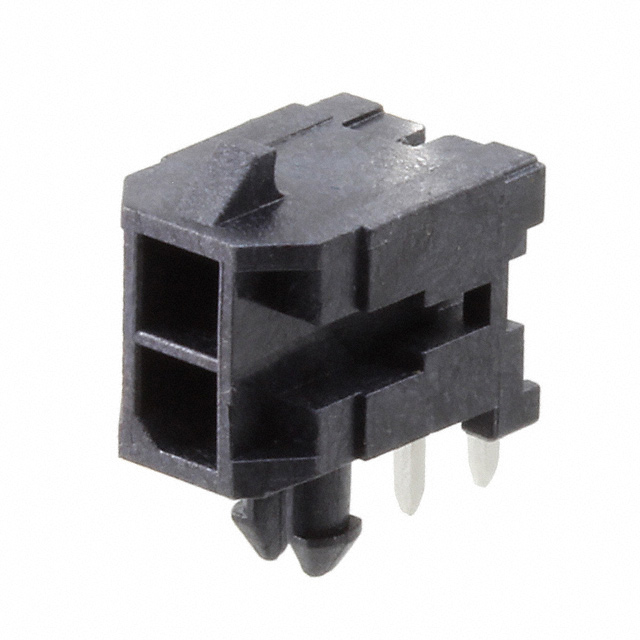

0430450201
Molex

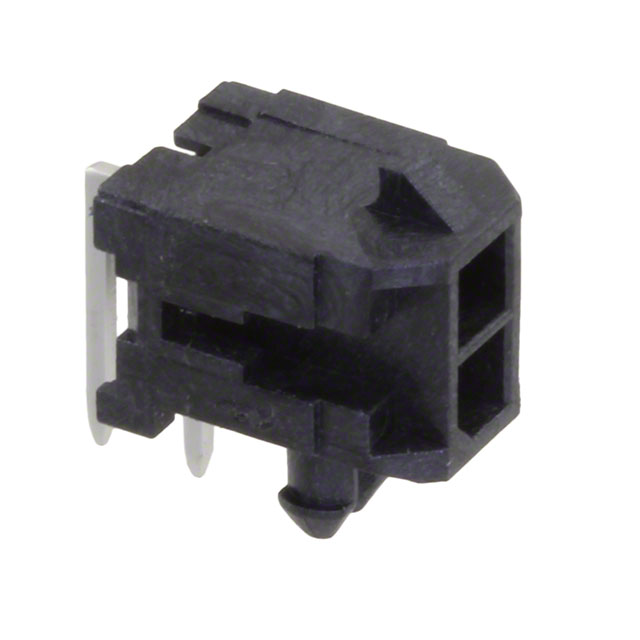

0430450202
Molex

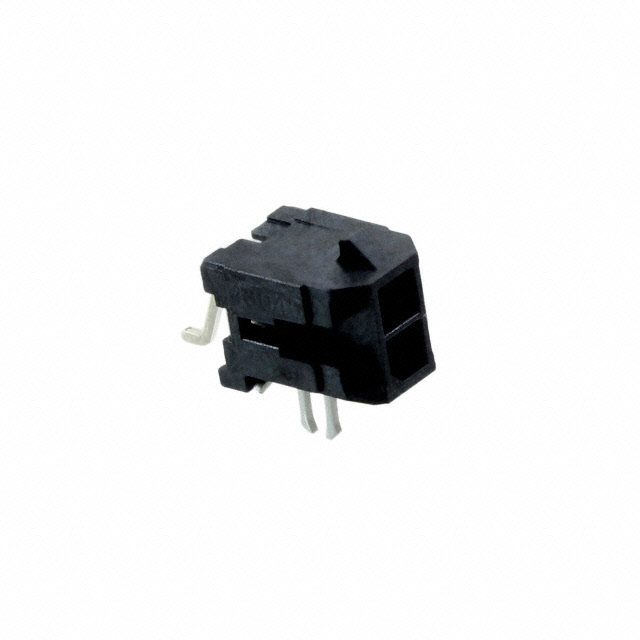

0430450206
Molex

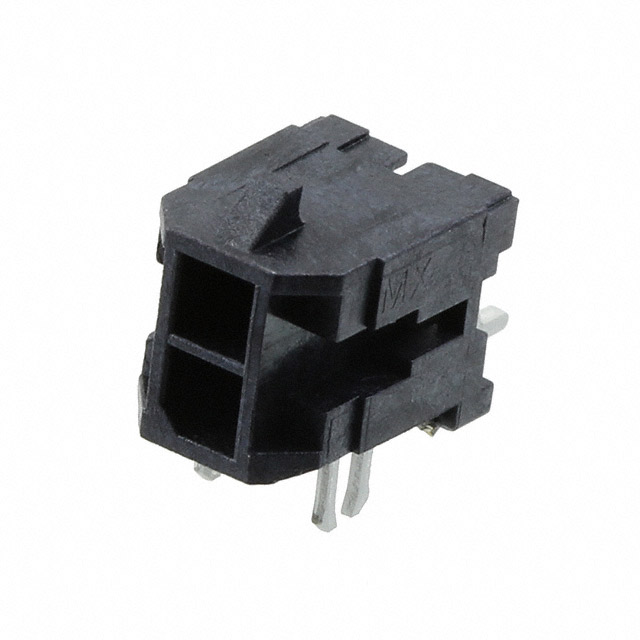

0430450207
Molex

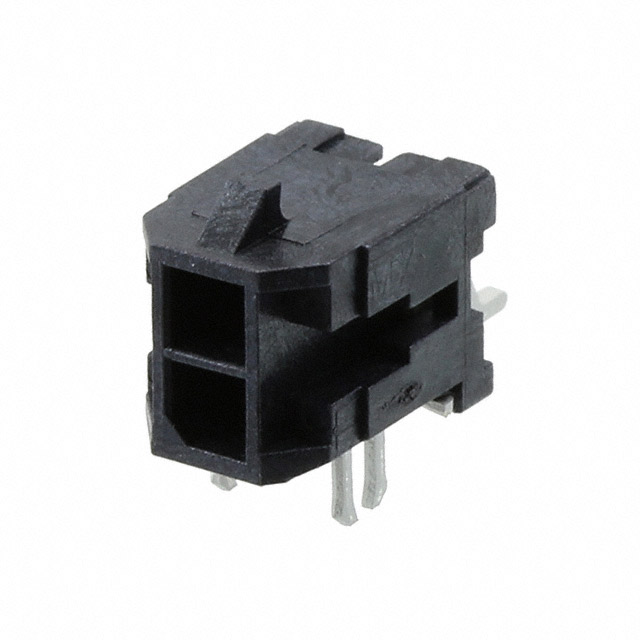

0430450208
Molex

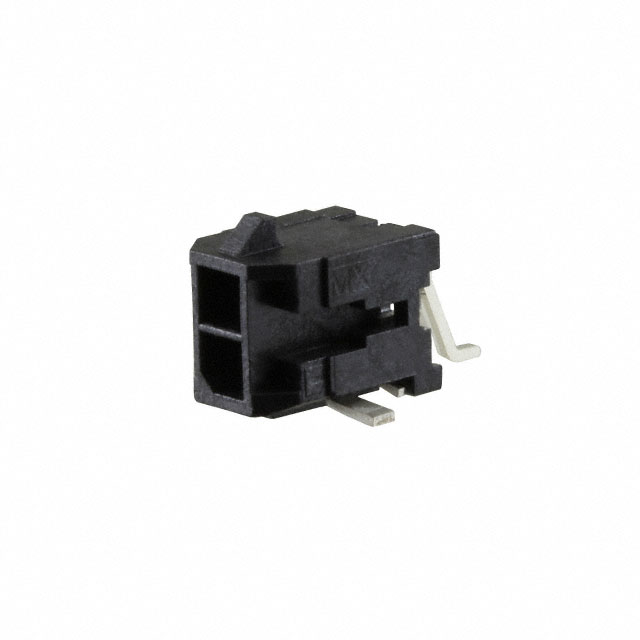

0430450209
Molex

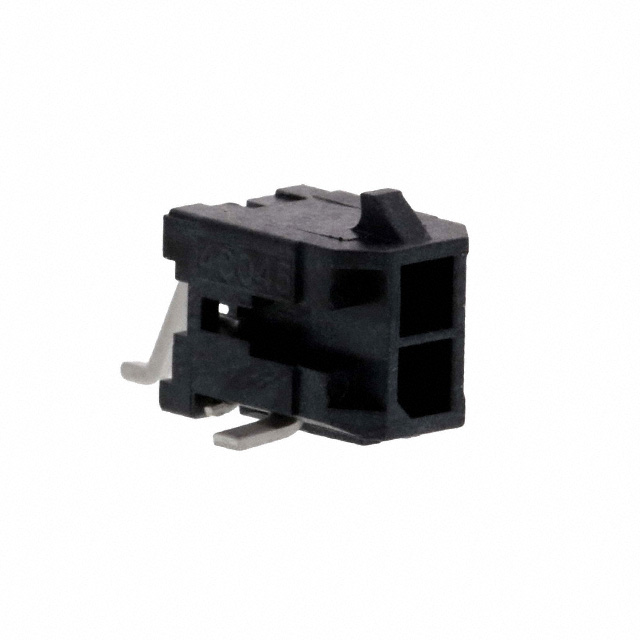

0430450210
Molex

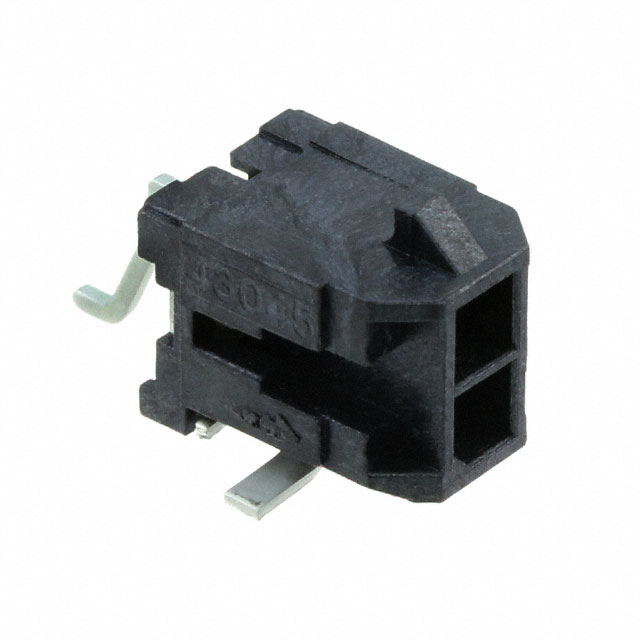

0430450211
Molex

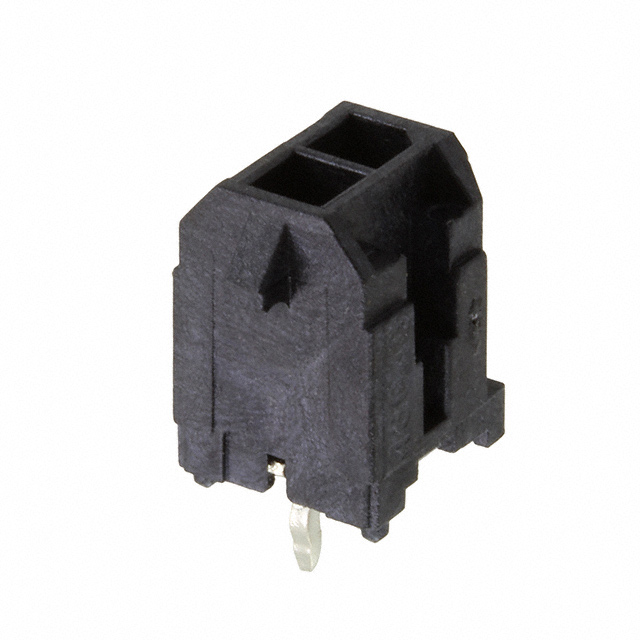

0430450212
Molex

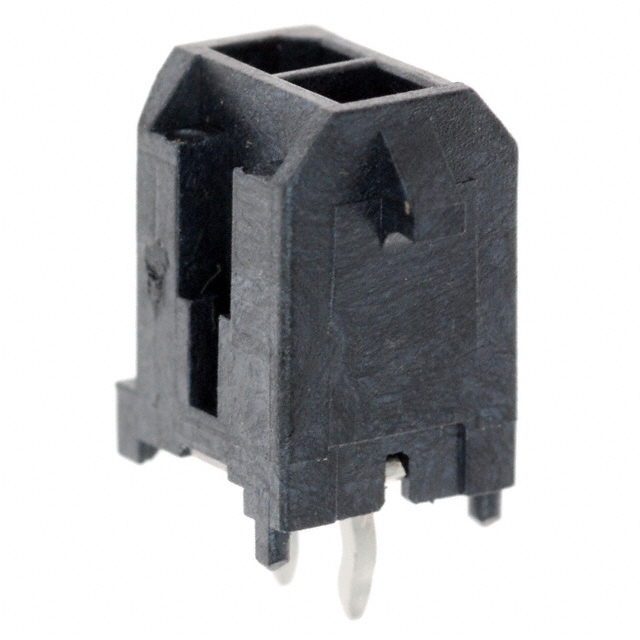

0430450213
Molex

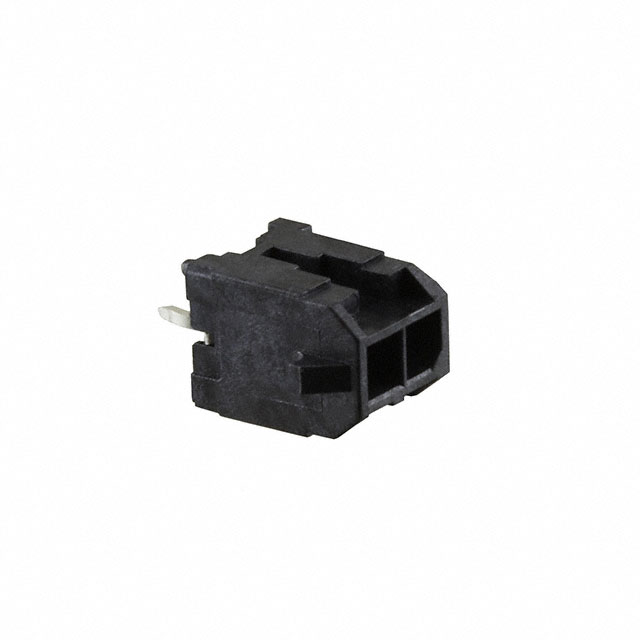

0430450214
Molex

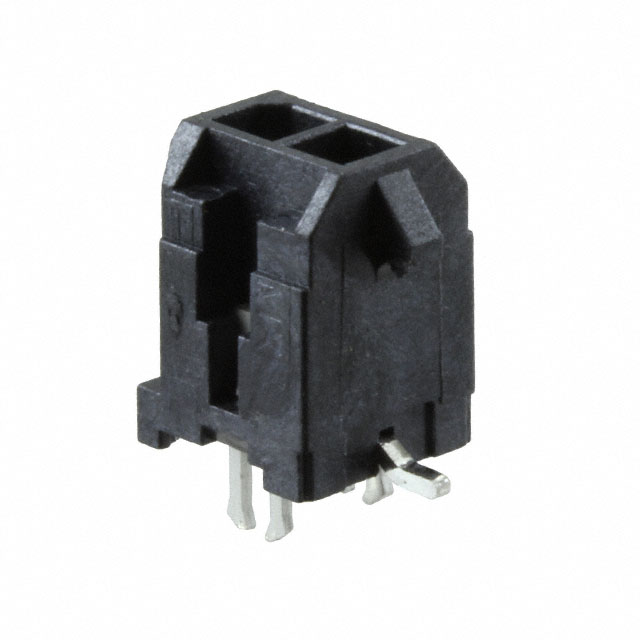

0430450215
Molex

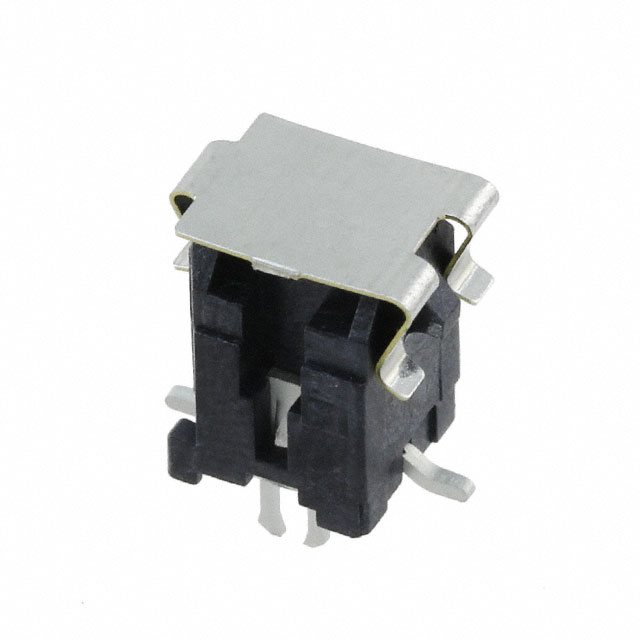

0430450216
Molex

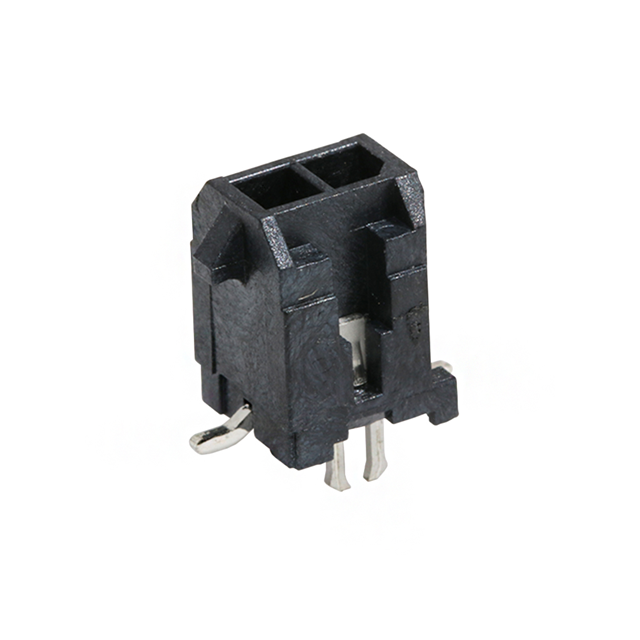

0430450217
Molex

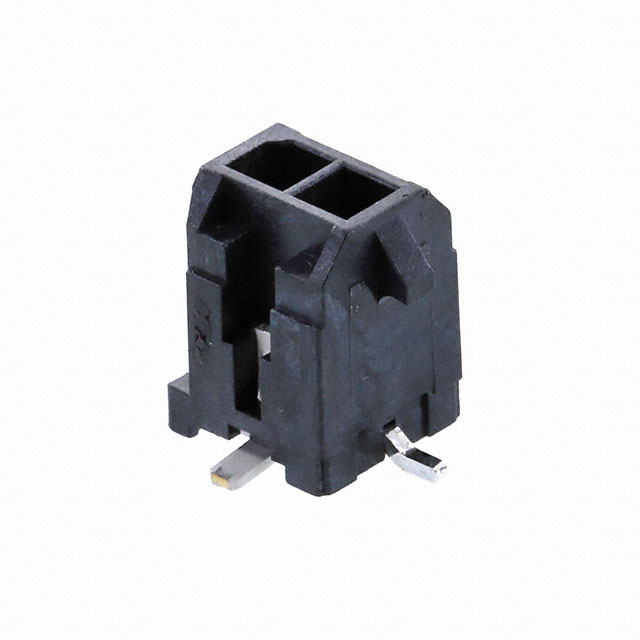

0430450218
Molex

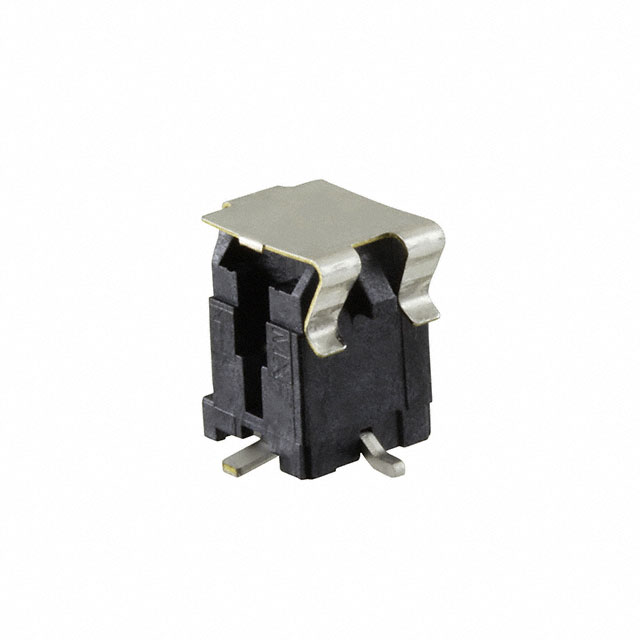

0430450219
Molex

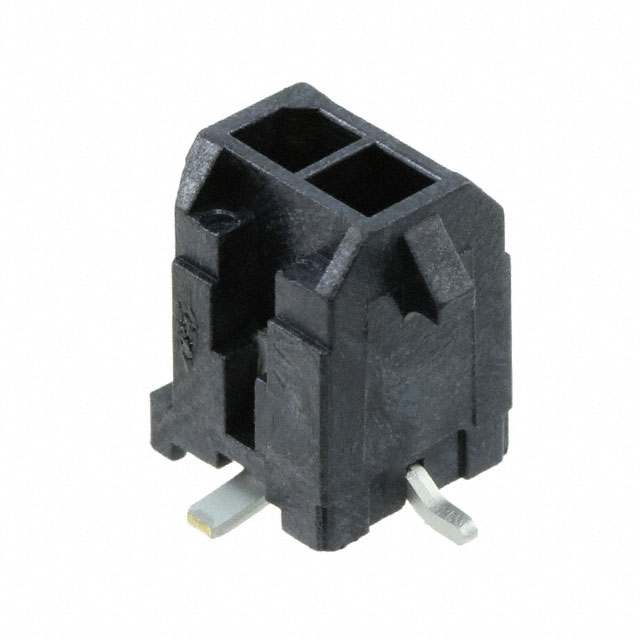

0430450220
