Product CatalogPart Number
0603AF-601XJRW
Manufacturer
CoilcraftDescription
FIXED IND 600NH 510MA 552MOHM SM
Datasheet
DatasheetPackage
Nonstandard
In Stock
15,045 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0603AF-601XJRW
0603AF-601XJRW
lmages are for reference only.Payment Methods
Delivery Services
600 nH Unshielded Wirewound Inductor 510 mA 552mOhm Max Nonstandard
Quick Inquiry
0603AF-601XJRW
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | 0603AF |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 600 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 510 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 552mOhm Max |
| Q @ Freq | 16 @ 7.9MHz |
| Frequency - Self Resonant | 540MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.071" L x 0.044" W (1.80mm x 1.12mm) |
| Height - Seated (Max) | 0.036" (0.91mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

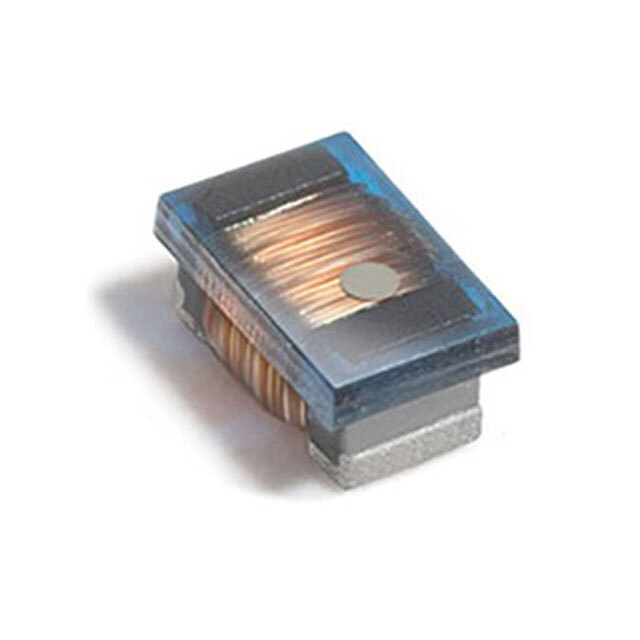

| Part Number | 0603AF-681XJRW | 0603AF-68NXJRW | 0603-101J | 0603-10NK |
| Manufacturer | Coilcraft | Coilcraft | Delevan | Delevan |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | FIXED IND 680NH 490MA 460MOHM SM | FIXED IND 68NH 880MA 150MOHM SMD | FIXED IND 100NH 400MA 580MOHM SM | FIXED IND 10NH 700MA 130MOHM SMD |
| Series | Coilcraft | Coilcraft | Delevan | Delevan |
| Packaging | Strip | Strip | Tape & Reel (TR) | Tape & Reel (TR) |
