0900PC15F0030001E
lmages are for reference only.0900PC15F0030001E
BALUN 862MHZ-928MHZ 50 0805
Datasheet0805 (2012 Metric), 10 PC Pad
15,903 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Balun 862MHz ~ 928MHz 50Ohm 0805 (2012 Metric), 10 PC Pad
0900PC15F0030001E
| Category | RF and Wireless - Balun - |
| Manufacturer | Johanson Technology Inc. |
| Series | 0900 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 862MHz ~ 928MHz |
| Impedance - Unbalanced/Balanced | 50Ohm |
| Phase Difference | 180° ±15° |
| Insertion Loss (Max) | 2.3dB |
| Return Loss (Min) | 10dB |
| Package / Case | 0805 (2012 Metric), 10 PC Pad |
| Mounting Type | Surface Mount |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |

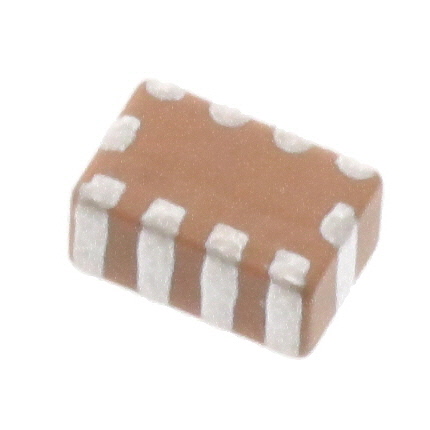

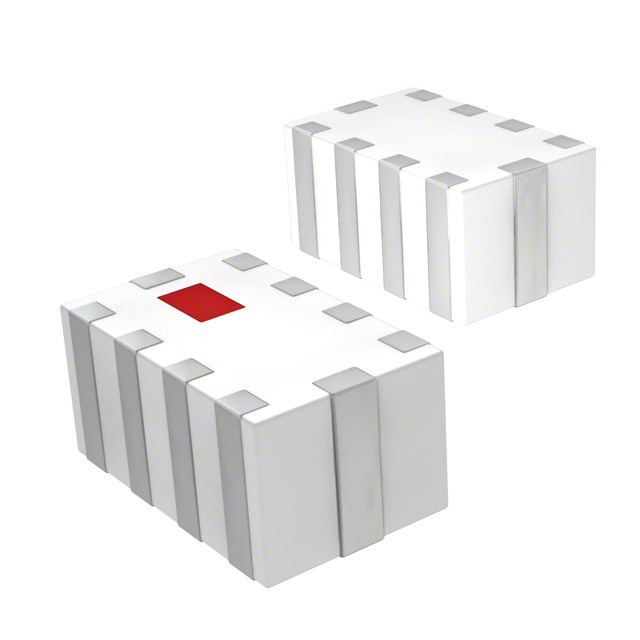

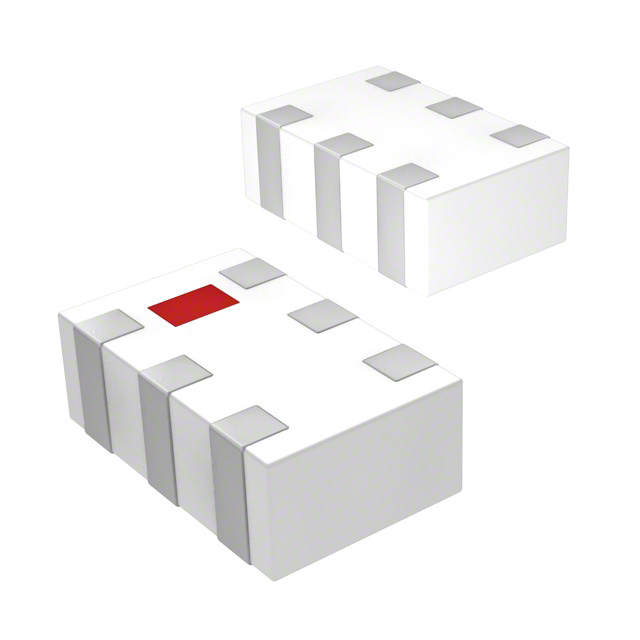

| Part Number | 0900PC15A0036001E | 0900PC15J0013001E | 0900PC16J0042001E | 0900BL15D0050001E |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BALUN 862MHZ-928MHZ 0805 | BALUN 868-928MHZ 0805 10 PC PAD | BALUN+FILTER FOR SEMTECH LR1110, | 900MHZ 1:2 BALUN |
| Series | 0900 | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
