0ZCN0055FF2A

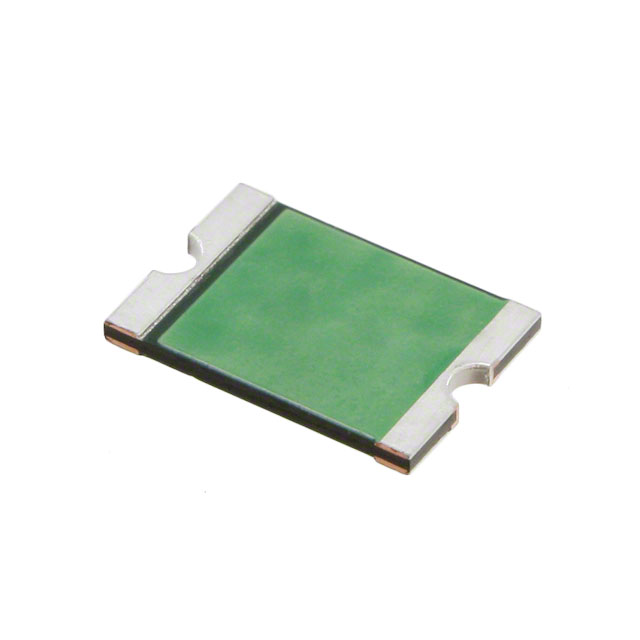

lmages are for reference only.0ZCN0055FF2A
PTC RESET FUSE 60V 550MA 2016
Datasheet2016 (5041 Metric), Concave
45,782 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 60V 550 mA Ih Surface Mount 2016 (5041 Metric), Concave
0ZCN0055FF2A
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Bel Fuse Inc. |
| Series | 0ZCN |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Hold (Ih) (Max) | 550 mA |
| Current - Trip (It) | 1.1 A |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2016 (5041 Metric), Concave |
| Size / Dimension | 0.200" L x 0.160" W (5.08mm x 4.07mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.067" (1.70mm) |
| Lead Spacing | - |
| Approval Agency | AEC-Q200, cURus, TUV, UL |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 200 mOhms |
| Resistance - Post Trip (R1) (Max) | 1 Ohms |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 0ZCN0030FF2C | 0ZCN0075FF2A | 0ZAF0005FF28 | 0ZAF0008FF28 |
| Manufacturer | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 60V 300MA 2016 | PTC RESET FUSE 60V 750MA 2016 | LINE VOLTAGE RATED SURFACE MOUNT | LINE VOLTAGE RATED SURFACE MOUNT |
| Series | 0ZCN | 0ZCN | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
